PARS - HPM SIRIUS PLUS - 3000/6 LH-1PL-PUN-PAR-2014-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Blechbearbeitungsmaschinen
- PARS HPM SIRIUS PLUS - 3000/6 LH-1 Punching Machine

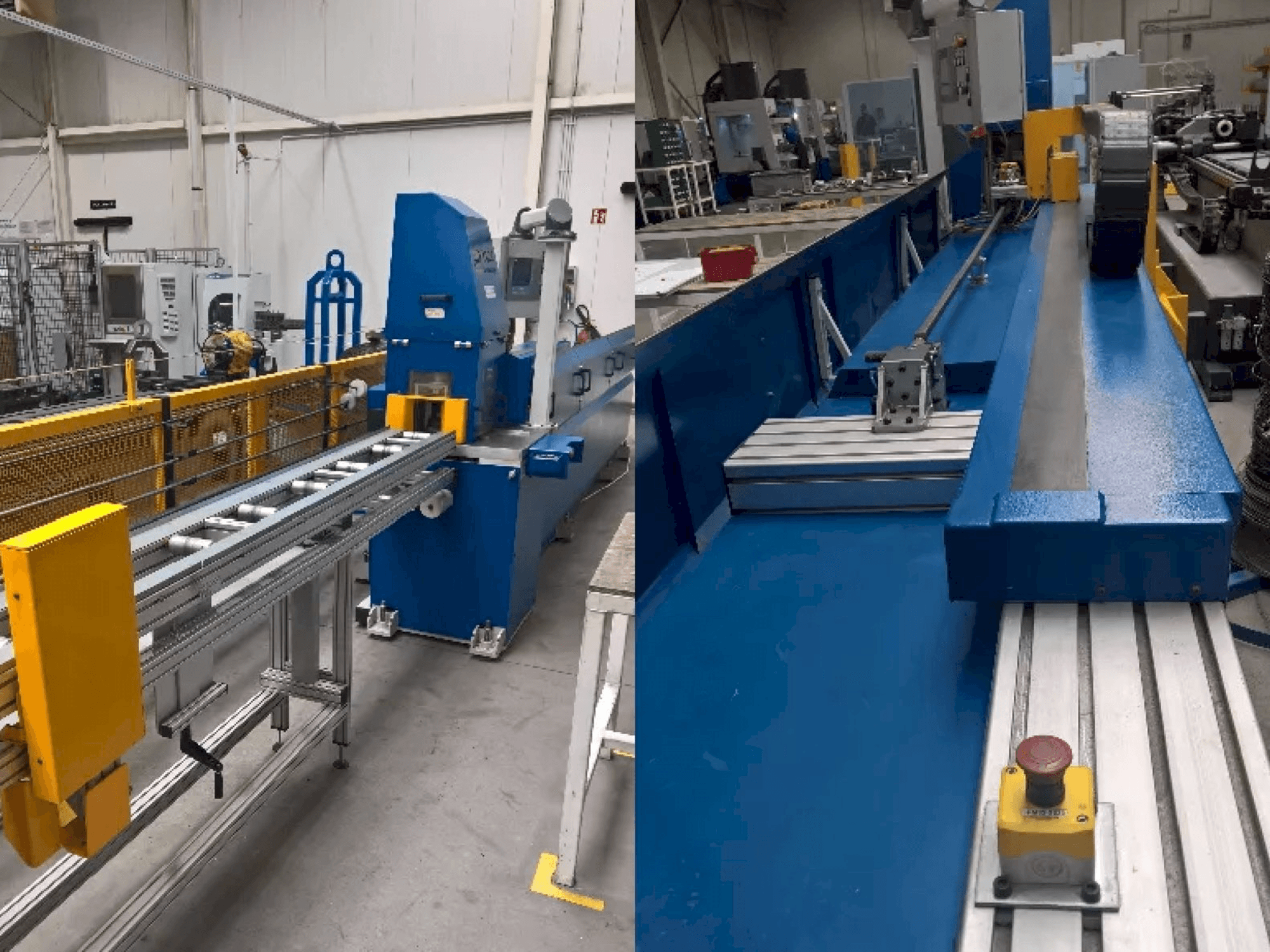

This PARS HPM SIRIUS PLUS - 3000/6 LH-1 Punching Machine was manufactured in Czech Republic in the year 2014. This machine works with a punching force of 151 kN and a maximum sheet thickness of 4 mm. Hydraulic machine with automatic profile feed by means of an electric linear drive with a magnetic coupling. The presented machine is the highest series of machines designed to work under high time load (3 shift work). The presented device is a new one, improved in 2012. machine model (the latest models of Siemens controllers). The machine is controlled fully automatically thanks to the CNC digital control. Depending on the equipment, the profiles can be round, rectangular, square, triangular, oval, type D or open. Thanks to the special hydraulic and electronic control solution (option), the press can work in both directions. This solution allows the use of special equipment to punch holes and pull out flanges in steel profiles.
Übersicht
- Hersteller: PARS
- jahr: 2014
- MODELL: HPM SIRIUS PLUS - 3000/6 LH-1
- anwendungstyp: Stanzen
- Standort: Polen
- maschinentyp: CNC-Stanzmaschine
- Marke Steuergerät: SIEMENS
Technische Daten - PARS HPM SIRIUS PLUS - 3000/6 LH-1
Steuerung
- Steuerungsmarke: SIEMENS
Maße
- Maschinentiefe: 2100 mm
- Maschinenhöhe: 1200 mm
- Maschinengewicht: 2100 kg
Bewegung
- X-Achsverfahrweg: 6000 mm
Technische Spezifikation
- Stanzkraft: 151 Kn
Zusätzliche Informationen
Machine Benefits
Qualitative Machine Benefits
- Material feed. Automatic, linear electric motor with separation from the external environment protection against punching profiles with a length outside the specified tolerance
- Measurement of the laser profile length
- Quick punching tool change system
- Turntable for pipes 0-180º
- Automatic lubrication, micron oil mist spray
- Program control of the range of movement of the hydraulic cylinder of the press
- Memory of punching programs
- Tool change time / 1 head approx. 15-20 min.
Technical Machine Benefits
- Possibility of punching in 4 sides of the profile and programming in one recipe yes
- Punching speed 0. 9-1. 2 s / hole
- Positioning accuracy up to ± 0. 1 mm between holes
- Profile / tube size 80xl00mm, d = 80mm
- Feeding / receiving table with hydraulic height adjustment
- Profile holder automatic, hydraulic
- Pneumatic blow-out of waste
- Remote machine diagnostics via the internet (vpn)
- Uploading punching programs via the company's internal network or usb memory stick
- The ability to edit programs on a pc
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
