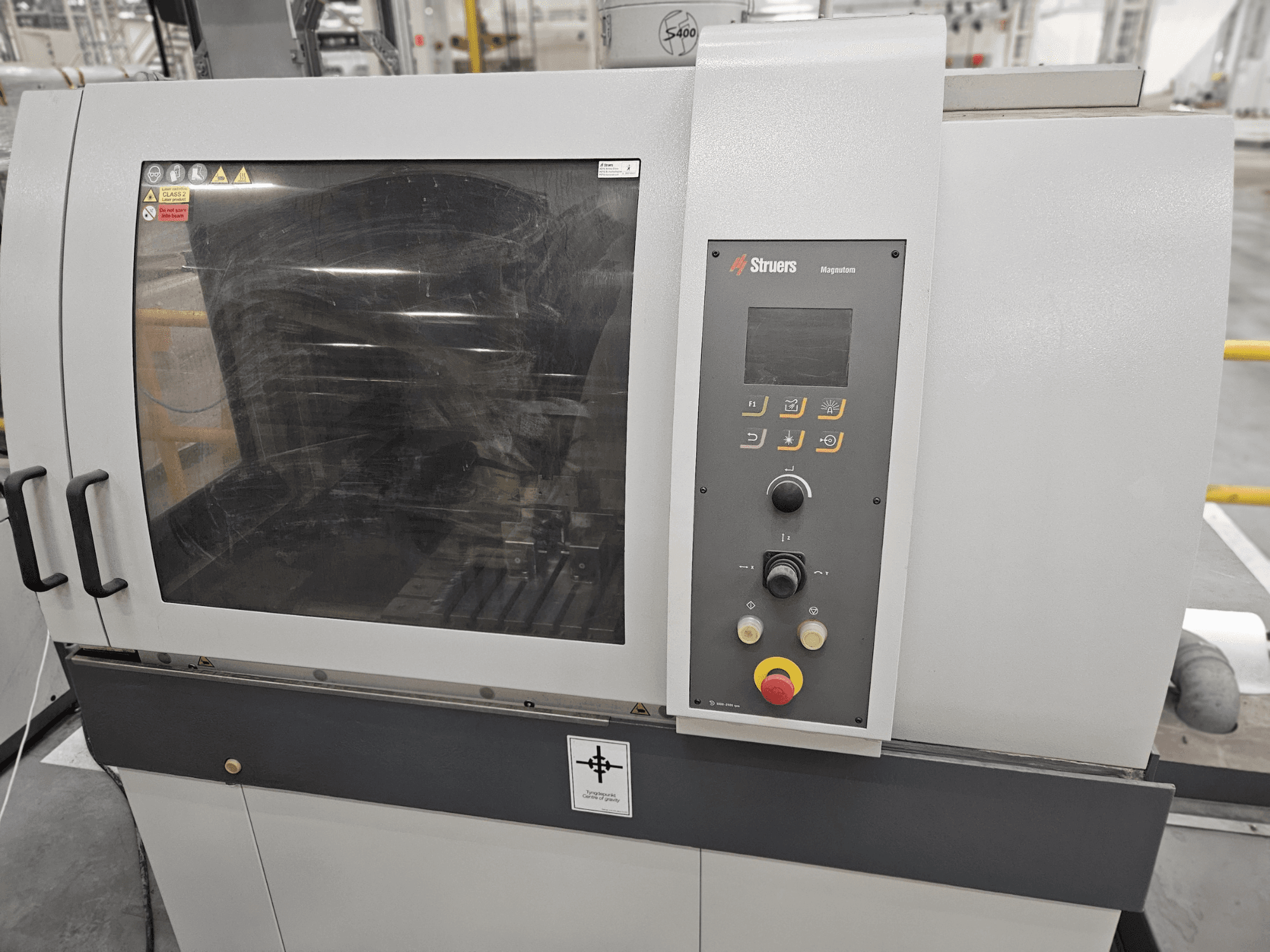

Circular Metal Saw manufactured in 2019. This Other Struers Magnutom 5000 features a cutting capacity for round material up to Ø 151 mm and rectangular material of 151 × 403 mm. It has a continuous power of 11 kW and a maximum positioning speed of 70 mm/s. Consider the opportunity to buy this Other Struers Magnutom 5000 Circular Metal Saw. Contact us for further details.
Übersicht
- Hersteller: Other
- jahr: 2019
- MODELL: Struers Magnutom 5000
- anwendungstyp: Sägen
- Standort: Polen
- maschinentyp: Kreissäge für Metall
Zusätzliche Informationen
Cutting capacity (Max) – Magnutom 400:
Round material: Ø 151 mm
Rectangular material: 151 × 403 mm
Flat material: 92 × 550 mm
Cutting motor:
Continuous power (S1): 11 kW
Intermittent power (S3): 16 kW
Cut-off wheels – Magnutom 400:
Wheel size (Diameter × Thickness × Bore): 432 × 3.0 × 32 mm
Rotational speed (rated load): 1000–1950 rpm
Cut-off wheels – Magnutom 500:
Wheel size (Diameter × Thickness × Bore): 508 × 3.5 × 32 mm
Rotational speed (rated load): 1000–1850 rpm
Positioning and feed:
Cut-off wheel positioning range:
Y-axis: 385 mm
Z-axis: 235 mm
Maximum sample height under cut-off wheel: No limitation
Maximum positioning speed:
Y-axis: 70 mm/s
Z-axis: 50 mm/s
Feed speed range: 0.1–10 mm/s
Cutting force: 0–1400 N
Cutting table (fixed, Magnutom 400/500): 827 × 781 mm
Cutting chamber:
Width: 1000 mm
Depth: 1206 mm
Height: 918 mm
Additional equipment
Optional X-table:
Maximum size: 942 × 781 mm
Minimum size: 673 × 781 mm
X-axis travel: 269 mm
T-slots: 12 mm, bi-directional
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
