- ➤ Used OMSG CAPRI 9/13 M For Sale | gindumac.com

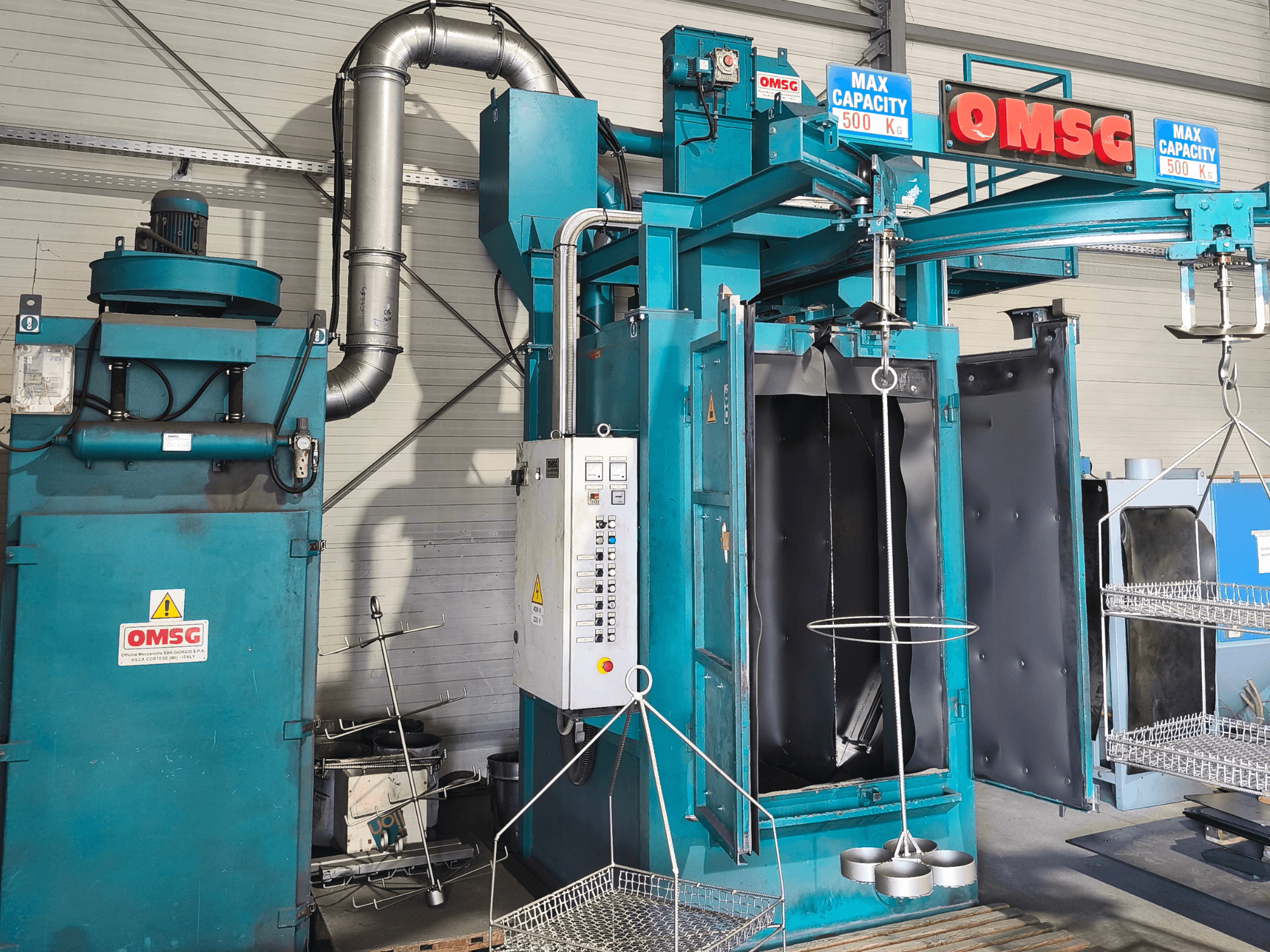

This OMSG CAPRI 9/13 M was manufactured in 2008. It features a working area with dimensions of 900 mm by 1300 mm and a suspension load capacity of up to 2 x 500 kg. Equipped with 2 x 5.5 kW turbines, replaceable blasting area armor, and a screw-driven blasting material collection system. It also includes an elevator, grain cleaning system, and a control cabinet-operated suspension movement. Contact us for more information about this machine.
Übersicht
- Hersteller: OMSG
- jahr: 2008
- MODELL: CAPRI 9/13 M
- Produktionsstunden: 3575
- anwendungstyp: Andere Blechbearbeitungsmaschinen
- Standort: Ungarn
- maschinentyp: Blechbearbeitungsmaschine
- Verfügbar ab: 09/03/2026
Technische Daten - OMSG CAPRI 9/13 M
Maße
- Maschinenhöhe: 1300 mm
Zusätzliche Informationen
Operating hours: 3,575 (continuously changing)
Suspension load capacity: max. 2 × 500 kg
Turbines/spray wheels: 2 × SG 350; diameter 350 mm; rotational speed 2,850 rpm; power 2 × 5.5 kW
Replaceable blasting area armor
Screw-driven blasting material (abrasive) collection system
Elevator
Grain/abrasive cleaning system with cascade fine cleaning
Control cabinet-operated suspension movement
Blasting material storage silo
Recommended blasting media: steel shot/steel grit 0.4–1.0 mm; 47–51 HRC
Electrical switch cabinet with cabling: system operation; built-in locking system; safety functions
Additional equipment
FAC 4/3 EX1 filter cartridge dust collector for explosive dust extraction
Air flow rate: 3,000 m³/h
Number of cartridges: 4 (polyester, grounded)
Electrical power: 4 kW
Dust emission: typically 2 mg/m³
Dry cartridge dust separator with JET cleaning system
Air duct between the device and the dust separator
ATEX: explosion class ST1 (steel parts with steel particles); permissible parameters: MZE > 10 mJ; KST < 200 bar·m/s; Pmax < 4.5 bar
Differential pressure controller (on-demand cartridge cleaning)
All metal parts grounded
Temperature sensor probe with high-temperature shutdown
Complies with VDI 2263 specifications
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
