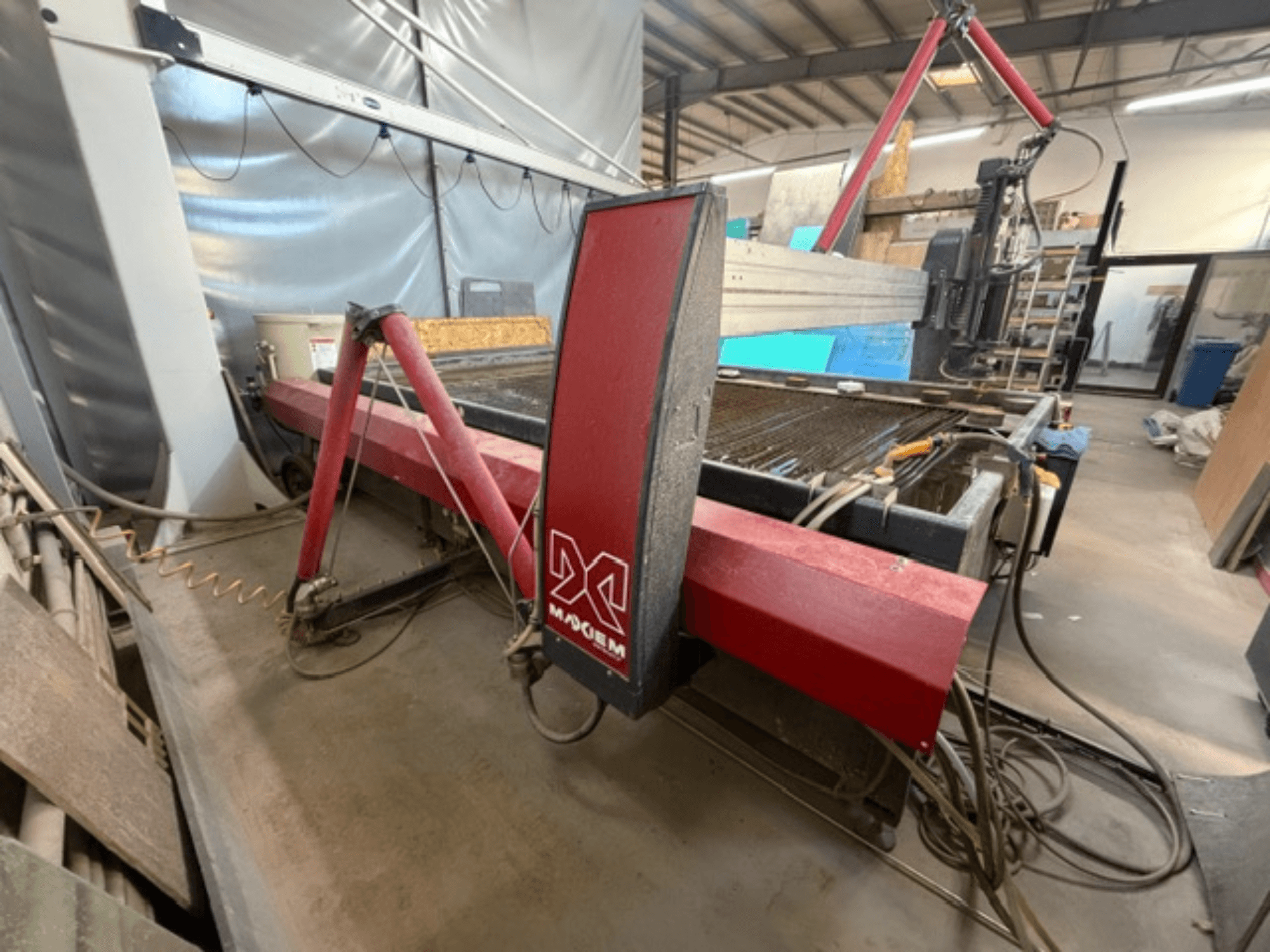

OMAX - MAXIEM 2030 30 HP AJet RO-CUT-OMA-2018-00001

Work envelope / cutting table:

• Cutting X-axis travel: 10’ 0’’ (3,061 mm)

• Cutting Y-axis travel: 6’ 7’’ (2,019 mm)

• X-axis table size: 12’ 2’’ (3,708 mm)

• Y-axis table size: 7’ 0’’ (2,134 mm)

• Material support slats: 4’’ × 14 ga galvanized steel (102 mm × 2 mm)

Performance:

• Traverse speed: 500 in/min (12,700 mm/min)

• Repeatability: ±0.001’’ (±0.025 mm)

• Accuracy: ±0.003’’ (±0.076 mm)

Pump & cutting head:

• Pump power: 30 HP

• Cutting head: MAXJET 5i with A-Jet (5-axis cutting)

• Nozzle life: Diamond orifice, approx. 500 hours (guaranteed)

Dimensions & weight:

• Operating weight: 20,500 lb (9,299 kg)

• Overall height: 8’ 10’’ (2,692 mm)

• Footprint (without controller): 14’ 1’’ × 14’ 1’’ (4,293 × 4,293 mm)

Slat bed:

• Standard configuration: 34 slats

• Maximum slat configuration (optional): 117 slats

• Maximum material load: 300 lb/ft² (1,465 kg/m²)

Standard features:

• Intelli-TRAX abrasive-jet linear drive system (1 micron resolution)

• Brushless servo motors and drives

• Abrasive feed system (15 lb capacity)

• Rugged catcher tank (300 lb/ft² load capacity)

• Industrial steel protection covers on X-axis

• Modular bridge control and power centers

• Low-noise pump and system design

• Windows-based control system

• IntelliMAX Standard Software (2 seats)

• Mobile control station with widescreen display

• No special foundation required

• Ergonomic full table access

• Made in the USA
