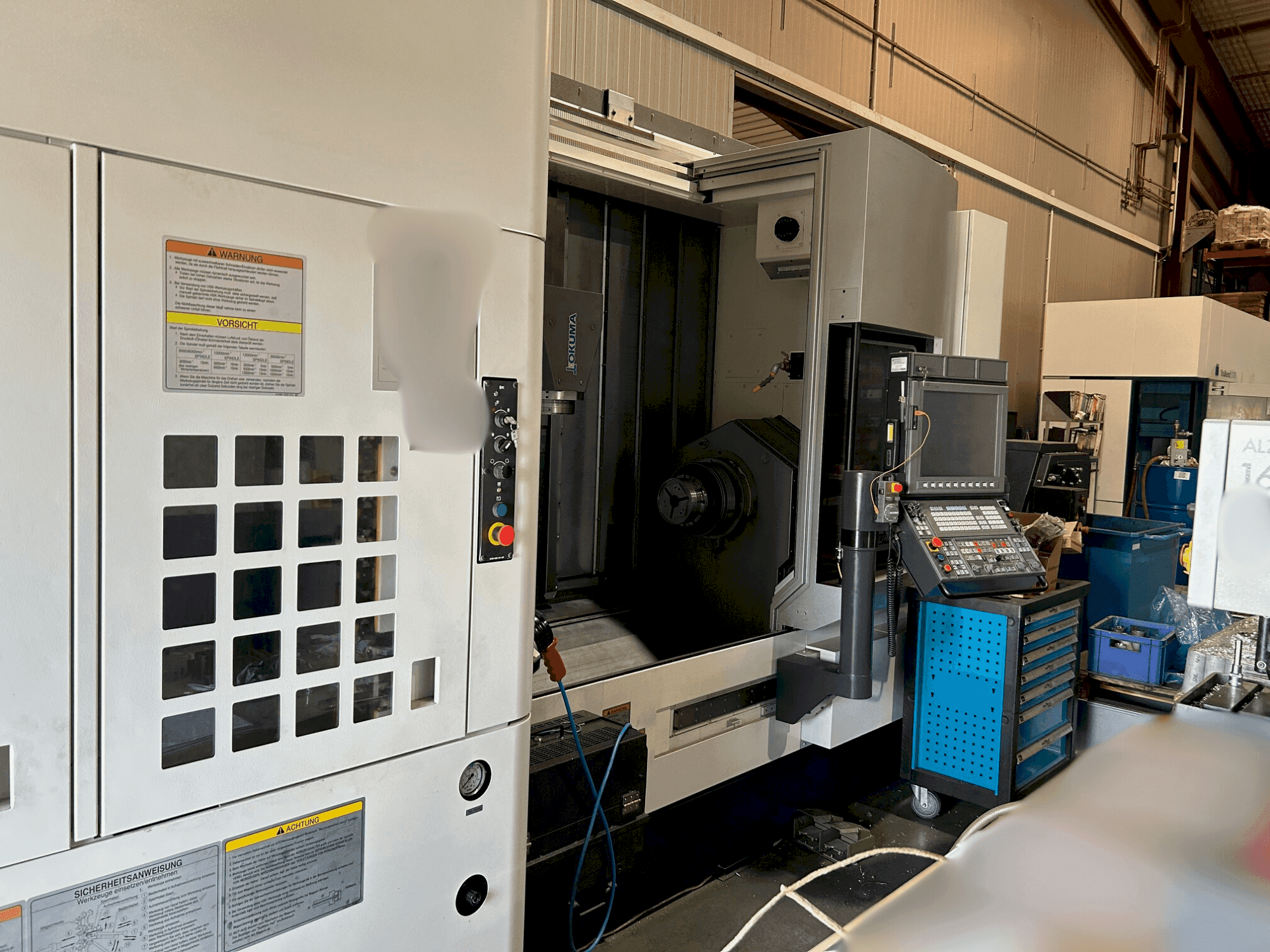

Okuma - Multus U3000 1SW 1500DE-MIL-OKU-2023-00001

Additional equipment

• Capto C6 tool system for H1 turret
• Internal coolant supply for rotating tools, pump with pressure max 20 bar including bag filter, external cooling of tool spindle, pump with pressure max 3 bar
• Tool magazine with 80 pockets
• External air supply and through the tool spindle for turning holders and rotating tools
• Hinge belt tensioner Interlit ISF
• Drum trough filter TMF 300 with clean tank 980
• Workpiece gripper programmable, for workpiece size ø 70 x 150 mm
• 80 tool positions
• Spindle front bearing diameter 140mm / Spindle bore diameter 91mm
• Counter spindle 420 Nm; 5000 1/minSpindle front bearing diameter 120mm

Machine Benefits

Qualitative Machine Benefits

• Robust and precise with a large floor space and significant mass for stability
• Tool spindle / 120 nm; 12,000 1/min / ikz; 20 bar / machine management macman
• Tool height compensation in y / circular thread milling x/z/y/b/ hi-cut pro high-speed control
• 10 workpiece zero points / electrical spindle orientation / capto c6 / hinged belt chip conveyor interlit isf
• Drum trough filter; clean tank 980l / interface bar loading magazine / workpiece collecting device for diameter 70 x 150mm
• Robot loader interface / in-process measuring renishaw rmp60 / control extension unit kit one-touch igf m d
• 3d machine mode

Technical Machine Benefits

• Swing over saddle: 650 mm
• Distance between centres: 1500 mm / turning length approx. 1500 mm
• Large swing over saddle (ø650 mm) and maximum machining diameter (650 mm)
• Extensive travel ranges for versatile machining operations
• Torque 427nm / h1 turret / b axis 0. 001° / y=250mm
• Hollow clamping cylinder diameter 86mm
• Spindle bore diameter 80mm / travelling on w-axis
• C axis 360°; positioning accuracy 0. 001° / y axis with stroke +125 / -125 = 250mm / b axis 240°; positioning in 0. 001°

Extra Information

Machine still under power
