Okuma - Macturn 250WDE-TUR-OKU-2006-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used Okuma Macturn 250W - Lathe For Sale | gindumac.com

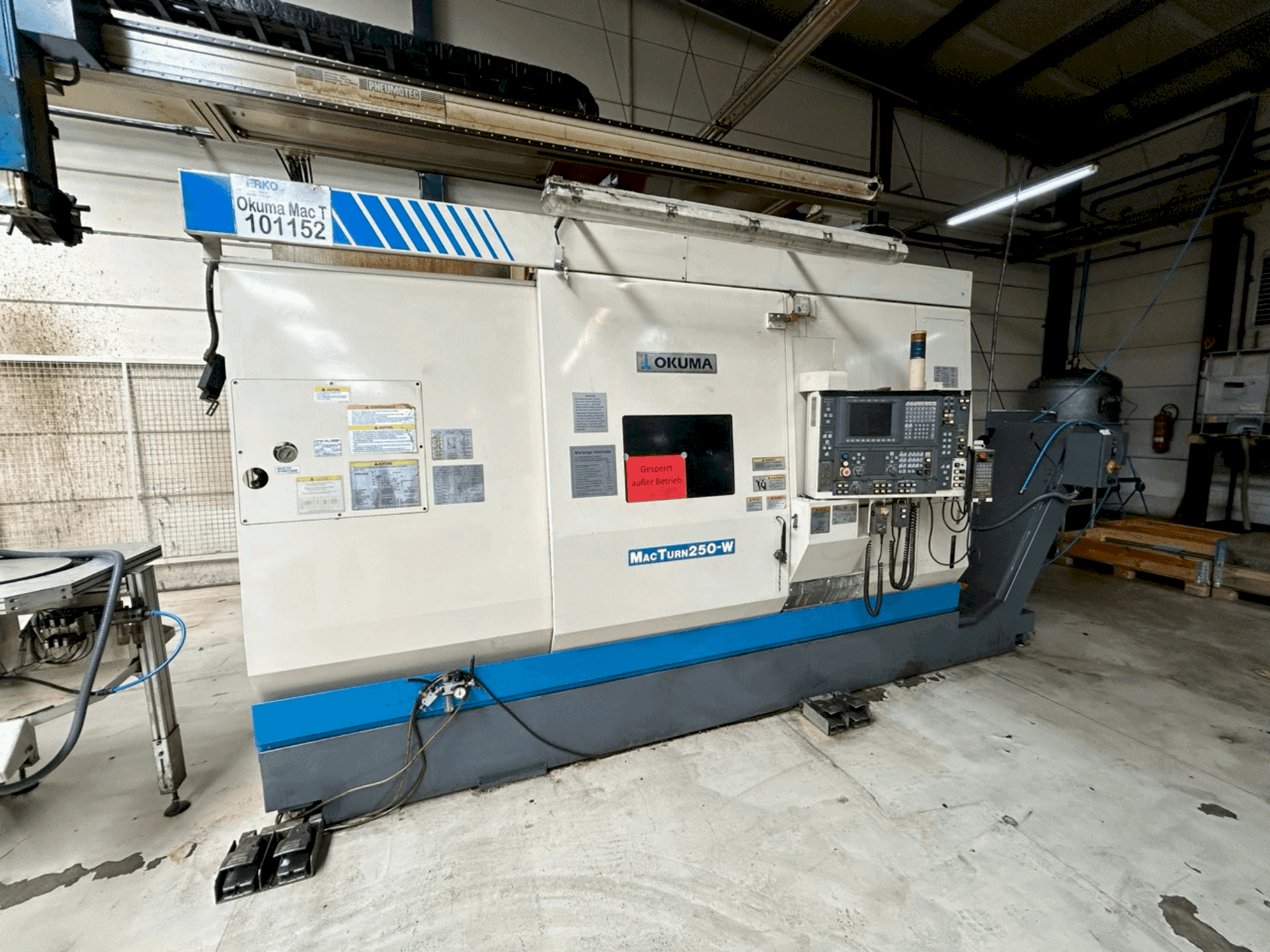

This 5-axis Okuma Macturn 250W lathe was manufactured in 2002. It features a swing over saddle of ø550 mm, a maximum machining diameter of ø550 mm, and a maximum work length of 1025 mm. The machine includes a 360-degree C-axis and a B-axis indexing angle of 1 degree. A great opportunity to buy this Okuma Macturn 250W lathe. Reach out for further details regarding this lathe.
Übersicht
- Hersteller: Okuma
- jahr: 2002
- MODELL: Macturn 250W
- anwendungstyp: Drehen
- Standort: Deutschland
- maschinentyp: Dreh-Fräszentrum
Technische Daten - Okuma Macturn 250W
Bewegung
- B-Achse Max: 1°
- B-Achse Min: 1°
- C-Achse: 360°
- X-Achsverfahrweg: 475 mm
- Y-Achsverfahrweg: 160 mm
- Z-Achsverfahrweg: 1170 mm
Technische Spezifikation
- Max. Werkstückdurchmesser: 550 mm
Zusätzliche Informationen
Machine Benefits
Technical Machine Benefits
Between centers: 1000 mm
Swing over saddle: 550 mm
Extra Information
Machine still under power / machine was delivered new 2006
Control System: The machine was initially planned with the U100L control, but was later changed to the E100L control (including soft- and hardware).
Sub-Spindle as W-Axis: Includes Hollow Clamping Device .
Drive Power: 11 kW for Sub-Spindle.
Milling Spindle (B-Axis):
B-Axis in 0.001-steps.
Tool Holder System: HSK63 (used for various holders).
Tool Changer (ATC): 44 Stations Tool Changer
Lower Turret: 12 Stations Revolver.
System: DIN 69880, Shank 40 mm.
Tool Measuring Device: Automatic swing-in
High-Pressure Cooling System:
Preparation for 70 bar High Pressure .
High-pressure pump 70 bar JHP20/70 (1 unit).
Interface for High Pressure (Kühlmittelhochdruck 70 bar) for various tool holders.
Workpiece Handling:
Handling system for loading and unloading.
Workpiece Catcher, programmable, pneumatic.
Measuring/Monitoring:
In-Process-Measuring System Renishaw.
Automatic Zero Point Shift Z-Axis and C-Axis.
Additional Measuring in Y-Axis
Screw-line Interpolation , also for thread milling.
Programmable tool life (progr. Werkzeugstandzeit) / call up sister tools
Software/Functions:
Free M-Functions M101-M104.
Additional M-Codes M340-M347 and M50-M51.
Software Water/Air through Spindle M50/M51.
Additional accessories and tools acailable.
