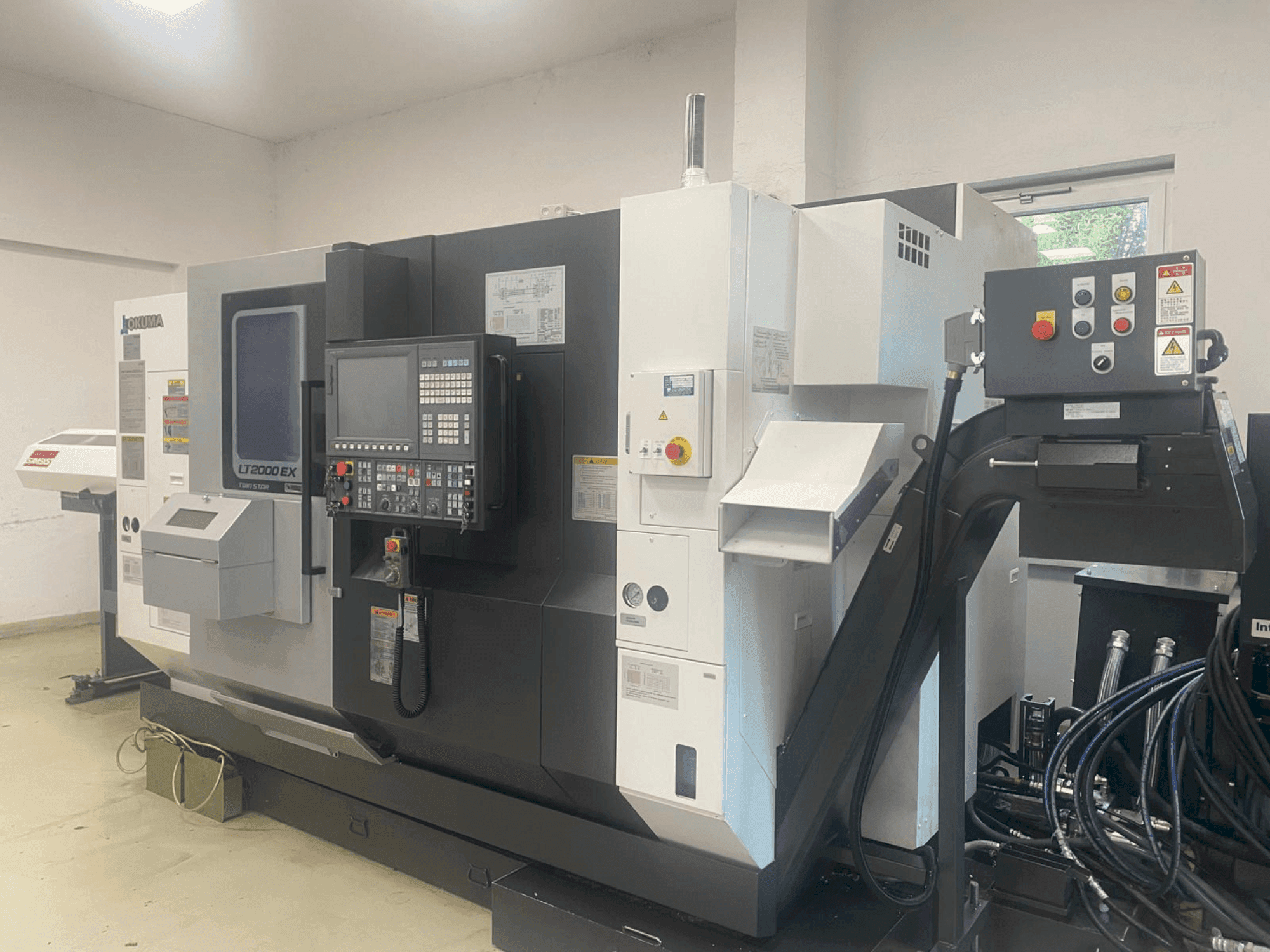

Okuma - LT2000-2T1MYDE-TUR-OKU-2022-00001

Additional equipment

• 22KW Okuma Spindle Main an Sub

• 70mm max Bar Capacity Main Spindle and Bar Feeder Samsys

• 2 turrets, each 16 stations, BMT55, live tools

• proven and extremely sturdy and stable OSP300

• 80 bar Okuma high pressure package (Japan factory fitted stronger
  seals), on both turrets. Ideal e.g. for deephole drilling in inox,
  titanium, inconel.

• In excellent conition, geometry very good. Okuma serviced and geometry
  report upon sale.

• Automation: Samsys short bar loader

• Extra Features: High-pressure pump & tank, high-pressure seal kit, workpiece removal arm, tool height correction in the Y-axis, coolant tank and pumps, detachable wired handwheel, tool monitoring, programmable face printing, and Hi-Cut Pro for driven tools

• two BMT55 revolvers with 16 stations each

Machine Benefits

Technical Machine Benefits

• Features: reduction of machine-related idle times, harmonic speed oscillation, automatic speed synchronization, and remote diagnostics during warranty

• Machine hours: 2268

• Z taper: 140 mm

• Front bearing diameter: 100 mm

• Torque: 183 nm

• Y-axis: y-axis in the upper turret with a movement range of +50/-45 = 95 mm

• Helical interpolation: available with x/y/z linear axes, including eccentric milling with x/y/c axes

• Tool monitoring system

• Tool corrections: 96 tool corrections per turret

Extra Information

• Spindle Orientation: Electronic spindle orientation +/- 0.1 Memory: 2 GB part program memory with a maximum program length of 2 MB Data Management: MacMan machine management with integrated production data acquisition Control Unit Control System: CNC double turning center with a control system featuring OSP suite with numerous apps and ECO suite energy-saving features Display: 15" color LCD TFT with 3D color graphics and a multi-touch screen/panel Operating System: Second Windows operating system for operation and data communication Controller Ports: 2 USB 2.0 ports on the control panel Communication: Ethernet/LAN interface with browser and DNC-T1 for program transfer Turret Tool Stations: Upper and lower turrets each with 16 driven tool stations Motor Power: 5.5 kW per motor Speed Range: 50 - 6000 rpm Torque: 22.5 Nm Number of axes Upper turret: X/Y/Z/C (turret can be used both left and right, of course) Number of axes:Sub-spindle (right): lower turret XZC (turret can be used both left and right) chuck main spindle (left) Hainbuch mini 'Axzug' 65 (pull) Maximum clamping diameter on the main chuck (65 mm) chuck secondary spindle yes, Hainbuch mini 'Axfix' 65 (fixed, ideal for part relay into right hand spindle) Maximum clamping diameter on the main chuck (65 mm) Transformer included Inspection is available from 2023. Machine is in great condition and within geometry Maintenance protocol is available


• 2x 22 kW PREX spindle, spindle passage on the left side sufficient for 70 mm bars. Mounted chucks: Hainbuch 65 Axzug and Axfix.

• 2x 16-station turret, BMT55, top left with Y

• Samsys short bar loader for 70 mm bars

• Removal arm/robot

• High-pressure package: high-pressure pumps and ceramic seal kit retrofitted in Japan as an extra

• Extensively equipped control system, already excellent as standard with Okuma (compared to the Fanuc 31i-B5 and Siemens 840D that we have elsewhere)
