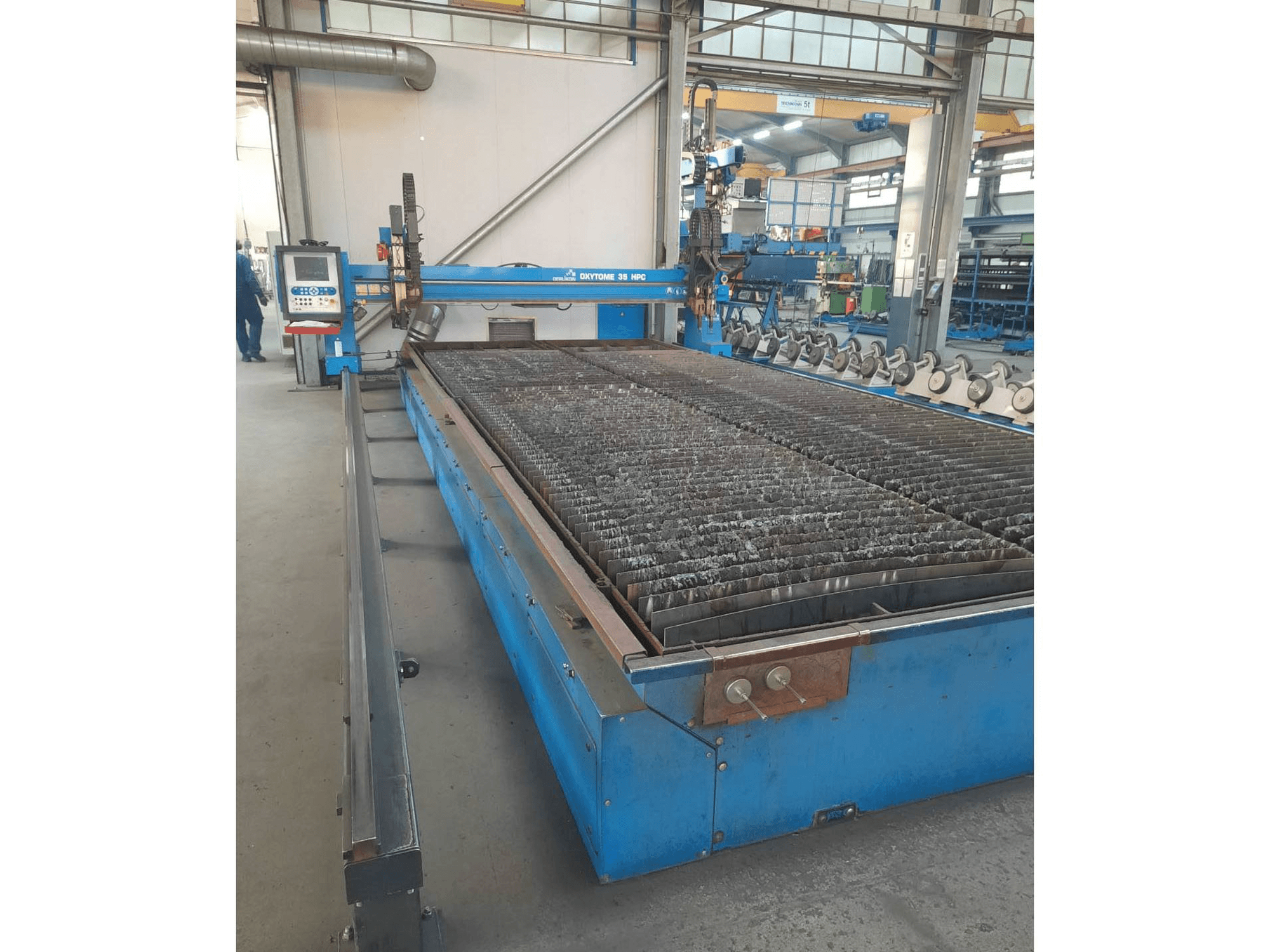

Oerlikon - Oxytome 35 HPCDE-LAS-OER-2008-00001

Additional equipment

• incl. software, extraction table and filter system

Machine Benefits

Qualitative Machine Benefits

• The new system offers you the following advantages: simplest handling all cutting parameters, gas pressures, etc. For oxyfuel and plasma technology are automatically set and controlled by the cnc control system.
• Highest safety the cnc control takes over and manages the complete oxyfuel process cycle (preheating, piercing and cutting).

Technical Machine Benefits

• Sheets 3. 000 x 4. 000 mm
• This precisely tuned machine concept for high-precision applications offers cutting widths from 2,000 mm to 4,000 mm.
• The following cutting thicknesses are covered: 6 torches for max. 80 mm, 2 torches for max. 200 mm, 4 torches for max. 120 mm, 1 torch for max. 300 mm
• The basic equipment includes: 1 piece cutting portal with fixed control panel and membrane keyboard, positioning speed 15. 000 mm/min, working speed up to 10. 000 mm/min, basic track (4,500 mm long) with 3,000 mm cutting length, energy supply system for basic track 1 piece torch support po150 e (to hold 1 oxyfuel torch)

Extra Information

Table with ventilation system not included
