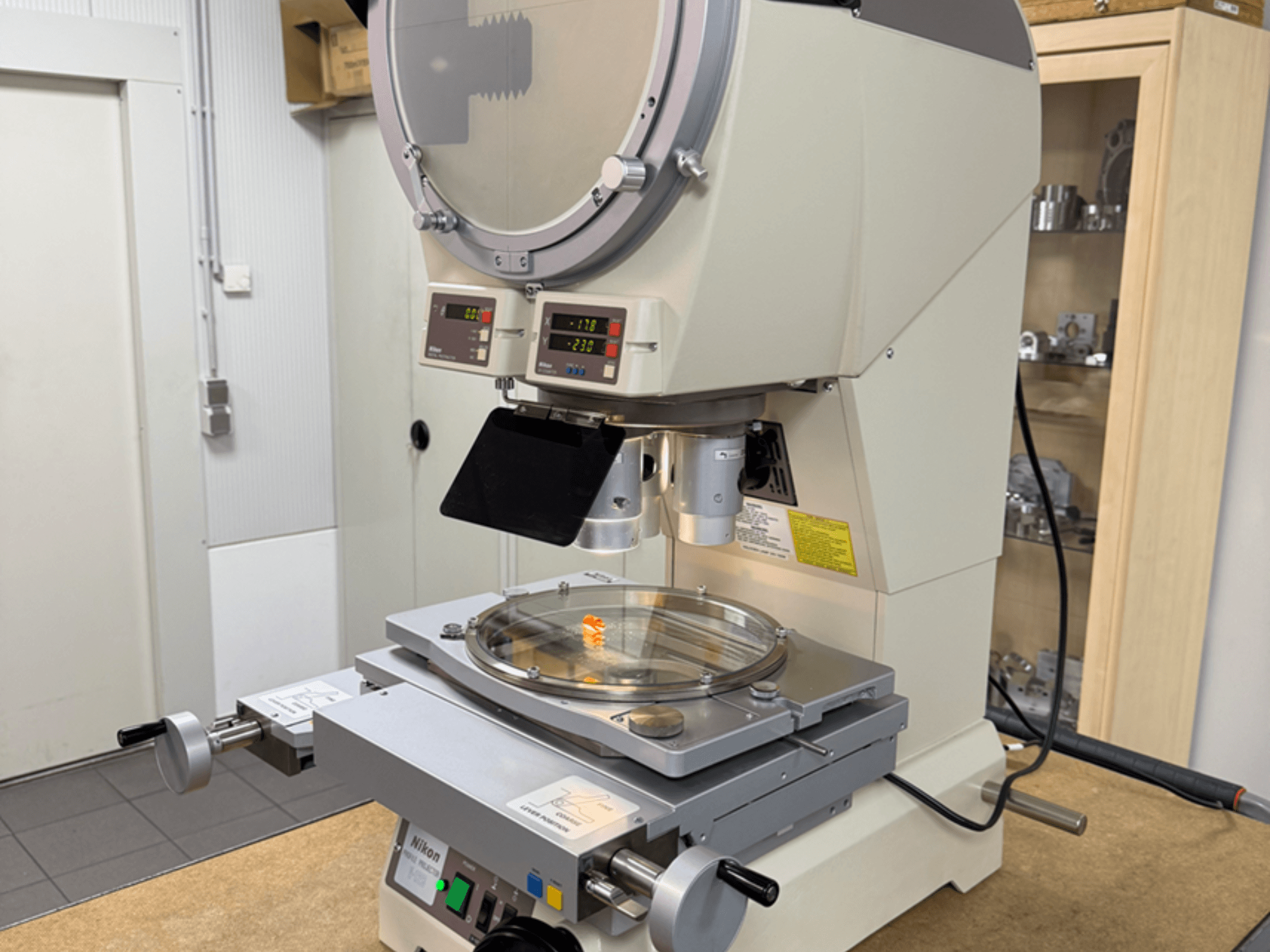

NIKON - V-12BDCDE-MEA-NIK-2019-00001

Laterally correct image (no reflection) for easy evaluation

3-position objective turret for quick magnification selection

Magnifications: 10×, 20×, 50×, 100×

Screen diameter: 305 mm

Measuring stage travel: 250 × 150 mm (8" × 6"); rotary stage type 2

Maximum workpiece height: 100 mm

Integrated XY and angle digital display for precise readings

Illumination: combination of contour (transmitted) and vertical (incident) light

Light source: 24 V / 150 W halogen for high-quality projection

4-fold condenser in transmitted light with automatic illumination adjustment to magnification

Optics: semi-transparent mirror for clear incident-light image; telecentric lenses for distortion-free imaging across the full field

Focusing via movable optical head (stage remains stable to avoid measurement deviations)

Measurement accuracy: contour illumination ±0.1%; inclination/area illumination ±0.15%

Solid construction with precision-engineered guides; workshop-ready and easy to operate

Proven Nikon quality, made in Japan

Large projection area suitable for medium-sized and complex workpieces

Quick magnification changes via turret

Ideal for production control, toolmaking, precision mechanics, and sample inspection

Flexibly upgradeable with digital interfaces or SPC connectivity
