MORI SEIKI - NZ2000ES-TUR-MOR-2008-00003
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used MORI SEIKI NZ2000 For Sale | gindumac.com

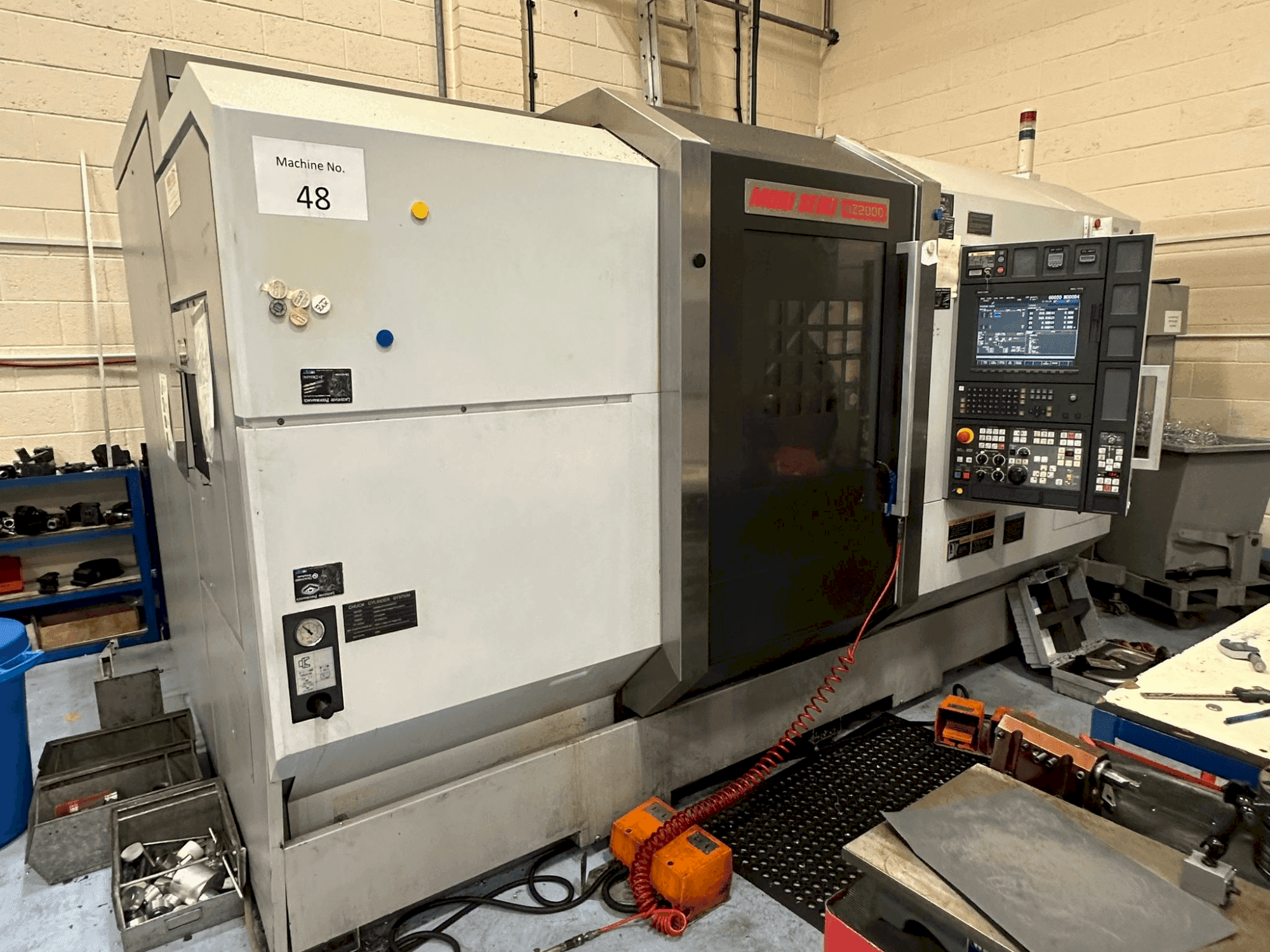

This 9-axis MORI SEIKI NZ2000 was manufactured in 2008, offering advanced capabilities for precision horizontal turning. Ideal for complex machining tasks, this machine ensures efficient production with its multi-axis configuration. Consider the opportunity to buy this MORI SEIKI NZ2000 horizontal turning machine. Contact us for more information about this machine.
Übersicht
- Hersteller: MORI SEIKI
- jahr: 2008
- MODELL: NZ2000
- anwendungstyp: Drehen
- Standort: Spanien
- maschinentyp: Mehrspindeldrehmaschine
Technische Daten - MORI SEIKI NZ2000
Maße
- Maschinengewicht: 8300 kg
Bewegung
- Anzahl der Achsen: 9
Technische Spezifikation
- Spindelleistung: 22 kW
- Spindeldrehzahl: 5000 RPM
Zusätzliche Informationen
Additional equipment
- Automatic Conversational Programming System: Mapps 4
- Automatic Effort Control and Tool Consumption Monitoring
- Oil Cooler for Both Spindles
- Double Pedal for Chuck Opening and Closing
- Interface for Bar Feeder Installation
- Automatic Rear Part Catcher (Special Clamp for Long Parts)
- Side Chip Conveyor (Hinged Type)
- Communication Ports: USB, PCMCIA Card, RS-232
- Includes Electrical Transformer, Documentation, Parts List, Electrical Schematics, Programming, and Operation Manual
Machine Benefits
Technical Machine Benefits
- C-axis resolution: 0. 001°
- Maximum swing diameter: 320 mm // maximum bar diameter: 65 mm
- Two overlapping turrets // both turrets with 16 stations each, all motorized // possibility of setting up to 32 tools per turret
- Maximum distance between main spindle and sub-spindle: 1130 mm
- Sub-spindle speed: 5000 rpm // live tool speed: 6000 rpm
- Spindle size: a2-6
- Cutting torque: 340 nm
- Milling motor power: 7. 5 kw
- Turning length: 810 mm
- Maximum bar diameter: 65 mm
Extra Information
Important: Never Used with a Bar Feeder, Only for Machining Aluminum Prototypes Machine Can Be Inspected in Operation
