Mitutoyo - Crysta-Apex S9166 AT-MEA-MIT-2018-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used Mitutoyo Crysta-Apex S9166 For Sale | gindumac.com

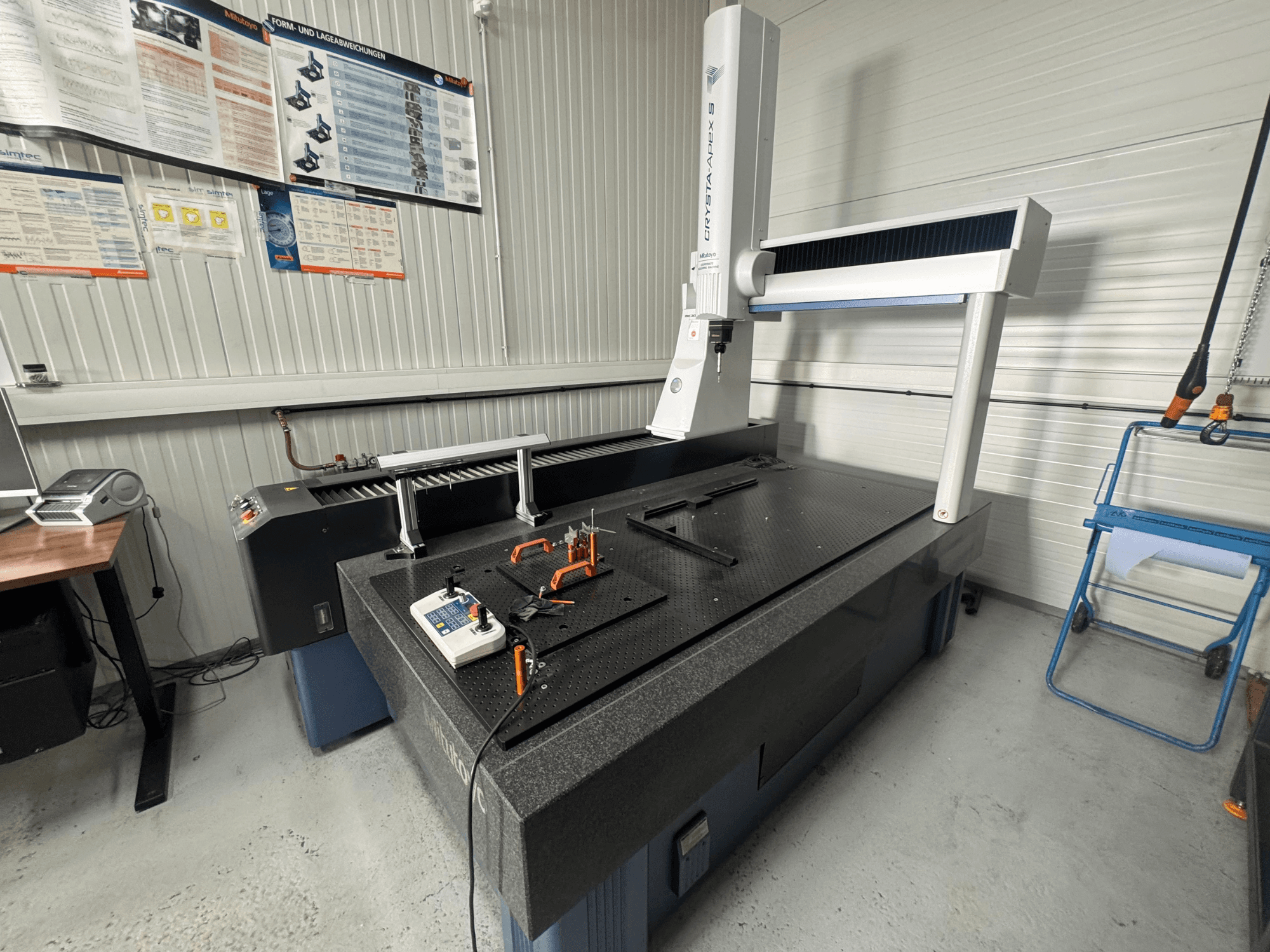

This 3-axis Mitutoyo Crysta-Apex S9166 was manufactured in 2018. It features a comprehensive measuring range with X-axis at 900 mm, Y-axis at 1600 mm, and Z-axis at 600 mm. Equipped with CNC control and MCOSMOS-3 CNC V4 software, it includes a Renishaw PH10MQP R2 indexing probe head and SP25M scanning probe system. Additional equipment includes eco-fix CMM fixturing systems and a high-capacity CEE power cable. Consider the opportunity to buy this Mitutoyo Crysta-Apex S9166 CMM machine. Contact us for more information.
Übersicht
- Hersteller: Mitutoyo
- jahr: 2018
- MODELL: Crysta-Apex S9166
- anwendungstyp: Messung
- Standort: Österreich
- maschinentyp: Koordinatenmessgerät
Technische Daten - Mitutoyo Crysta-Apex S9166
Maße
- Maschinengewicht: 2947 kg
Bewegung
- Anzahl der Achsen: 3
- X-Achsverfahrweg: 900 mm
- Y-Achsverfahrweg: 1600 mm
- Z-Achsverfahrweg: 600 mm
Zusätzliche Informationen
Control & software: CNC control; MCOSMOS-3 CNC V4
Probe system: Renishaw PH10MQP R2 indexing probe head; SP25M scanning probe system; multiple stylus holders (SH25-2); starter probe kit (M3); ceramic calibration sphere Ø20 mm (with factory certificate)
Option: Gear measurement option purchased in 2021
Condition/usage: Machine was in the quality control room for final inspection
Mounting plates: All aluminum mounting plates installed on the measuring machine
Additional equipment
Workstation (PC, keyboard, mouse)
2× HP 23" monitors (1920 × 1080)
USB dongle / Wibu-Box license
eco-fix CMM fixturing system (kits S and L)
Quick-rail base kit
J/S Box-M Type A
High-capacity CEE power cable
30 additional individual aluminum mounting plates
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
