This Mitsubishi Electric SG12M die-sinking EDM machine was manufactured in 2020. It features a robust 3750 kg weight, with a maximum workpiece weight capacity of 1000 kg. The machine includes a dielectric fluid chiller unit and a dual paper filter system, ensuring optimal operational conditions. The working tank has an automatic elevation system and hinji open-door for ease of use. If you are looking to get high-quality die-sinking capabilities, consider the Mitsubishi Electric SG12M machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: Mitsubishi Electric
- jahr: 2020
- MODELL: SG12R
- anwendungstyp: Erodieren
- Standort: Litauen
- maschinentyp: Senkerodiermaschine
Technische Daten - Mitsubishi Electric SG12R
Maße
- Maschinentiefe: 1920 mm
- Maschinenhöhe: 2420 mm
- Maschinengewicht: 3750 kg
Bewegung
- X-Achsverfahrweg: 400 mm
- Y-Achsverfahrweg: 300 mm
- Z-Achsverfahrweg: 300 mm
Zusätzliche Informationen
Machine Benefits
Technical Machine Benefits
- Distance between table and electrode mounting surface: 200-500 mm / 300-600 mm
- Max. Electrode weight: 50 kg
- Working tank method: automatic elevation system / hinji open-door
- Working tank inner dimensions (w x d x h): 950 x 700 x 450 mm / 1050 x 700 x 450 mm
- Fluid level adjustment range (from top of table): 60-400 mm / 210-400 mm
- Max. Workpiece dimensions (w x d x h): 900 x 650 x 350 mm
- Table dimensions (w x d): 700 x 500 mm
- Distance between floor and top of table: 900 mm
Extra Information
Media Dielectric Fluid Reservoir Tank Capacity: 360 liters / 550 liters Initial Dielectric Fluid Supply Amount: 470 liters / 590 liters Filtering System: Paper filter x 2 Dielectric Fluid Chiller Unit: Included
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
Philipp Gubisch
Zahlungsoptionen
Vorkasse
Asset-Finanzierung
Ähnliche Produkte zu Mitsubishi Electric SG12R
EDM 310 MF20
Exeron - Senkerodiermaschine
Agie Charmilles CUT E 350
+GF+ - Drahterodiermaschine
Agie Charmilles CUT 30P
+GF+ - Drahterodiermaschine
AQ300L
Sodick - Drahterodiermaschine
SL600Q
Sodick - Drahterodiermaschine
Agie Charmilles Form E600
+GF+ - Senkerodiermaschine
SL400Q
Sodick - Drahterodiermaschine

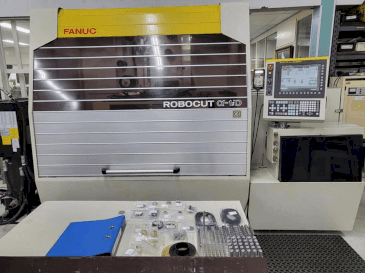

Robocut alpha-C400iB
