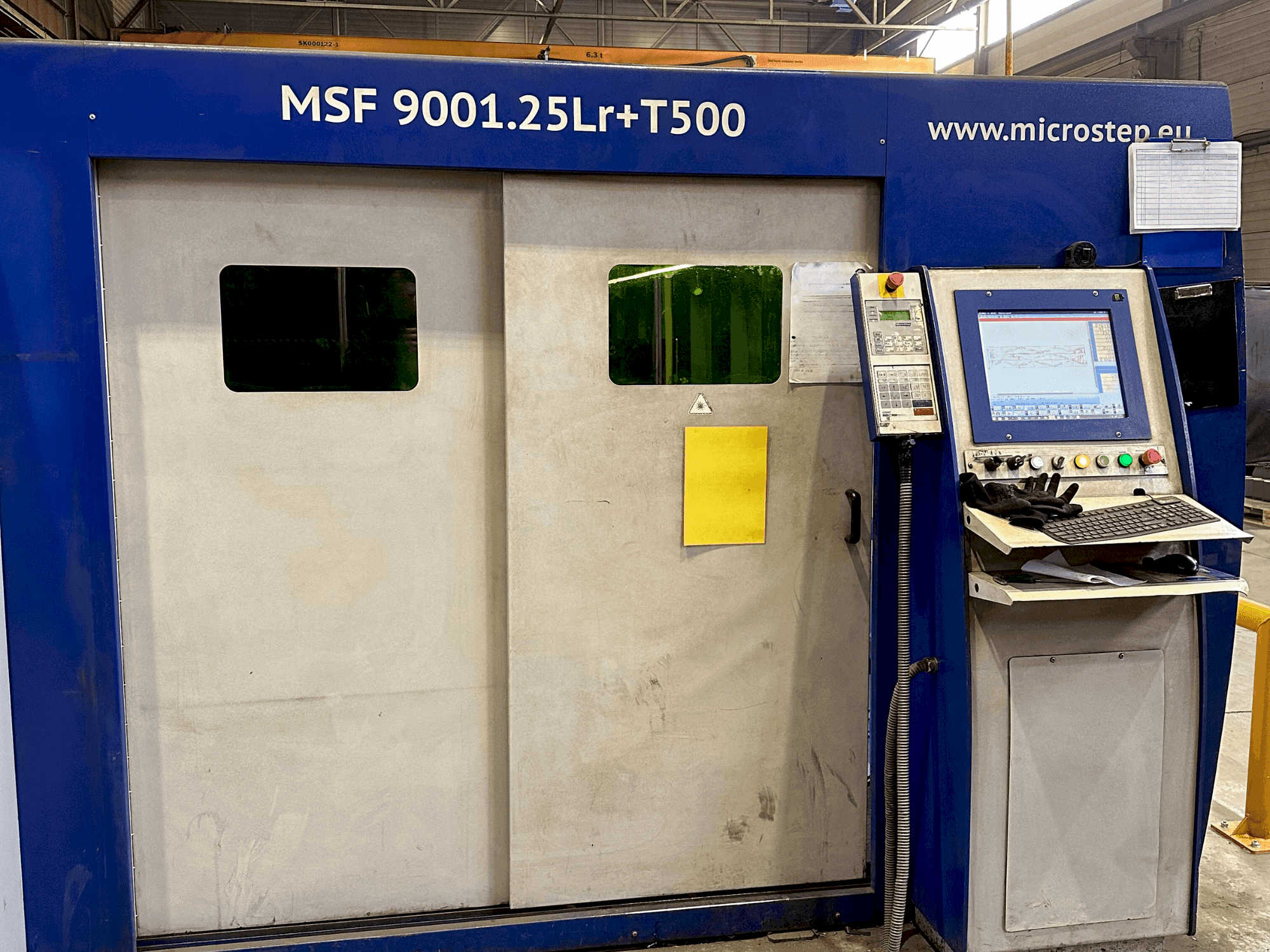

MicroStep - MSF 9001.25Lr+T500 (2015)SK-LAS-MIC-2015-00001

Additional equipment

• Extraction: Donaldson DFPR08
• Lubrication system: automatic
• Beam guidance: via light cable
• Automatic lower slag conveyor
• 1x slag drawer
• Suction segments under the grate
• Pallet table changer 2 tables
• Calibration station for bevel cut rotator

Machine Benefits

Qualitative Machine Benefits

• The maximum cutting capacity of the source with a power of 10kw (up to structural steel of 25 mm)
• Positioning speed: up to 130m/min when moving in the direction of one axis; 140m/min when moving in both axes
• Automatic nozzle cleaning
• Automatic targeting of sheet rotation
• Adaptive cutting – the head adapts itself to the sheet (e. G. Corrugated sheet)
• Remote support
• Protective glass against lens contamination
• Camera in the head
• 0-point laser sight
• At 6kw source before the retrofit action → from 1/1/2018 to 31/3/2022 → number of hours cut 18001h after upgrading to 10kw source → from 1/4/2022 to 28/2/2024 → number of hours cut 6391h

Technical Machine Benefits

• 3d bevel head cutting up to 50°
• Working area 9000 mm x 2500 mm (sheet 9x2. 5 m)
• Source power: 10kw
• Source: nlight corona-cfx-10000
• Head: thermacut ex-trabeam-pro-360 komplet

Extra Information

Touch LED panel // Complete technical documentation // Software for programming the machine 2x Asper license // Consumable parts, e.g. (nozzles, head glasses, rings...) // Possible to Bevel cut of rounds, pipes, profiles in separated station near sheet cutting
