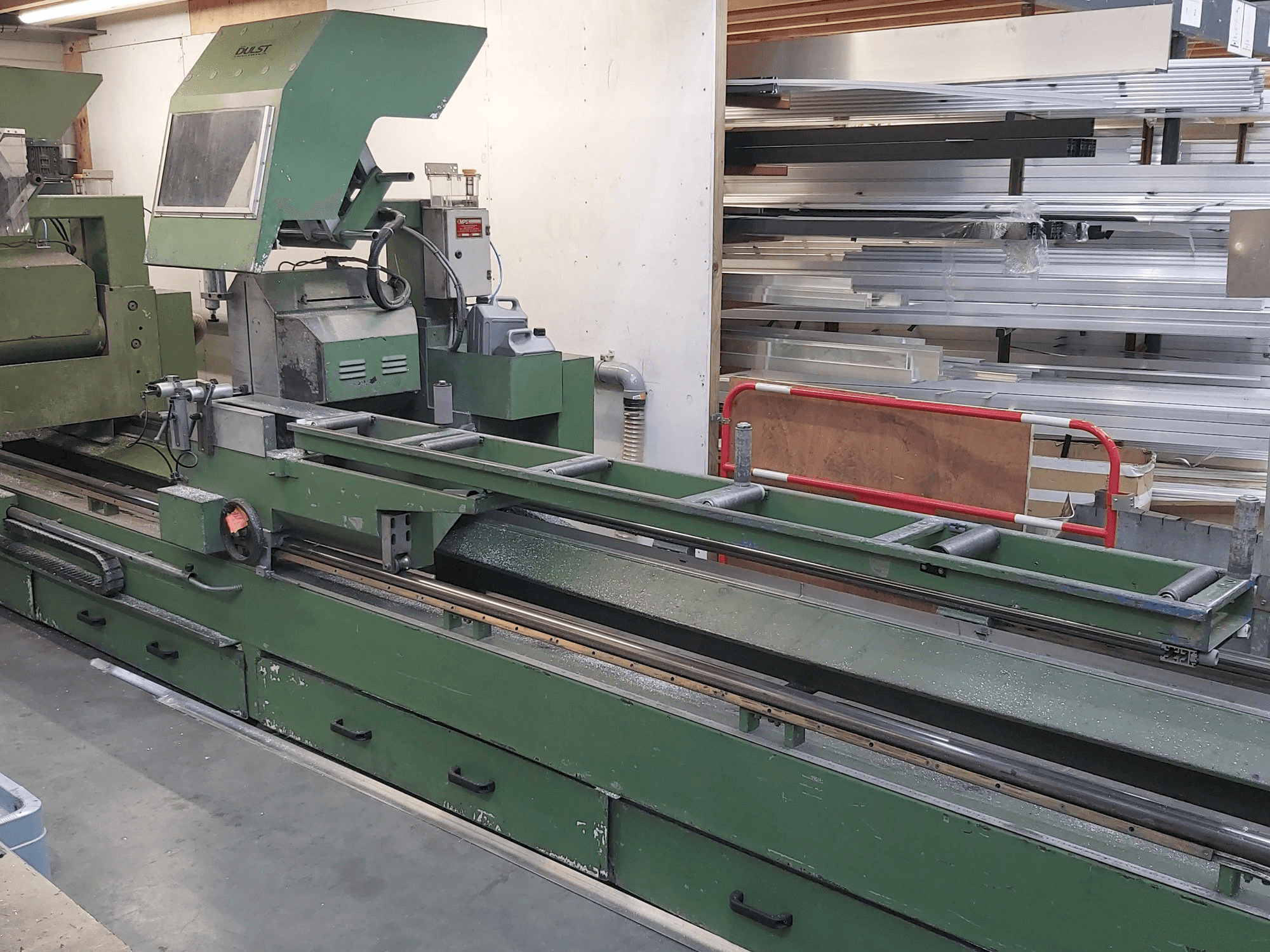

MECAL - SW453 Reverse Garda 3NL-OTH-MEC-2001-00001

Machine Benefits

Qualitative Machine Benefits

• Hydropneumatic linear saw feed
• Equipped with adjustable end stop for the stroke length
• The saw comes from the back to the front
• Standard incl. Mist lubrication (suction, water-based coolant)
• Incl. 2 vertical clamps adjustable in height from above. The clamps have a pneumatic stroke in the transverse direction to prevent the saw from cutting into the clamp.
• Incl. 2 fixed horizontal clamps inside, adjustable in height/depth
• Equipped with pneumatic protective covers around the cutting zone
• Incl. 2 hm saw blades: tct Ø 500mm x 30 x 120tds
• In accordance with ce guidelines, supplied with assembly keys and instruction book
• Minimum cutting length between the saw heads, with straight cutting: 300 mm -the control is suitable for connection to the network.

Technical Machine Benefits

• Double miter saw mecal sw453
• Type reverse garda 3
• Max. Cutting length between the saw heads: 5 m
• Double miter saw with movable right head by means of a programmable dc servo motor over a rack and pinion. The tilting of the saw heads is servo-controlled
• Servo-controlled tilting (tilting) of the cutting heads of each head from 22. 5° outward to 45° inward
• Including 2 saw blades: 500 mm
• Motor 2800 rpm
• 380-400v
• 2. 2kw
• Equipped with an industrial pc, type ec 9001
