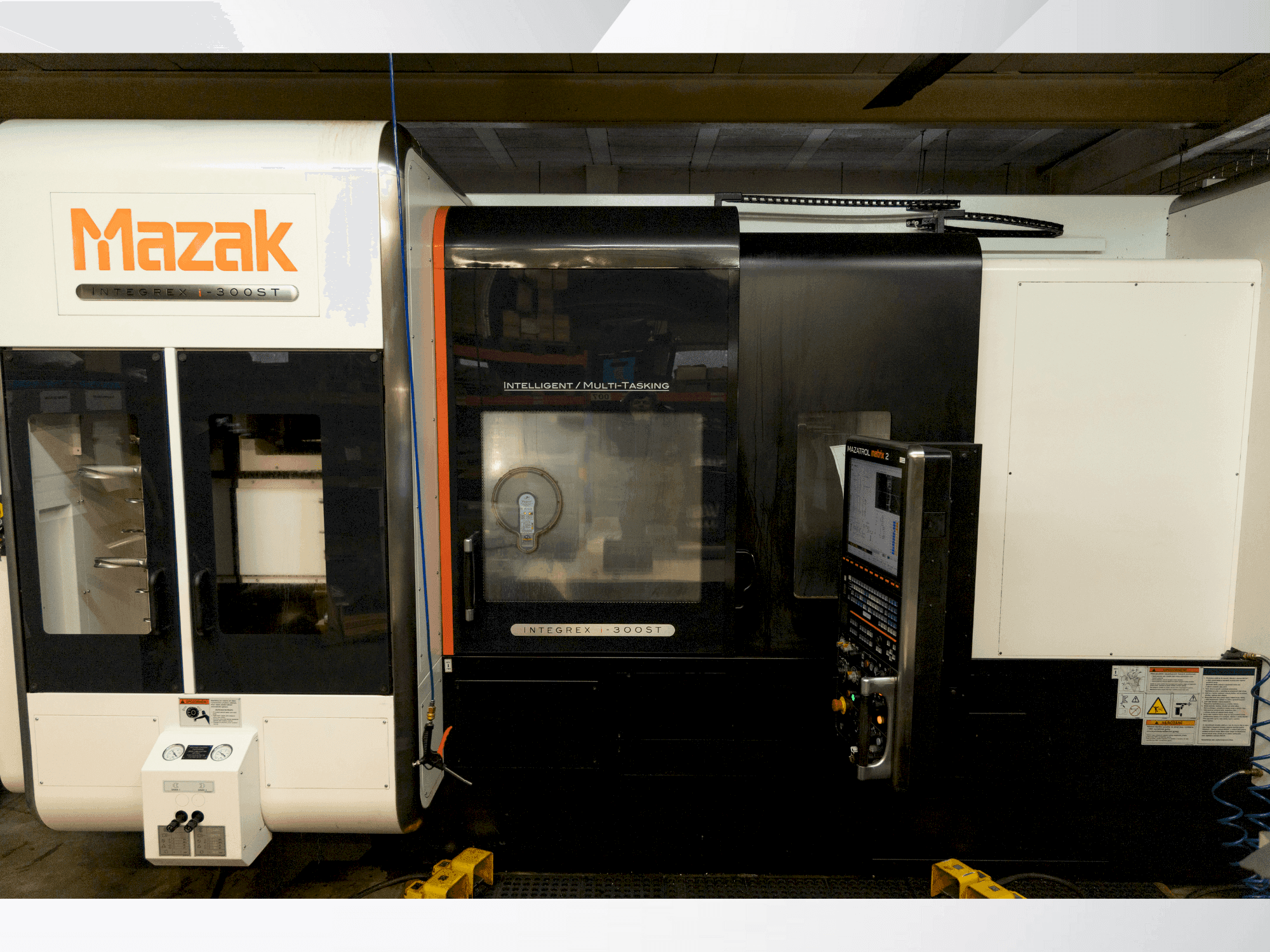

Mazak - Integrex i-300ST-1500UCZ-TUR-MAZ-2012-00001

Additional equipment

• Mist filter unit
• High pressure cooling (14 bar)
• Work space rinse cleaning (2.7 bar/60 l)
• RMP600-Radio/Radio probe
• Preparation for 70 bar cooling through spindle
• Programmable overload detector
• C-axis on second spindle
• MO321 - Gear milling without tool
• TE810 - Preparation for Multi and Flash tools
• NO117 - Tool edge control for 5-axis continuous / Axes movements: X / Y / Z / X2 / Z2 615 / 250 / 1585 / 230 / 1388 mm / W 1539 mm / C-axis indexing 0.0001°

Machine Benefits

Qualitative Machine Benefits

• Comprehensive equipment for diverse machining operations (turning, milling, drilling, threading, etc. )
• Used exclusively with mazak service technicians
• Lower turret number of tools 9

Technical Machine Benefits

• Main spindle bar passage: 80mm
• Milling head (b axis) speed: 12. 000rpm
• No123 - tool radius correction for 5-axis continuous control
• No137 - eia dynamic compensation i
• No092 - synchronous threading for driven tool
• Eia/iso continuous 5-axis control
• Extensive tool capacity with 72-tool magazine (hsk-63 holders)
• Advanced 5-axis continuous control with various compensation and correction features
• Max. Machining diameter 658 mm / max. Machining length 1519 mm / max. Workpiece weight 450 (1st spindle) / 400 (2nd spindle) kg
• Main spindle motor power 30 (30 min. ) / 22 (continuous) kw / subspindle motor power 26 (30 min. ) / 22 (continuous) kw /

Extra Information

Machine still under power
