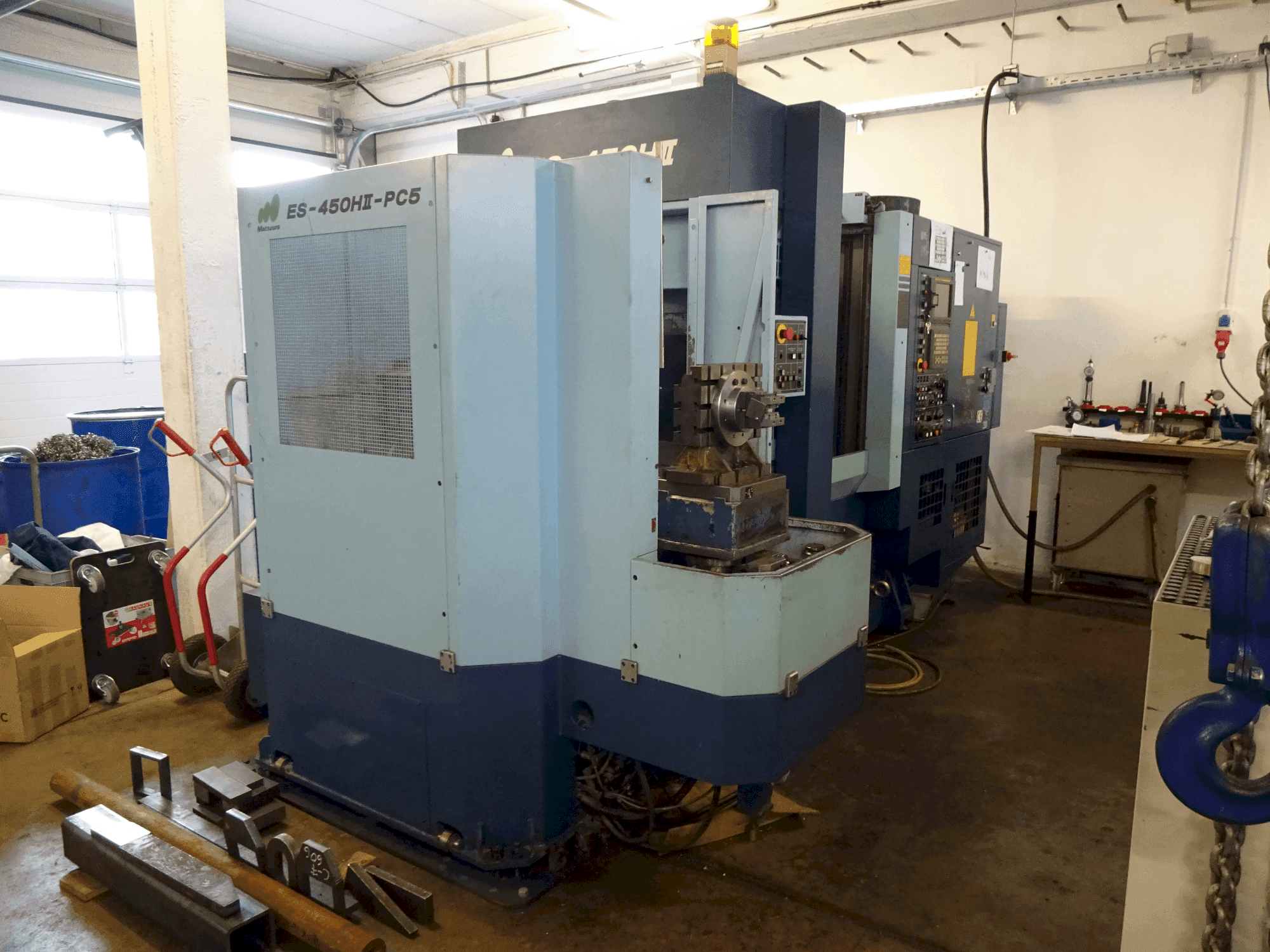

Matsuura - ES-450HII PC5DE-MIL-MAT-1999-00001

Machine Benefits

Technical Machine Benefits

• Table surface height (from the floor): 1000mm

Extra Information

Traverses: X axis (column right/left): 450mm (250 on the left, 200 on the right) Y axis (spindle head up/down): 400mm Z axis (pallet back/forth): 400mm (+250 when pallet is changed) Workpiece Distance between pallet top surface to spindle nose: 80~480mm Distance between pallet centre to column slideways: 120~520mm Pallet: Working area: 300 x 300mm Maximum load weight: 200kg Surface tapped hole (size x quantity): M12 x P1.75 x 32mm Table Table indexing angle: 1 degree Table indexing speed: 1.5 sec/90°, 1.9 sec/180° Coupling clamp force: 27.3kN Spindle Spindle bearing ID: Ø70mm Maximum spindle torque: 105/1000 minˉ1 Nm Tool clamp force: 8.2kN Spindle orientation: Standard (electric) Spindle air blow: Standard Feed Rate Cutting federate (X/Y/Z): 1~15000mm/min Manual continuous (jog) federate: 0~4000mm/min Least output increment: 0.001mm Automatic Tool Changer Pull stud type: JIS B 6339 pull stud 40P Tool storage: 30 pcs Method of tool selection: Addresses code & random selection bi-directional magazine rotation. (T4) Tool change time (tool to tool): 1.5 sec (less than 6kg), 2.0 sec (more than 6kg) Tool change time (chip to chip): 3.2 sec Tool pot pitch: 95.25mm Automatic Pallet Changer Number of pallets: 2 Pallet change system: Turn-table method Pallet change time: 8.5 sec Pallet change time (pallet to pallet): 9.0 sec Pallet clamp force: 41.5kN Pallet weight/piece: 40kg Pallet size: 300 x 300mm Maximum load weight: 200kg Motors Spindle motor: Alpha T8/1500 AC 11.0/7.5kW (30min./continuous rate) Feed motors: X Axis: model α 22/3000 AC 4.4kW Y Axis: model α 22/2000 with brake AC 4.4kW Z Axis: model α 22/3000 AC 4.4kW Hydraulic motor: AC 1.5kW Lubrication motor: AC 0.02kW Coolant motor: AC 0.75kW Required Power Capacity Total electric capacity: 34KVA Air source: 0.54~0.93MPa Air capacity: 400 L/min Hydraulic tank capacity: 15L Lubrication tank capacity: 2.7L Coolant tank capacity: 200L Standard Attachments Tool enclosure guard (with top cover) Chip flow Synchronized tap Spindle oil cooler Spindle overload protection Feed axis interface prevention device Work light (fluorescent light) M code counter (9 kinds) Through spindle coolant Spindle probe interface (no probe) Filtermist Swarf conveyor Manuals
