- MATEC 30 HV (2003) Universal Machining Centre / CNC traveling column milling machine

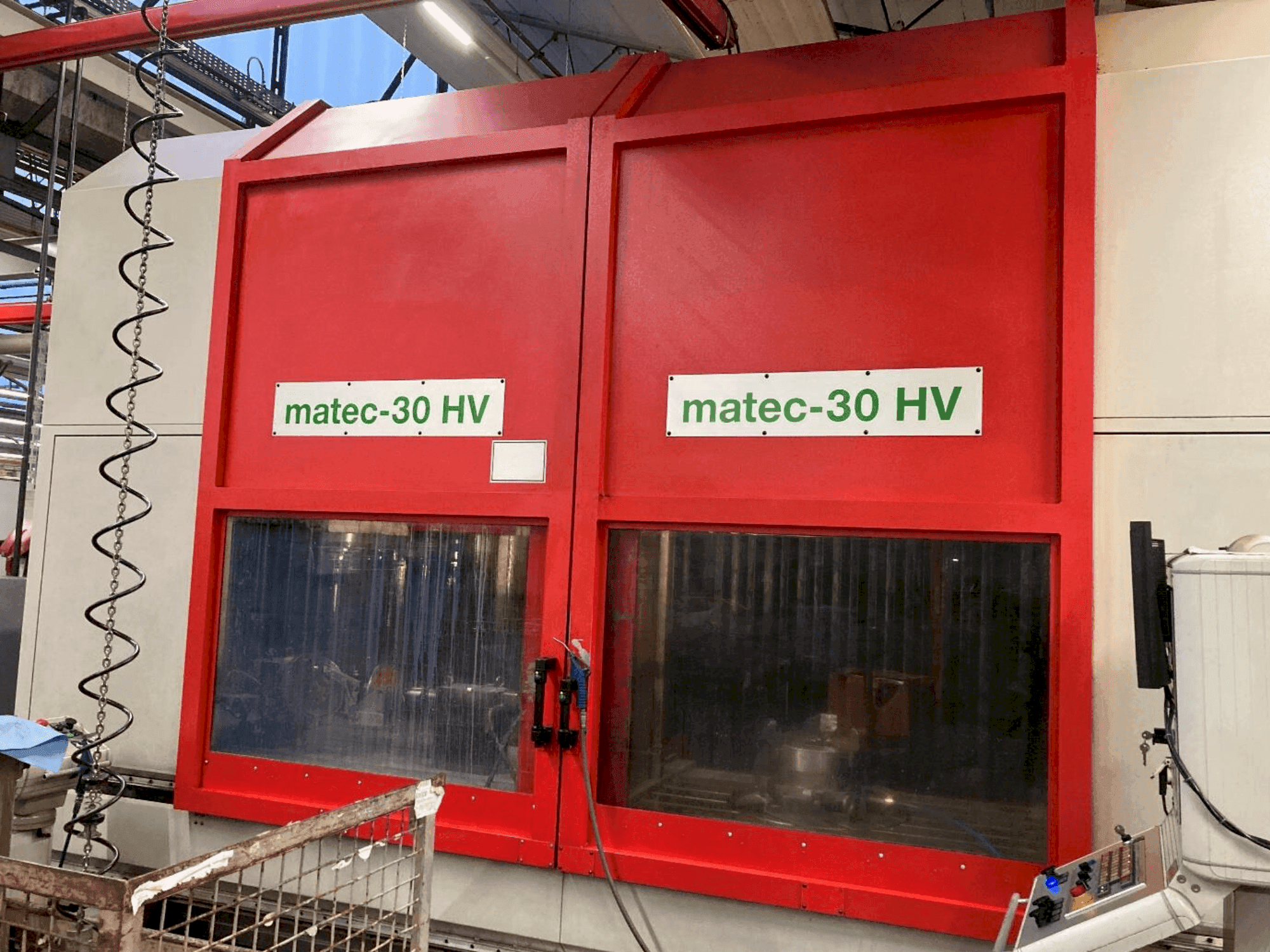

This MATEC 30 HV (2003) Universal Machining Centre was manufactured in 2003 in Germany. It is controlled by a BOSCH TYPE 3 OSA Control unit. This CNC traveling column milling machine (3+2 axes) is equipped with a main spindle type DMS 112 with speed range up to max. 12,000 min/-1 and drive power 30 kW. It has a NC swivel head (Sauter) with swiveling +/- 90 ° and graduation +/- 3 arc seconds. In addition it runs with a tool changer with 48 positions and a HSK A63 tool holder. The table is a NC rotary table with a clamping surface of 3,500 x 835 mm and 7 T-slots. IKZ 70 bar, paper belt filter and chip conveyor (ejection height 1200mm) and 3D radio measuring probe come with the machine. The machine is prepared with a 4th axis interface. The condition of the machine is very good - it is still in production and maintenance service has been applied regularly according to manufacturer's standards. An on-site inspection is possible at any time.
Übersicht
- Hersteller: Matec
- jahr: 2003
- MODELL: 30 HV
- anwendungstyp: Fräsen
- Standort: Deutschland
- maschinentyp: Vertikal-Bearbeitungszentrum
- Marke Steuergerät: BOSCH
Technische Daten - Matec 30 HV
Steuerung
- Steuerungsmarke: BOSCH
- Steuerungsmodell: TYPE 3 OSA
Maße
- Maschinentiefe: 6000 mm
- Maschinenhöhe: 4000 mm
- Maschinengewicht: 15000 kg
Bewegung
- Anzahl der Achsen: 3
- X-Achsverfahrweg: 3000 mm
- Y-Achsverfahrweg: 800 mm
- Z-Achsverfahrweg: 1100 mm
Technische Spezifikation
- Spindelleistung: 30 kW
- Spindeldrehzahl: 12000 RPM
- Kühlmittelzufuhr durch die Spindel: Ja
Zusätzliche Informationen
Additional equipment
- Coolant system: Internal coolant supply 70 bar // Cooling unit for switch cabinet
- Paper belt filter Flushing gun
- Chip conveyor: Ejection height 1200mm
- 3D radio measuring probe
- Direct measuring systems x-y-z
Machine Benefits
Qualitative Machine Benefits
- Machine still under production and can be inspected at any time
- The machine has been serviced every year by the service department and is technically in good condition
Technical Machine Benefits
- Main spindle: type dms 112 // max. Torque 190 nm // drilling capacity steel approx. 60 mm // milling capacity approx. 500 cm³ // thread cutting m30
- Feed rates: rapid traverse (x / y / z) 30 m/min // feed speed 30,000 mm/min
- Nc swivel head: sauter swiveling +/- 90 ° // pitch +/- 3 arc seconds
- Work table: table clamping surface 3,500 x 835 mm // t-slots 7x // t-slots - width 18-h7 // nc rotary table sempuco skh 4/630 // horizontal faceplate // faceplate diameter 630mm // embedded in the machine table
- Tool changer: number of tool positions 48 pos.
- Total connected load: 60kva
- Fully enclosed work area
- Loading doors suitable for crane loading // automatic opening // movable partition wall
- Clamping hydraulics interface 4th axis // nc rotary table rw/nc 160/250 (hofmann)
- Face plate diameter 250mm // center height 160mm // hydraulic tailstock with quill mk4
Extra Information
Full documentation included // Declaration of conformity // Replacement screen installed
