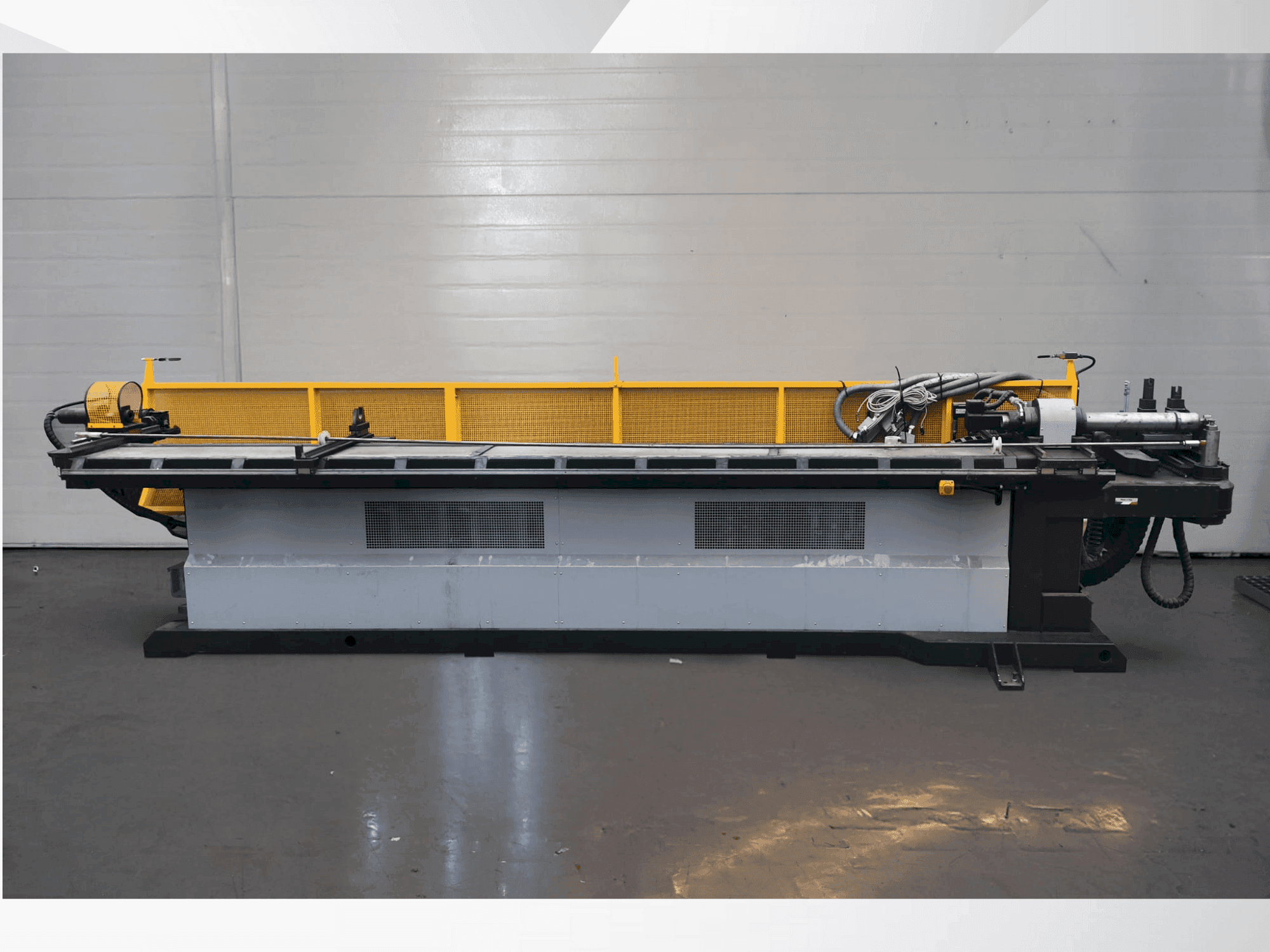

MACRI - Provar 6-45 U-DPL-BEN-MAC-2018-00001

Additional equipment

• Movable slide support / Anti-wrinkle insert support / 2×1 m safety mat (aluminum) / Macri software installed on office PC (Windows 7) / Rear support-free bending system / Hydraulic cylinder for square/rectangular tube die opening / Automatic material elasticity control system / Tooling Sets

Machine Benefits

Technical Machine Benefits

• Production hours: around 20 hours, the machine was not used in the production.
• Type: fully automatic cnc tube bending machine (6-axis)
• Max. Tube diameter (round): Ø45 × 4 mm / min. Tube diameter for variable radius: Ø35 × 2 mm (rm 10d) / usable tube length: 5800 mm / max. Bending speed: 150°/sec (±0. 1°) / max. Push speed: 1000 mm/sec (±0. 1 mm)/ max. Clamp rotation speed: 450°/sec (±0. 1°) / rotation direction: clockwise / spindle movement (head travel): 6-axis (y, x, z, b1, b2, a)
• Installed power: 15 kw / voltage / frequency: 400 v / 50 hz / dimensions of machine (l×w×h): 6000 × 1200 × 1200 mm / weight (kg): 4500 kg / control cabinet dimensions: 900 × 600 × 1800 mm
• Control system: industrial pc with windows 7 / display: 19" lcd tft svga touch screen / control software: graphical cartesian & cad-based interface / features: manual and semi-automatic operation, import of 3d files (e. G. , solidworks)
