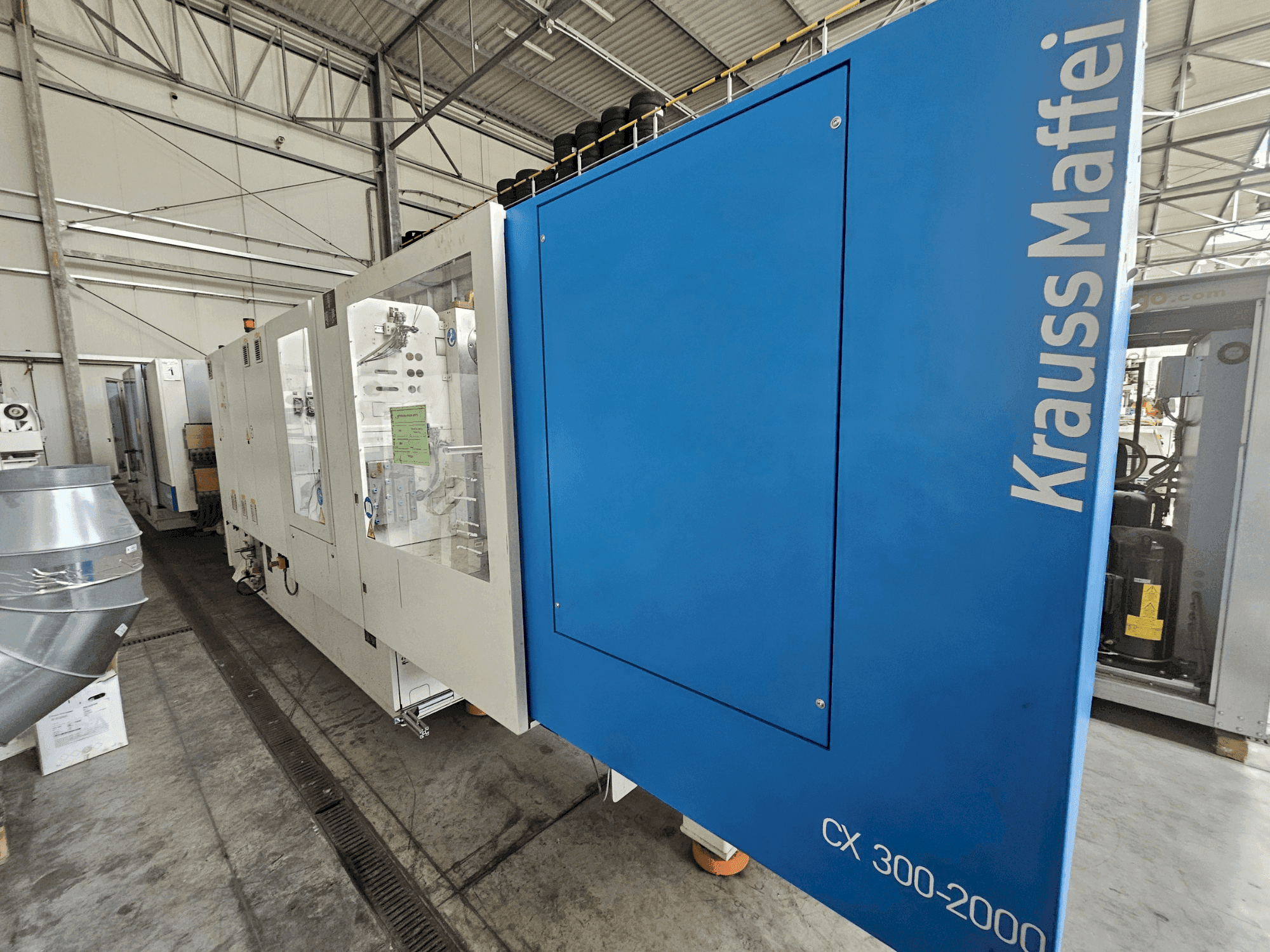

Krauss Maffei - 300-2000 CXPL-INJ-KRA-2019-00001

Additional equipment

• Clamping Force: 300 tons

Machine Benefits

Qualitative Machine Benefits

• Power on: 20910h / working hours: 19371h

Technical Machine Benefits

• Distance between bars: 630 x 630 mm
• Opening force: 169 kn / opening stroke: 820 mm / ejector stroke: 200 mm / ejector force (forward/backward): 58/28 kn
• Mold platen dimensions (h x v): 995 x 1050 mm / distance between tie bars (h x v): 630 x 630 mm
• Minimum mold height: 330 mm / maximum daylight: 1150 mm
• Screw diameter: 70 mm / l/d ratio: 20. 0 / injection pressure: 1877 bar / shot volume: 1078 cm³ / shot weight (ps): 981 g / injection rate: 100 mm/s
• Plasticizing rate (ps): 385 cm³/s / screw speed (standard): 220 rpm / plasticizing capacity (ps): 75. 8 g/s
• Nominal pump drive power: 55 kw / installed heater capacity: 29. 2 kw / number of heating zones: 6 / dry cycle time / speed according to euromap 6: 2. 7 s / 441 mm/s / oil tank capacity: 720 dm³
• Net weight with control cabinet: 14. 0 t / increased minimum mold height: +150 mm
• Increased maximum daylight: +150 mm / increased platen dimensions and horizontal tie bar spacing: +80 mm for models km 250 to km 300 / tie bar spacing after increase: 710 x 630 mm (h x v) / thermoplastic screw hps-un for high-performance applications – 70 mm diameter
