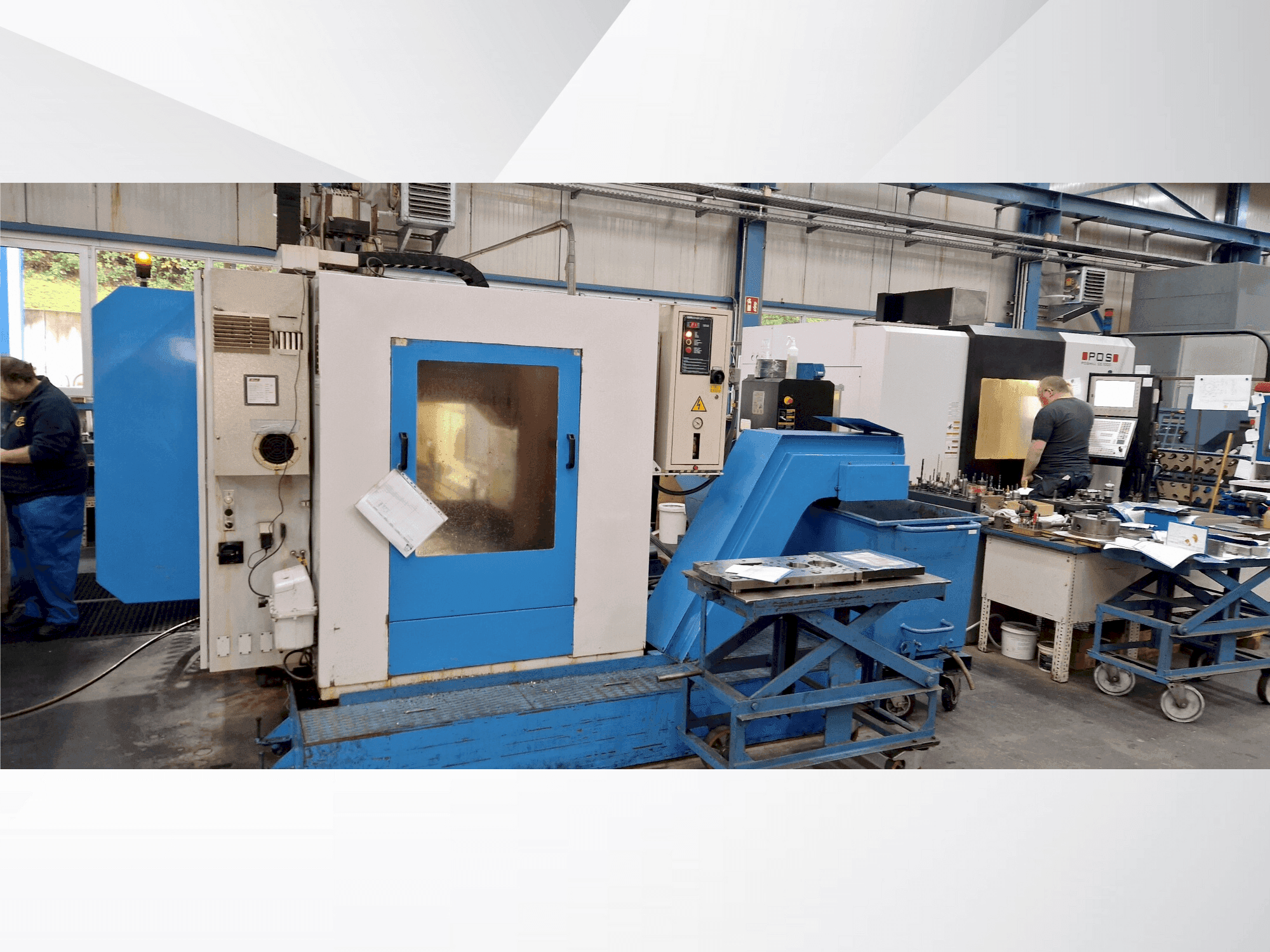

KONDIA - HM-2010DE-MIL-KON-2000-00002

Additional equipment

• Coolant System for the Work Spindle: Included
• Number of Tools: 20
• Random Selection System: Yes / Tool Orientation: Non-directional
• Max. Tool Diameter (with adjacent tools): 35 mm / Max. Tool Diameter (without adjacent tools): 135 mm / Max. Tool Length: 250 mm / Max. Tool Weight: 6 kg
• Tool Change Time: 2.3 seconds
• DRIVES Work Spindle Motor (Dual-Winding): 5.5/7.5 kW (Optional: 7.5/11 kW) X and Z Axis Motor (Three-phase): 1.8 kW Y Axis Motor (Three-phase): 1.3 kW
• Coolant System (Work Spindle): 0.8 kW / Coolant System (Tool): 2.5 kW / Total Power Requirement: 14 kW
• Footprint: 5130 x 3570 mm

Machine Benefits

Technical Machine Benefits

• Worktable dimensions: 2000 x 1000 mm
• Number of t-slots: 7 / t-slot spacing: 125 mm / t-slot width: 22 mm / distance from table to floor: 860 mm
• Dimensions of ball screws (x, y, z axes): 50/40/40 mm
• Max. Recommended table load capacity: 2000 kg
• Rapid traverse (x and y axes): 24,000 mm/min / rapid traverse (z axis): 20,000 mm/min / feed rate: 5,000 mm/min
• Max. Available torque (at 330 rpm): 233 nm / max. Distance between milling spindle and table: 635 mm
• Programmable, oriented stop: 0. 1 s
• Positioning accuracy: +/- 0. 01 mm / repeatability: +/- 0. 005 mm / resolution: 0. 001 mm
