KOMPAS - F 2030 Industry 3000x2000mm megmunkáló felülettelHU-CNC-KOM-2019-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Holzbearbeitung
- ➤ Used KOMPAS F 2030 Industry 3000x2000mm megmunkáló felülettel For Sale

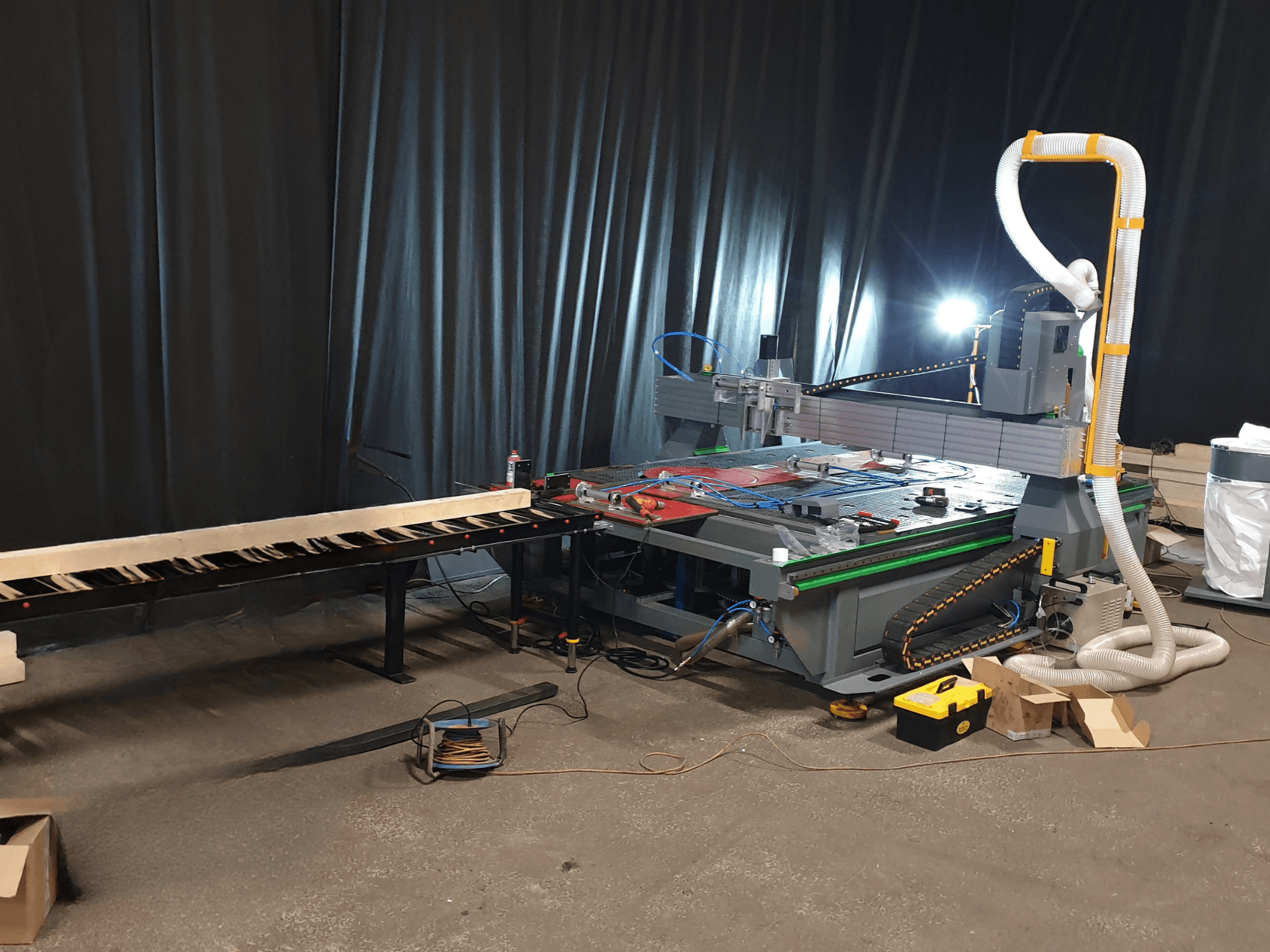

This 3-axis KOMPAS F 2030 Industry was manufactured in 2019 and features a 3000x2000mm working area. It includes an automatic Mach3 CNC control for feeding, sawing, and milling, with a maximum speed of 10,000 mm/min. The machine is equipped with a 3 kW milling motor, angle-adjustable circular saw, pneumatic clamping, and a chip extraction system. If you are looking to get high-quality milling capabilities, consider the KOMPAS F 2030 machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: KOMPAS
- jahr: 2019
- MODELL: F 2030 Industry 3000x2000mm megmunkáló felülettel
- anwendungstyp: CNC-Bearbeitung
- Standort: Ungarn
- maschinentyp: CNC-Fräse
- Verfügbar ab: 30/01/2026
Technische Daten - KOMPAS F 2030 Industry 3000x2000mm megmunkáló felülettel
Maße
- Maschinengewicht: 2000 kg
Bewegung
- Anzahl der Achsen: 3
Zusätzliche Informationen
Working area: 3000 × 2000 mm
Control: Automatic Mach3 CNC control (Hungarian user manual included)
Max speed: 10,000 mm/min
Milling unit:
3 kW water-cooled milling motor
Milling tool diameter: 1–13 mm
Tool change system
Safety covers on motors (brush-type), included for milling unit
Saw unit:
Angle-adjustable circular saw with 4 kW motor
Pneumatic angle cutting method
Saw blade moves in Z direction
Max blade diameter: 400 mm
Protective cover above the saw blade
Table rotates with angle indicator in X–Y plane
Clamping: Pneumatic clamping
Measurement: Automatic length measurement
Safety: Optical emergency stop safety system
Included: Control computer and software
Installation & operating conditions:
Foundation: 10 cm thick concrete required
Rubber pads integrated into machine feet
Operating temperature: 10–30 °C
Hours: Used max. 700 hours
Additional equipment
Roller material infeed system: Front and rear, rollers on both sides
5 m in front of the machine and 2 m behind
Chip/Dust extraction system: Dust extraction with four collection bags
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
