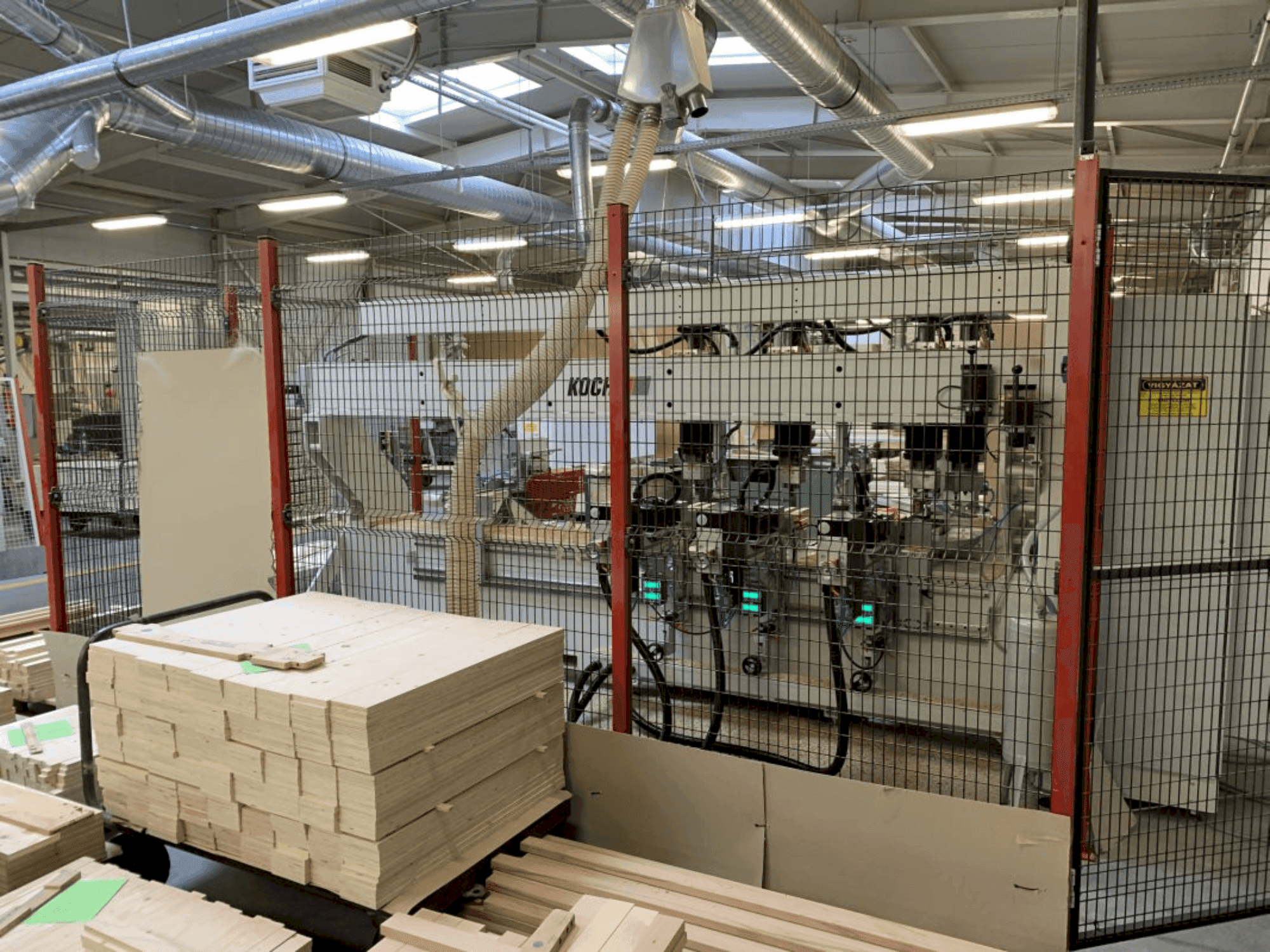

KOCH - BL 2500 NC select lineDE-BOR-KOC-2019-00001

Additional equipment

• Magazine Loading: Manual insertion with workpiece return / Servo motor-driven workpiece insertion / Clamping table for frame parts with clamping cylinders and templates

Machine Benefits

Technical Machine Benefits

• Dimensions: length: 150 - 2500 mm width: 20 - 300 mm thickness: 10 - 50 mm
• Material: solid wood
• Positioning control: koch numeric basic 1
• Control specifications: beckhoff c6920 industrial pc / intel® celeron® 2. 2ghz cpu/2. 5“ 320gb hdd/15“ touch panel/operating system: windows 7/user interface: english/input of all machine commands via the touch panel/software prepared for online connection via usb/online connection to be set up by the customer
• Rotary assemblies: 4 with quick adjustment for vertical drilling units, fixed stops at 0° and 90°
• Drilling units: 3 horizontal longitudinal drilling units with 160 mm width, 2 kw motor, and lcd readouts for x and z adjustments/ 4 vertical drilling units, movable in x and y axes with lcd readouts, equipped with vertical clamping cylinder
• Electrical: 400 v, 50 hz, 3 phases, voltage fluctuations max +6% to -10%
• Air connection: 7 bar
• Extraction air speed: min 30 m/sec
