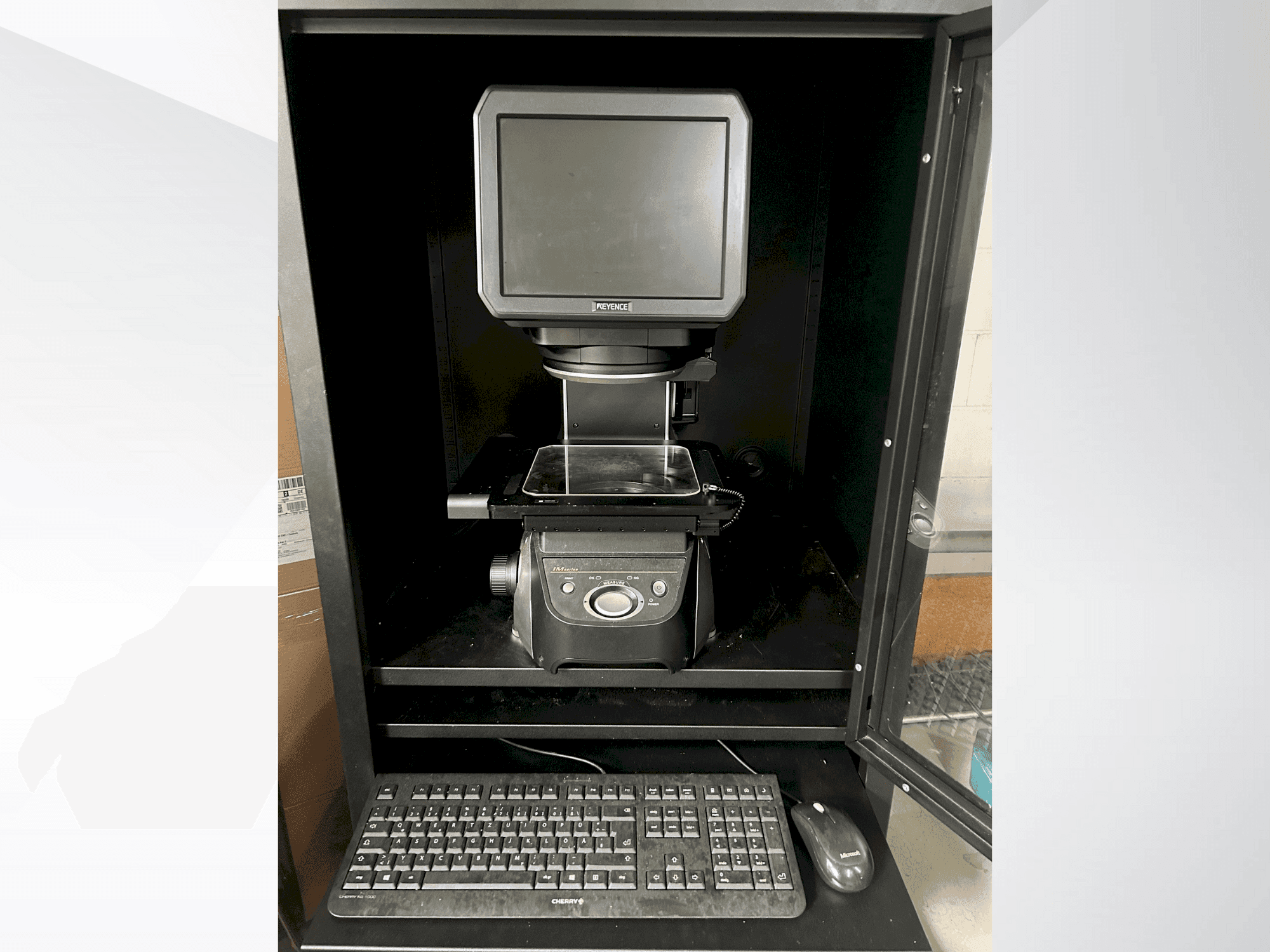

KEYENCE - IM 7020 DE-MEA-KEY-2018-00001

Additional equipment

• Optical Probe Measurement: Measurable Range: Diameter: Ø90 mm x 90 mm / Max Depth: 30 mm / Probe Tip Diameter: Ø3 mm / Contact Force: 0.015 N / Repeatability: ±2 micra / Accuracy: ±(8 + 0.02L) micra
• External Connections: Input: Voltage-free input (contact or non-contact) / Output: Photo-MOS output, rated at 24 V DC, 0.5 A
• Interfaces: LAN: RJ-45 (10BASE-T/100BASE-TX/1000BASE-T) / USB: USB 2.0 Type-A (6 ports: 2 front, 4 rear)
• Storage: Hard Disk: 500 GB
• Lighting System: Transmitted Light: Telecentric backlight (green LED) / Ring Light: Multi-angle lighting with 4 segments (white LED) / Flat-angle directional lighting (green LED)
• XY Object Table: Travel: 100 mm x 100 mm (electric) / Max Load Capacity: 5 kg / Z Object Table: Travel: 75 mm (electric)
• Power Supply: Voltage: 100-240 V AC, 50/60 Hz / Power Consumption: Max 430 VA

Machine Benefits

Technical Machine Benefits

• Control unit: 31 kg, measurement head: 8 kg, marking head: 31 kg
• Measurement head: image sensor: monochrome cmos, 1", 6. 6 megapixels / display: 10. 4" (xga: 1024 x 768) / lens system: telecentric lens for image-based measurement
• Measurement area: standard measurement mode: 200 mm x 200 mm / precision measurement mode: 125 mm x 125 mm
• Resolution: 0. 1 micra
• Repeatability: standard measurement mode: without stage movement: ±1 micra / with stage movement: ±2 micra
• Precision measurement mode: without stage movement: ±0. 5 micra / with stage movement: ±1. 5 micra
• Tandard measurement mode: without stage movement: ±5 micra / with stage movement: ±(7 + 0. 02l) micra/ (l = stage displacement in mm)
• Precision measurement mode: without stage movement: ±2 micra / with stage movement: ±(4 + 0. 02l) micra
