Vielen Dank für Ihren Besuch
Diese Maschine wurde kürzlich verkauft. Schauen Sie sich gerne unsere vergleichbaren Maschinen an oder kontaktieren Sie uns direkt.
KASTO - cut DU 4DE-SAW-KAS-2009-00002
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used KASTO cut DU 4 - 2009 - For Sale | gindumac.com

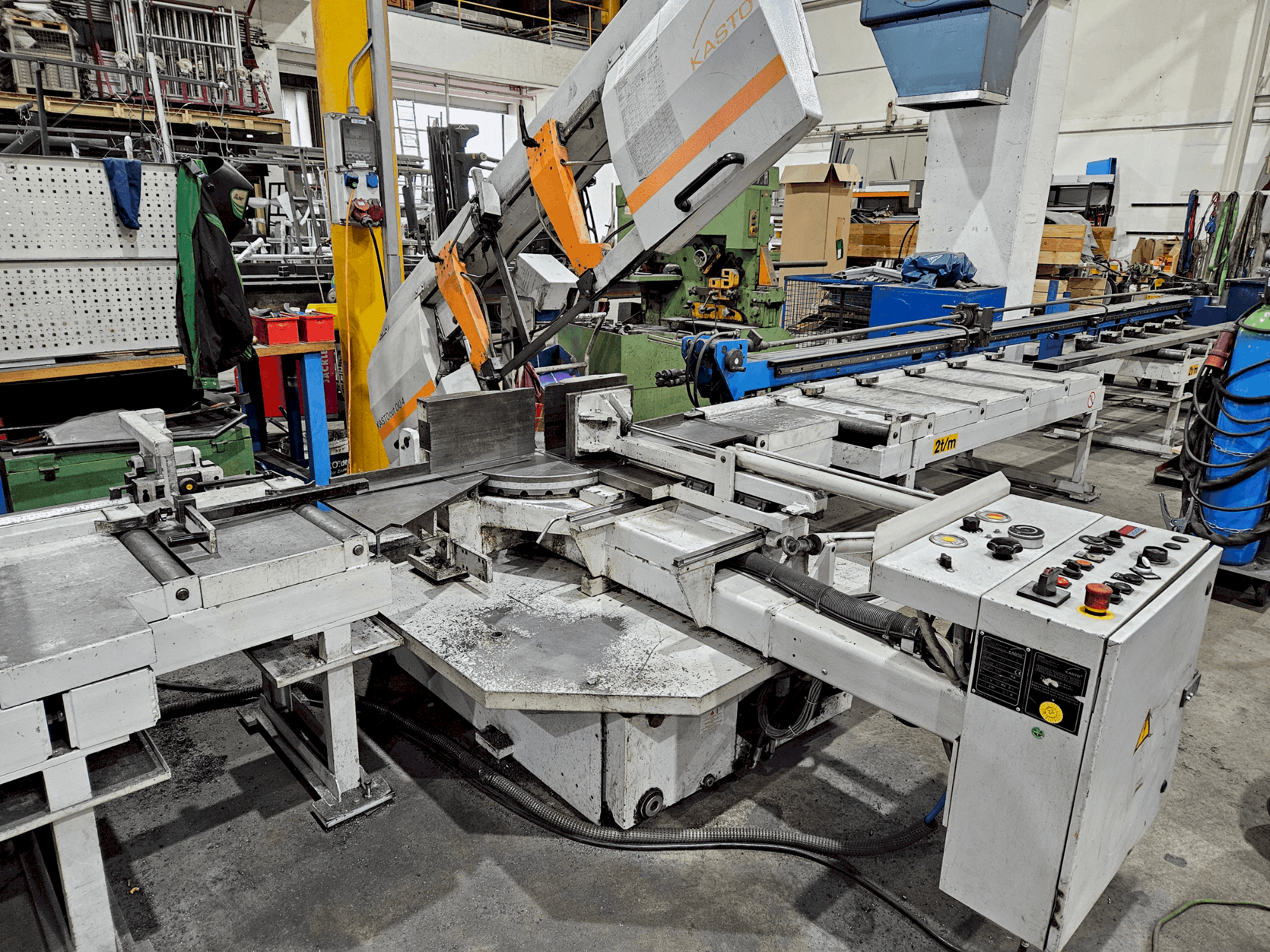

This Metal Band Saw was manufactured in 2009. It features a robust design with dimensions ranging up to 2460mm in length and 2185mm in height, and a total weight of approximately 1300 kg. The saw motor is powered by 3.0 kW, supporting a cutting speed from 20 to 110 m/min. It includes hydraulic material clamping and a coolant system with a 65-liter capacity. Ideal for handling material weights up to 400 kg/m. For more information about this Metal Band Saw, please reach out to us.
Übersicht
- Hersteller: KASTO
- jahr: 2009
- MODELL: cut DU 4
- anwendungstyp: Sägen
- Standort: Deutschland
- maschinentyp: Metallbandsäge
Zusätzliche Informationen
Additional equipment
- Hydraulic material clamping
- Coolant system with 2 coolant nozzles
- Saw blade cleaning with easily replaceable plastic brush
- Optional: Roller conveyors / The machine has been regularly serviced
Machine Benefits
Qualitative Machine Benefits
- Coolant filling quantity: approx. 65 litres
- Coolant pump capacity: approx. 25 l/min
Technical Machine Benefits
- Mitre adjustment - 60°/ + 60°
- Cutting speed: infinitely variable from 20 to 110 m/min
- Cutting feed: infinitely variable
- Saw blade guide: carbide, replaceable
- Saw blade tensioning: hydraulic
- Cutting ranges (standard) in mm approx:mitre angle 0° (90°) ± 45° ± 60° round: Ø 400 mm, 320 mm, 250 mm square: 320 x 320 mm, 320 mm, 220 x 220 mm flat wxh: 520 x 320 mm, 320 x 320 mm, 220 x 320 mm
- Minimum diameter to be sawn: 10 mm
- Minimum length to be sawn: 10 mm
- Shortest remaining piece length: 45 mm
- Maximum material weight: 400 kg/m
Extra Information
Machine still under power
