KALTENBACH - KF 1606DE-DRI-KAL-2008-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen

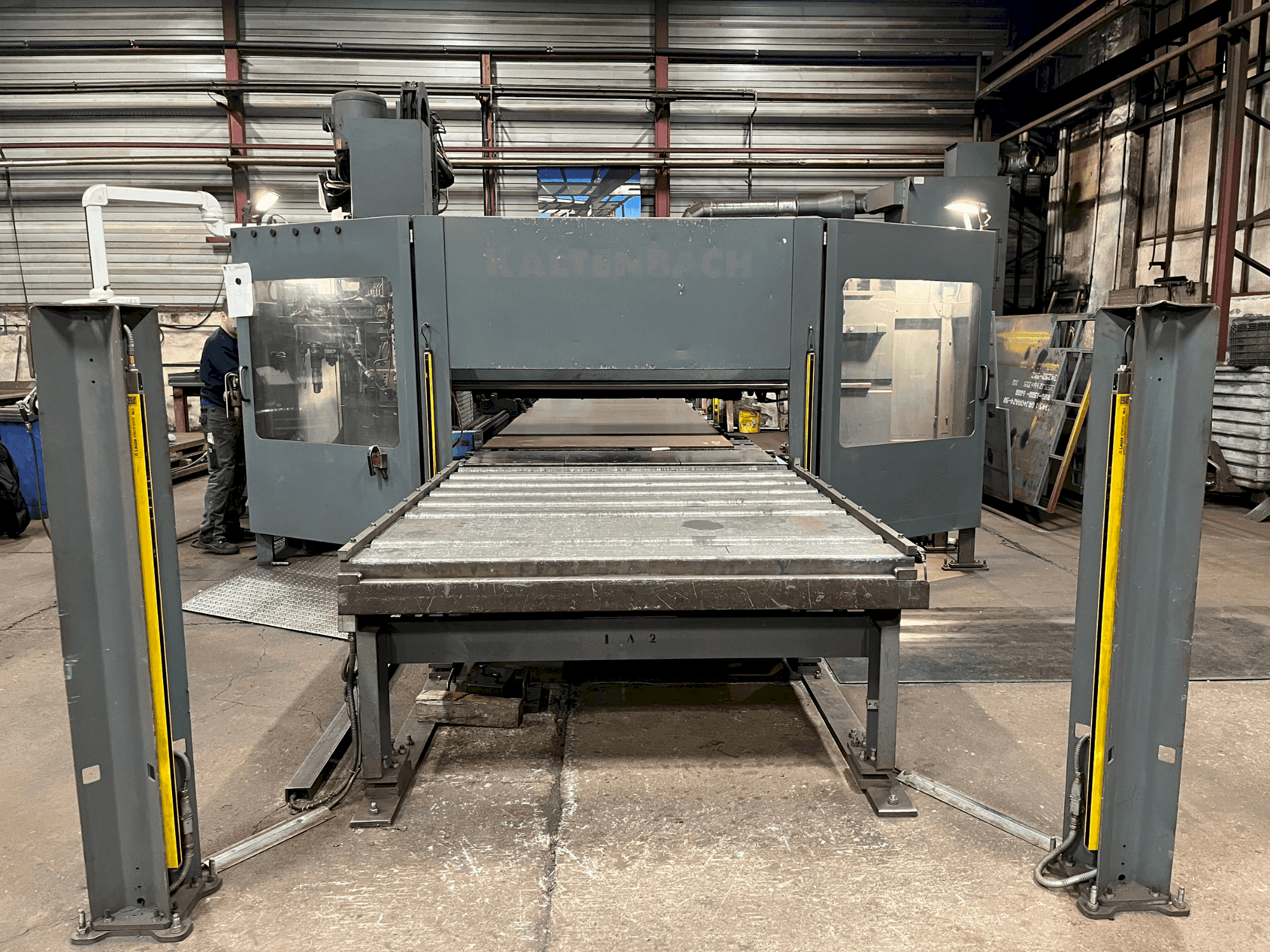

- Kaltenbach KF 1606 Flat and Plate Processing System
This Kaltenbach KF 1606 Flat and Plate Processing System, for drilling and flame cutting of flat steel and sheet metal, was manfactured in the year 2008 in Germany. It comes with a bore diameter of 6 - 40 mm, a floor-plate width of 1.600 mm and a floor-plate length of 6.000 mm. The max. workpiece weight is 5000 kg and sheet metal can be processed from 6 to 60 mm thickness. The boring spindle runs with 150 - 2000 rpm and has 26 kW drive. In addition the machine has an automated tool changer with 6 magazin slots. With the transport system featuring feed and outfeed roller conveyors sheet metal lenght up to 6000 mm can be fed and up to 2000 mm can be outfed. Next to the standard equipment the machine comes with several extra options: Contour Marking, Tear plate processing, Plasma cutting system Kjellberg Hi Focus 280i and a Dedusting system for the plasma cutting system See original equipment list as PDF (German) attached.
Übersicht
- Hersteller: KALTENBACH
- jahr: 2008
- MODELL: KF 1606
- anwendungstyp: Sonstige Werkzeugmaschinen
- Standort: Deutschland
- maschinentyp: Bohrmaschine (Metall)
Technische Daten - KALTENBACH KF 1606
Maße
- Maschinentiefe: 5900 mm
- Maschinenhöhe: 2900 mm
- Maschinengewicht: 10000 kg
Zusätzliche Informationen
Additional equipment
- Automatic tool change Magazine 6 places
- Material transport and length measurement with hydraulic collet: Clamping force 14000 N
- Compressed air connection 8 bar
- Drive power drilling drive 26 kW
- Hydraulic unit 4 kW
- Feed roller conveyor for sheet lengths up to max. 6000 mm
- Outfeed roller conveyors for sheet lengths up to max. 2000 mm
Machine Benefits
Qualitative Machine Benefits
- Working height above floor 800 mm
Technical Machine Benefits
- Sheet width 220 - 160 mm
- Sheet length 500 - 6000 mm
- Sheet thickness 6-60 mm
- Unit weight max. 5000 kg
- Prefabricated sheet metal parts: min. 130 x 130 mm / max. 1600 x 2000 mm
- Vertical drilling unit (y-axis)
- Drilling diameter 6-40 mm
- Spindle speeds 150 - 2000 rpm
- Rapid feed/rapid return 0-2000 mm/min // drilling spindle feed 0-2000 mm/min // drill spindle positioning rapid traverse 24000 mm/min
- Automatic tool change magazine 6 places
Extra Information
Availability from August
