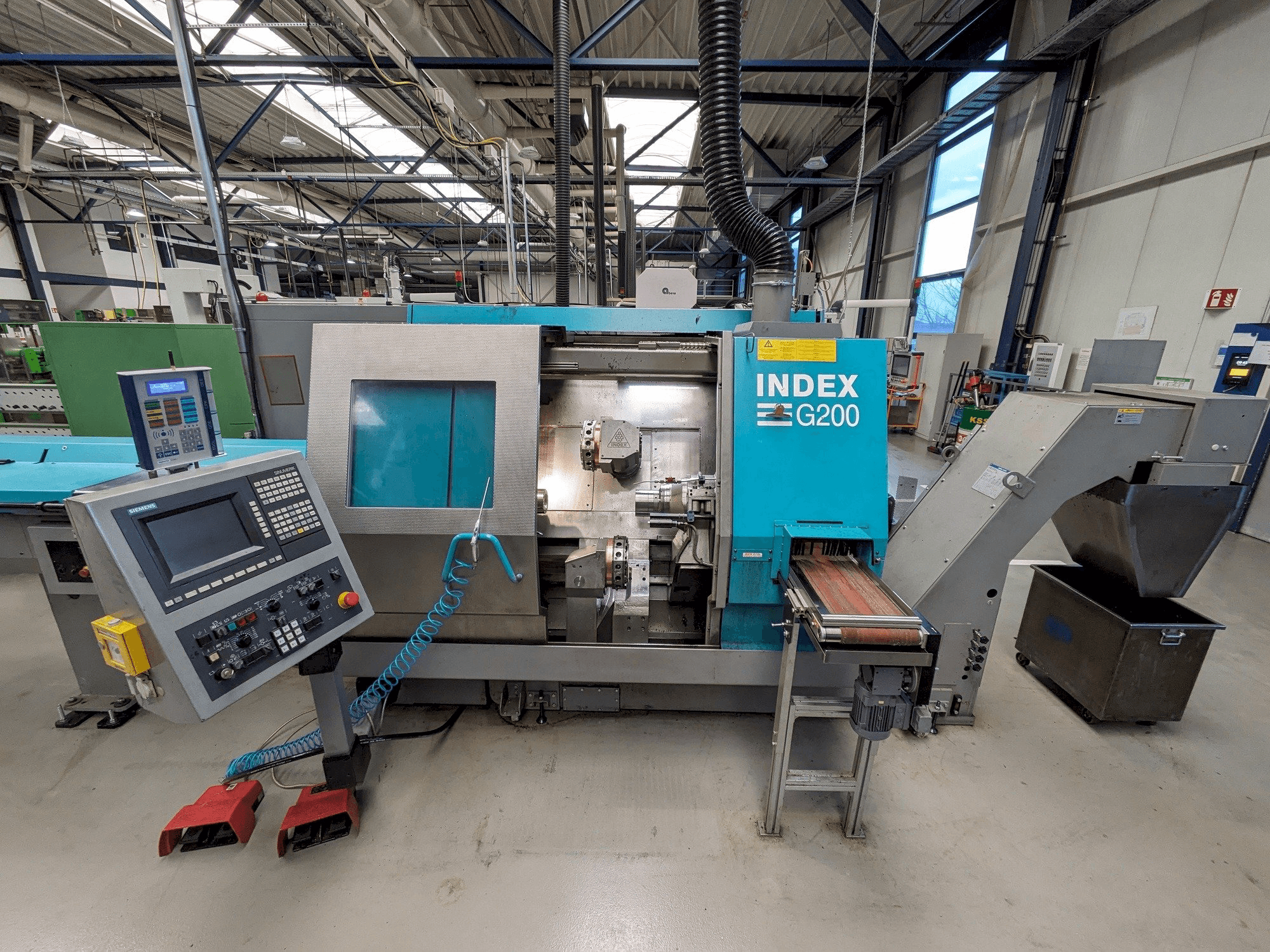

Index - G200 YB RATIOLINEDE-TUR-IND-2016-00001

Additional equipment

• High-pressure coolant pump, exhaust air nozzle, installation and commissioning, acceptance with customer part, bar loading magazine, CO2 extinguishing system, transport, cooling lubricant line.
• Switchable high-pressure coolant pump 20 bar
• Exhaust air nozzle D=150mm / Bar loading magazine INDEX-MBL 65/3700 / Kraft & Bauer automatic CO2 object extinguishing system
• New milling spindle for turret 1 with HSK D-50 tool holder / Switch cabinet cooling unit / New chip hinge belt conveyor / Conveyor belt to the right
• Coolant lubricant pump / Portal removal device with actuated gripper / Gripper fingers for workpiece D 4 45 mm and D 40-60 mm
• Unimag interface for bar feed (optional)

Machine Benefits

Qualitative Machine Benefits

• Overhauled in 2017: switchable high-pressure coolant pump 20 bar including suction filter / exhaust air nozzle d=150mm / bar loading magazine (used, reconditioned)/ index-mbl 65/3700 (d 10 - 65 mm, max. 3700 mm) / kraft & bauer automatic co2 object extinguishing system with air shut-off valve and pressure relief valve for the index g200 lathe / new milling spindle for turret 1 (top) with hsk d-50 tool holder, manually operated.

Technical Machine Benefits

• Technical machine benefits: high spindle speed and power, dual spindle capability, advanced control system.
• Qualitative machine benefits: precision engineering, comprehensive safety and operational features.
• X-axis: 155 mm (cross slide 1), 105 mm (cross slide 2) / z-axis: 590 mm (cross slide 1), 400 mm (cross slide 2)
• Max bar diameter: 65 mm
• Max workpiece length: 3700 mm
• Rapid traverse speed: x= 20 m/min, z= 30 m/min, y = 7. 5 m/min (cross slide 1) / rapid traverse speed: x= 22 m/min, z = 45 m/min (cross slide 2)
• Distance measuring system: x-axis glass scale, z-axis rod encoder
• Thread cutting without compensating chuck / transmit/tracyl function for c-axis / coupling main spindle/counter spindle

Extra Information

Cross slides details, tool carriers, machine paintwork specifications.
