Hurco - VMX42iHU-MIL-HUR-2013-00002
Haben Sie weitere Fragen? Kontaktieren Sie uns!

Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used Hurco VMX42i For Sale | gindumac.com

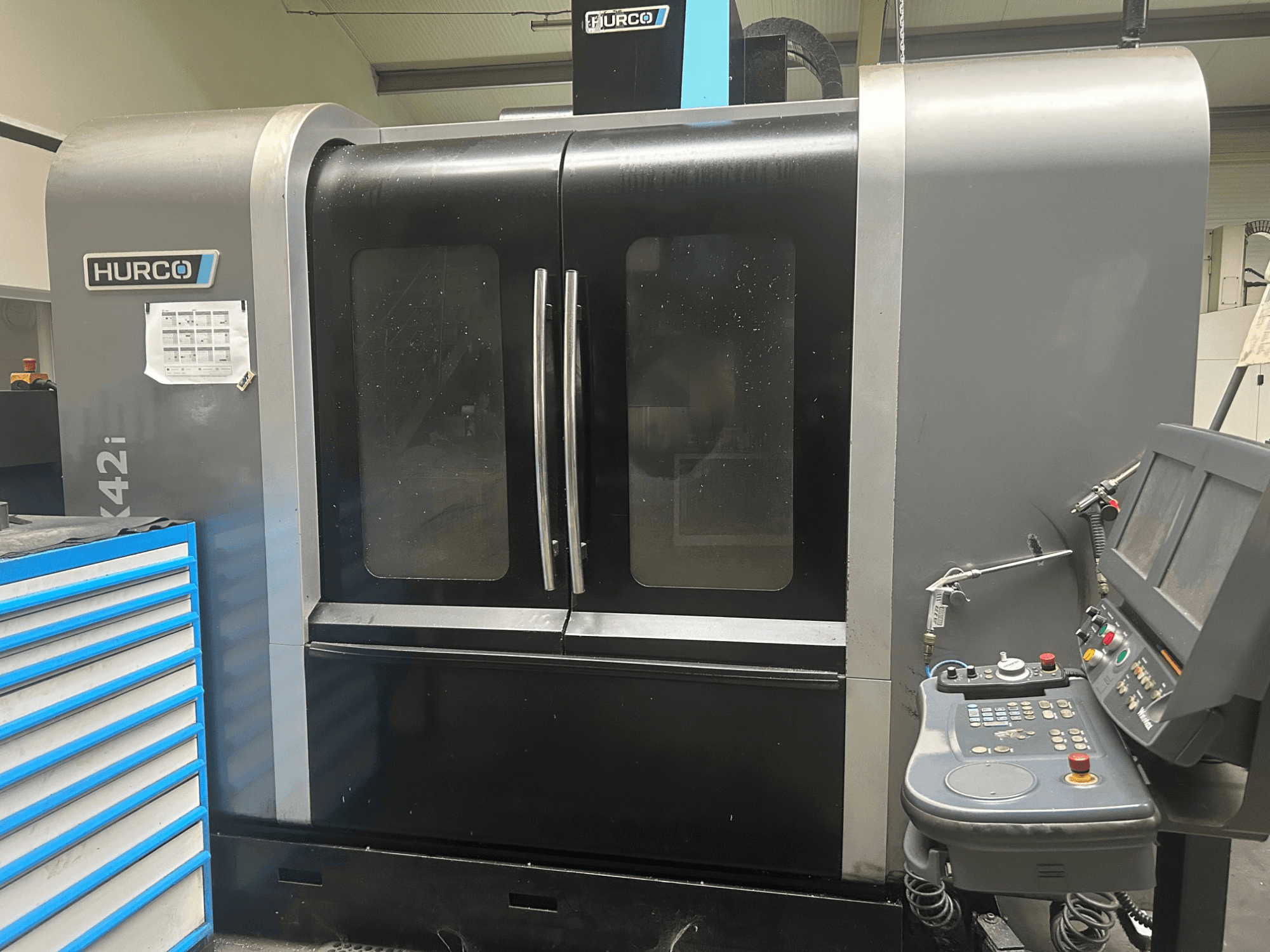

This 3-axis Hurco VMX42i was manufactured in 2013. It features a robust table size of 1,270 × 610 mm with a maximum load of 1,500 kg. The spindle can reach speeds up to 12,000 rpm, supported by a 15 kW motor. It includes an automatic tool changer with a capacity for 24 tools. Ideal for high precision tasks, it also offers rapid traverse rates of 24 m/min. Contact us for more information about this machine.
Übersicht
- Hersteller: Hurco
- jahr: 2013
- MODELL: VMX42i
- anwendungstyp: Fräsen
- Standort: Ungarn
- maschinentyp: Vertikal-Bearbeitungszentrum
Technische Daten - Hurco VMX42i
Maße
- Maschinentiefe: 2800 mm
- Maschinenhöhe: 2800 mm
- Maschinengewicht: 5000 kg
- Tischbelastung: 1500 kg
Bewegung
- Anzahl der Achsen: 3
- X-Achsverfahrweg: 1.067 mm
- Y-Achsverfahrweg: 610 mm
- Z-Achsverfahrweg: 610 mm
Technische Spezifikation
- Max. Werkzeuggewicht: 7 kg
- Spindeldrehzahl: 12000 RPM
Zusätzliche Informationen
Table:
Table size: 1,270 × 610 mm
Spindle:
Lubrication: Grease-lubricated spindle
Feed Rates:
Maximum cutting feed: 20 m/min
Tool Changer:
Type: Automatic tool changer (carousel type)
Accuracy:
Positioning accuracy: ±0.005 mm
Repeatability: ±0.003 mm
Control System:
Control unit: Hurco WinMax dual-screen CNC control
Display: 19” color touchscreens (2×)
Software features: Conversational and NC programming, DXF import, 3D model verification
Additional equipment
Coolant through spindle (CTS): optional
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
