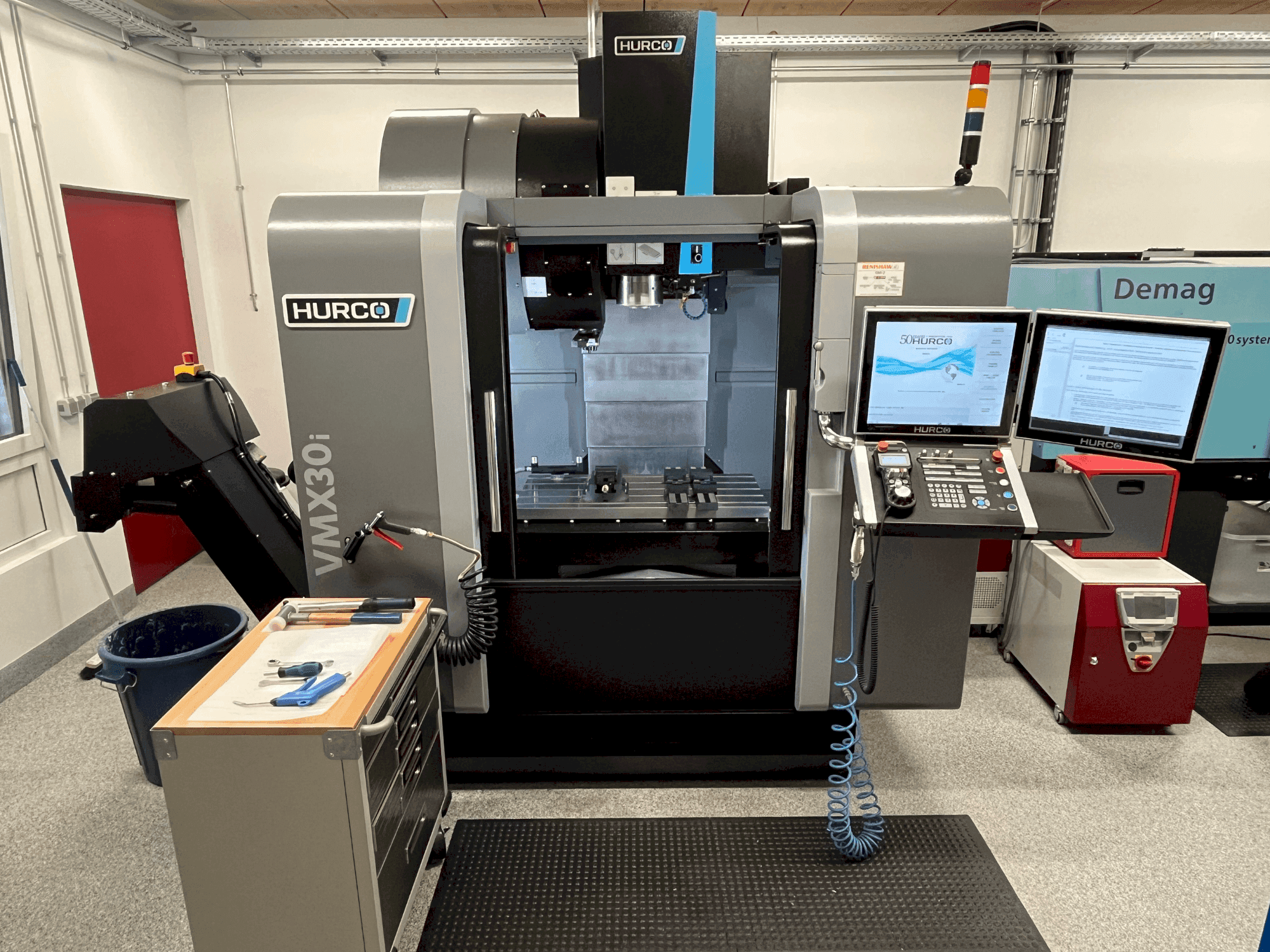

Hurco - VMX30iDE-MIL-HUR-2019-00002

Additional equipment

• 30 tool changer
• Laser bridge
• Accessories direct measurement
• Clamping devices
• Vice
• Probe
• 2 software units / (1 x plain text dialog programming on the machine + 1 x for ISO- / code programming by external programming device or CAD/CAM system)
• Pentium technology, SSD (solid-state drive) storage medium, / 2 GB RAM, Ethernet interface, USB interface, system-internal self-diagnosis, WINDOWS platform
• Chip splash guard cabin/Coolant system/Coolant spray gun/Flushing system to support chip removal/LED machine light in the work area
• Signal light for machine operating status/Set of machine shoes/High-pressure cooling system for coolant supply through the spindle: /Cooling lubricant type Emulsion/Coolant pressure 20 bar/Integrated hydraulic tool clamping system

Machine Benefits

Technical Machine Benefits

• On 1129 / spindle 213
• Frequncy 50 hz / largest motor 9 kva 12 amp / full load 24 kva 35 amp / interrupt capacity 10000 amps / max temp. 35 / short circuit current 20 kan / rms symmetrical 400 volt
• Max5 control unit with removable electronic handwheel / 2 x 19” lcd color screens (text + graphics) / network interface
• Adaptipath/trochoidal milling for higher cutting performance, controlled infeed and residual material detection/simulation graphics/tool and material library/pocket milling with islands/synchronous thread cutting (thread cutting without compensating chuck)/isnc extended nc mode/spindle cooler
• Workpiece position detection with probe and tool length measurement/calibration with laser: 007-4227-110/007-4227-09/workpiece touch probe: renishaw omp60/tool touch probe: renishaw laser nc4
• X-axis movement: 762 mm / y-axis movement: 508 mm / z-axis movement: 610 mm
