- ➤ Used HOLZHER CUT 70 6110 - Saw For Sale | gindumac.com

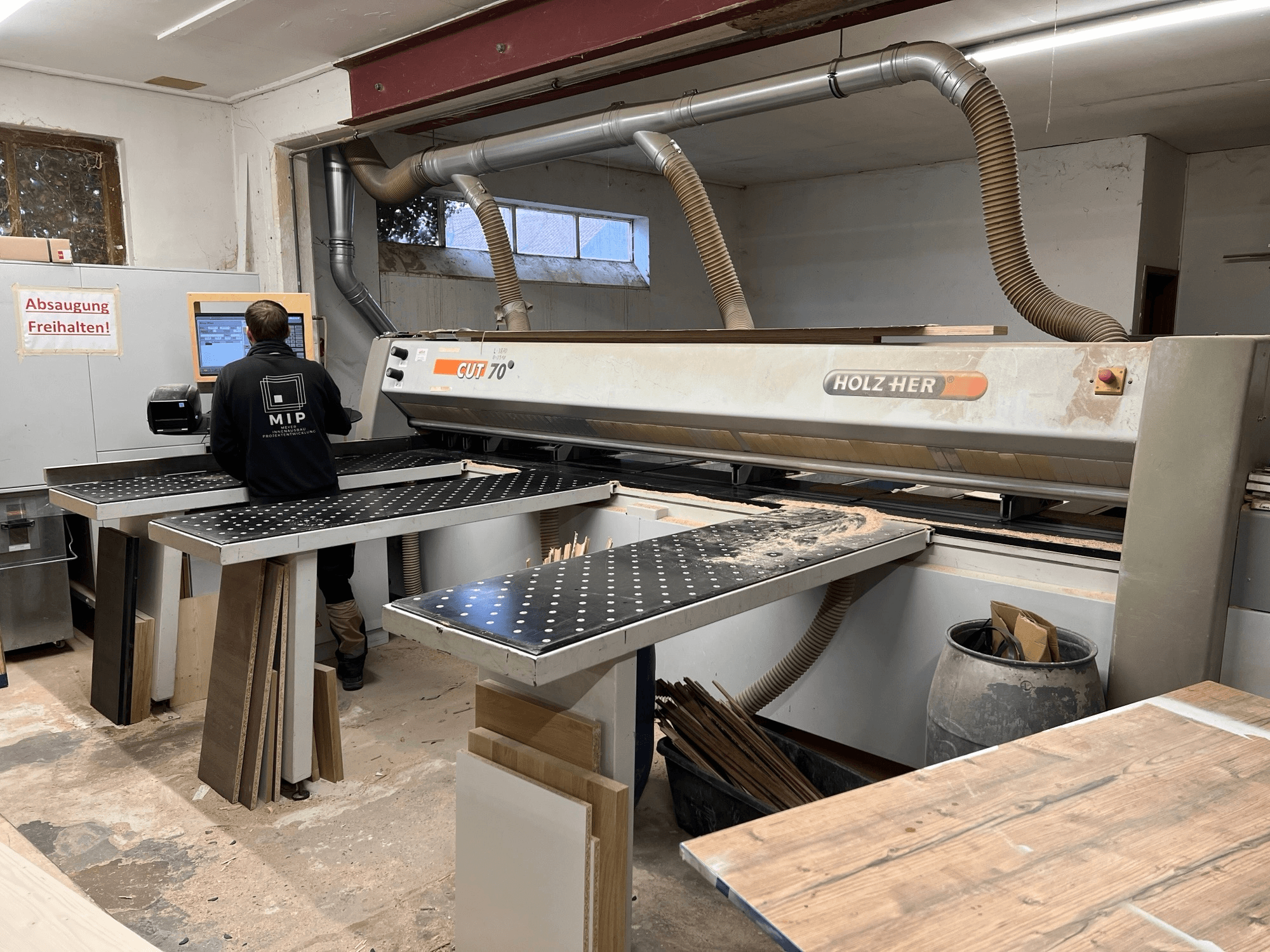

This HOLZHER CUT 70 6110 panel saw was manufactured in 2009. It features a cutting size up to 3900 × 3900 mm, a maximum cutting height of 70 mm, and saw blade projection of 82 mm. The main sawing unit has a motor power of 11 kW and a blade diameter of 350 mm. It supports a saw carriage and pusher speed of 0–70 m/min. Consider the opportunity to buy this HOLZHER CUT 70 6110 panel saw. Contact us for more information.
Übersicht
- Hersteller: HOLZHER
- jahr: 2009
- MODELL: CUT 70 6110
- anwendungstyp: Sägen
- Standort: Deutschland
- maschinentyp: Plattensäge
Zusätzliche Informationen
Workpiece
Cutting size: 3900 × 3100 mm or 3900 × 3900 mm
Max. cutting height: 70 mm
Max. saw blade projection: 82 mm
Sawing Unit
Motor power: 11 kW
Saw blade Ø: 350 mm
Rotational speed: 4070 rpm
Scoring Unit
Motor power: 1.1 kW
Saw blade Ø: 180 mm
Rotational speed: 6070 rpm
Feed / Carriage
Saw carriage & pusher speed: 0–70 m/min (continuous)
Return speed: 70 m/min
EU feed speed: 0–25 m/min
Media
Compressed air: 6 bar, 32 NL per cutting cycle
Dust extraction:
Connections: 1×120 mm (base machine), 3×120 mm (pressure beam)
Capacity: 4500 m³/h
Air speed: 30 m/s
Additional Equipment
Number of tables: 3
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
