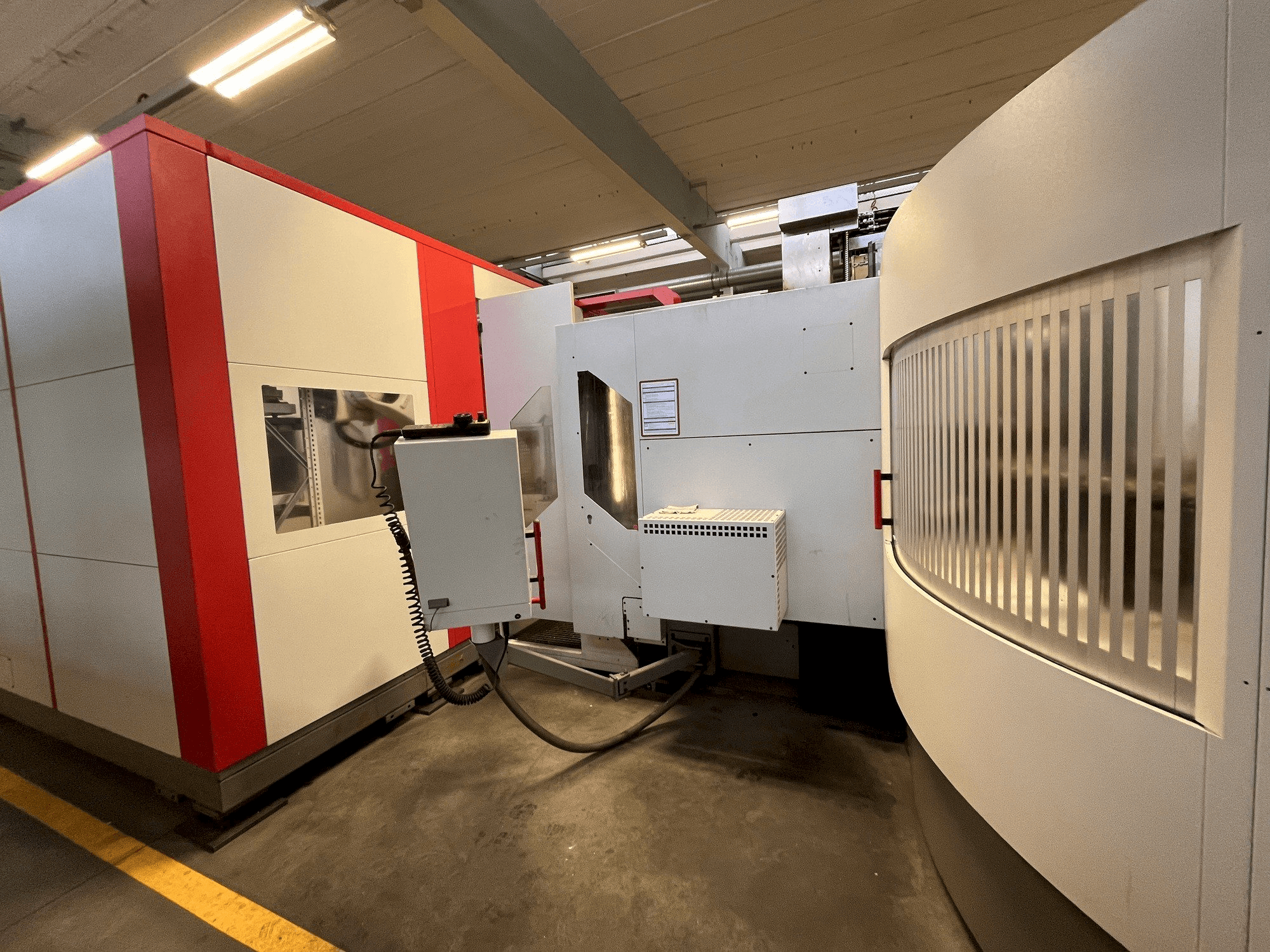

HERMLE - RS1 Robot SystemDE-MIL-HER-2009-00003

Additional equipment

• the cell comes with 25 pallets without vise 1 pallet on each machine and 23 on the automation
• come with Renishaw touch-probe
• Chip conveyor is included
• The inner coolant high pressure pump is not included

Machine Benefits

Qualitative Machine Benefits

• Robot kuka kr 150-2 2000:
• 6 axis, weight: 1267 kg, master computer that runs on windows 10, and soflex pcs run on windows xp. Pallet rack 300x300 with 24 places - 22 of which are pallets in the rack, 3 of which are power clamping blocks for clamping automatic clamps.
• 2 cubic, 1x cylindrical - 1x manual clamping block
• Pallet rack 400x400 with 18 spaces - of which 17 pallets are in the rack
• Raw material storage locations:
• 2x raw material storage areas for cubic parts, 60 spaces available per storage area. Raw material with the dimensions 50x15 can be loaded. - 2x raw material trays for cylindrical parts, 56 places available per tray. Parts with a 6mm spigot can be loaded.
• 2x additional gripper: 1x for cylindrical, 1x for cubic parts
• Kuka with 6 axes with a maximum pallet weight of 140 kg - kuka manual control unit raw material loading via external set-up station
• Soflex order management version 4. 27
• Master computer runs on windows 10, soflex pcs runs on windows xp

Technical Machine Benefits

• Rapid feed: 45000 mm/min - nc swivel rotary table diameter 280
• With erowa clamping system 160 mm throat dimension - mts base plate 320p/a 2-f. MediaÜ. 2-fold
• Rotary table - ikz - chip sorter
• Compressed air supply spindle center - automatic cabin door - status light
• Bed winding - manual cabin roof - losma extraction system
• Electronic handwheel - hinged belt conveyor - place additional magazine: 157
• Tool magazine: 157 slots, 6 fold feed through, automatic door, temperature compensation
• Number of loading and unloading bays: 8
• Tool measurement: blum wz breakage/measurement a1
• Touch probe: 2x renishaw omp 40-2ls, plc extension 2nd measuring probe
