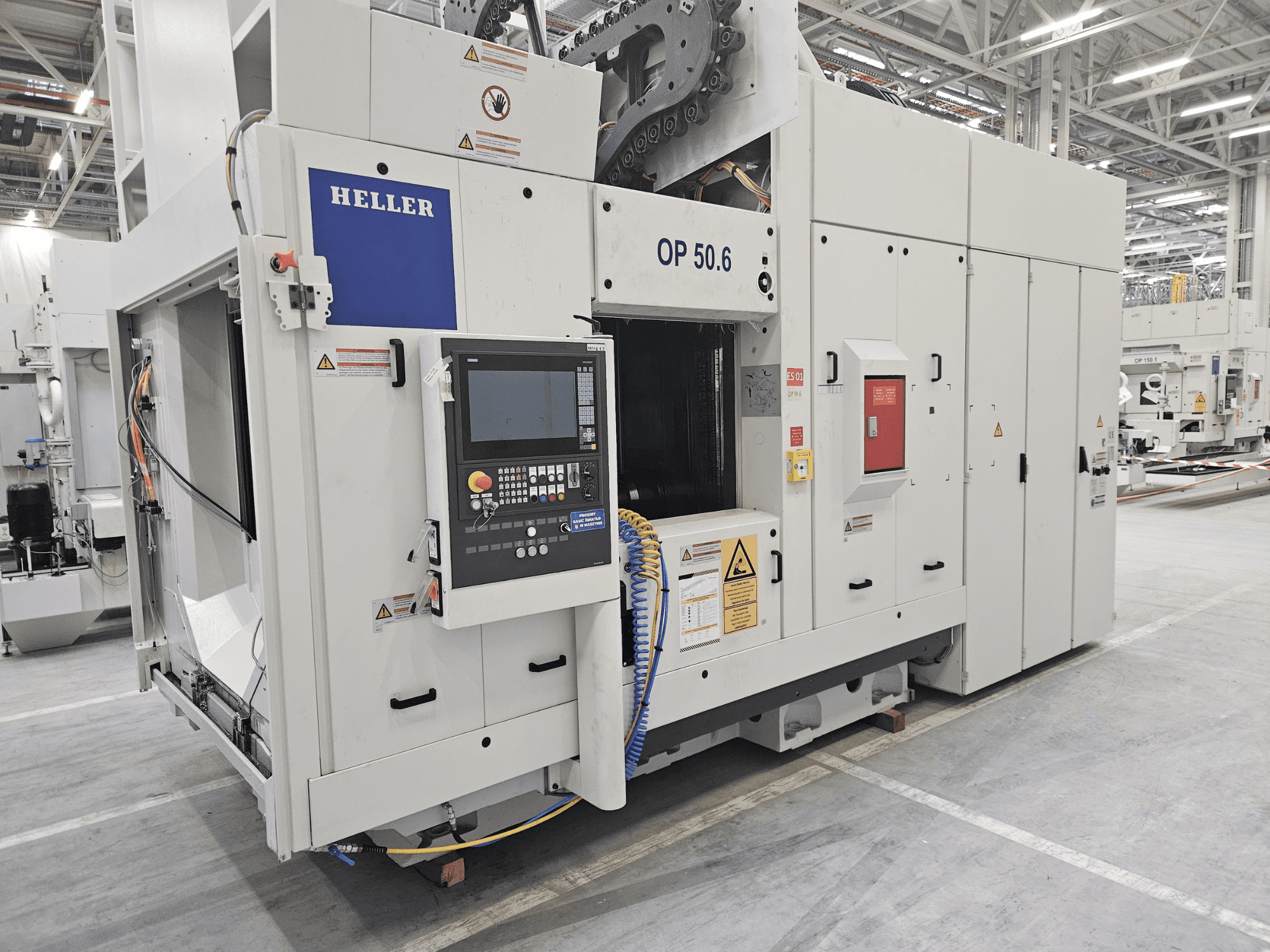

HELLER - MC 20PL-MIL-HEL-2019-00002

• Working area:

  • Feed forces (X/Y/Z): 10,000 N

• Speeds and dynamics:

  • Rapid traverse X/Y/Z: 60,000 mm/min

  • Acceleration: X = 7 m/s², Y = 8 m/s², Z = 6 m/s²

• Spindle / machining unit (HSK-A63):

  • Tool interface: HSK-A63

  • Spindle diameter in front bearing: 70 mm

• Tool management:

  • Tool magazine type: HSK-A63

  • Number of tool positions: 44

  • Max tool weight with all pockets occupied: 6 kg

  • Max tool length: 550 mm

  • Max tool diameter:

    • With all pockets occupied: 120 / 80 / 80 mm

    • With adjacent pockets free: 150 mm

  • Minimum chip-to-chip time (VDI): approx. 3.3–4.4 s

• Rotary axis:

  • A-axis with rotary table diameter: 520 mm

  • Interference circle diameter (A-axis): 1260 mm

  • A-axis speed: 17 rpm

  • Indexing resolution: 360,000 × 0.001°

  • Indexing accuracy (VDI/DGQ 3441): 12 arc sec

• Measuring system: Direct, absolute linear scales

• Utilities:

  • Power supply: 400 V / 50 Hz

  • Total connected load: approx. 27–30 kVA

  • Compressed air requirement: 4.5–6 bar

• Condition and documentation:

  • Machine is in very good technical condition

  • Complete service documentation available

Additional equipment

• Dedicated loading and unloading system
