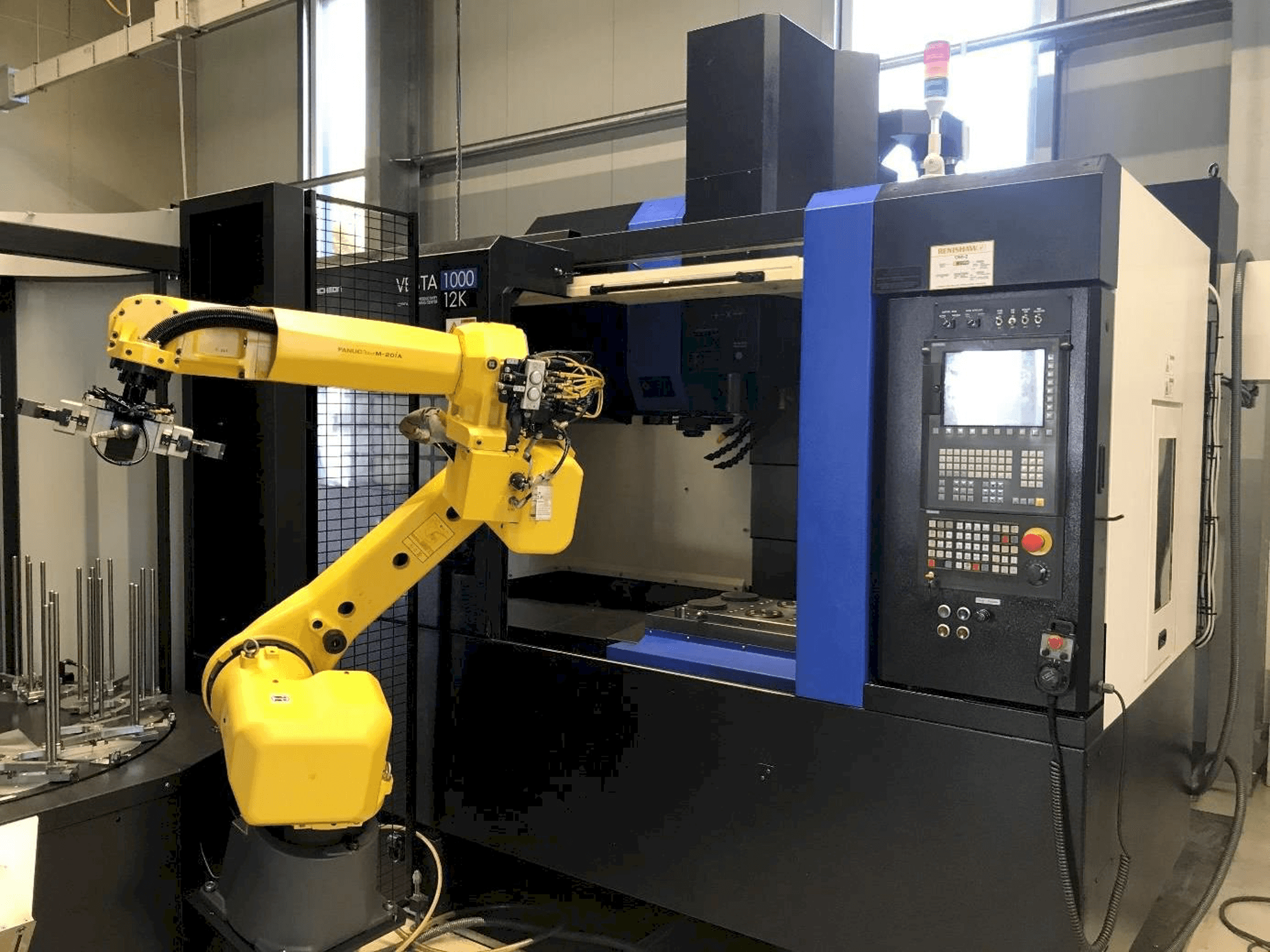

HALTER - Automation Load Assistant S-180-20DE-ROB-HAL-2018-00001

Machine Benefits

Qualitative Machine Benefits

• Maximum load capacity of the robot arm 20kg
• Graphically supported programming in 12 steps
• Adjustable blow-out function- 2-finger double gripper from schunk
• Loading and unloading of eccentric workpieces
• Automatic program storage
• Program integration of free programming cycles possible
• Graphic display of machine utilization
• Swiveling control panel with 15" touchscreen

Technical Machine Benefits

• Fanuc 6 axis robot arm: 20/ 35 kg
• Max workpiece: 40 mm x 40 mm
• Maximum height of workpiece: 175 mm
• Maximum total weight on rotating table: 1250 kg
• Maximum stacking height: 350 mm
• Rotating loading
• High safety full cladding
• Workpiece turning function
• Collecting tray for residual coolant
• Standard robot interface for all cnc machines
