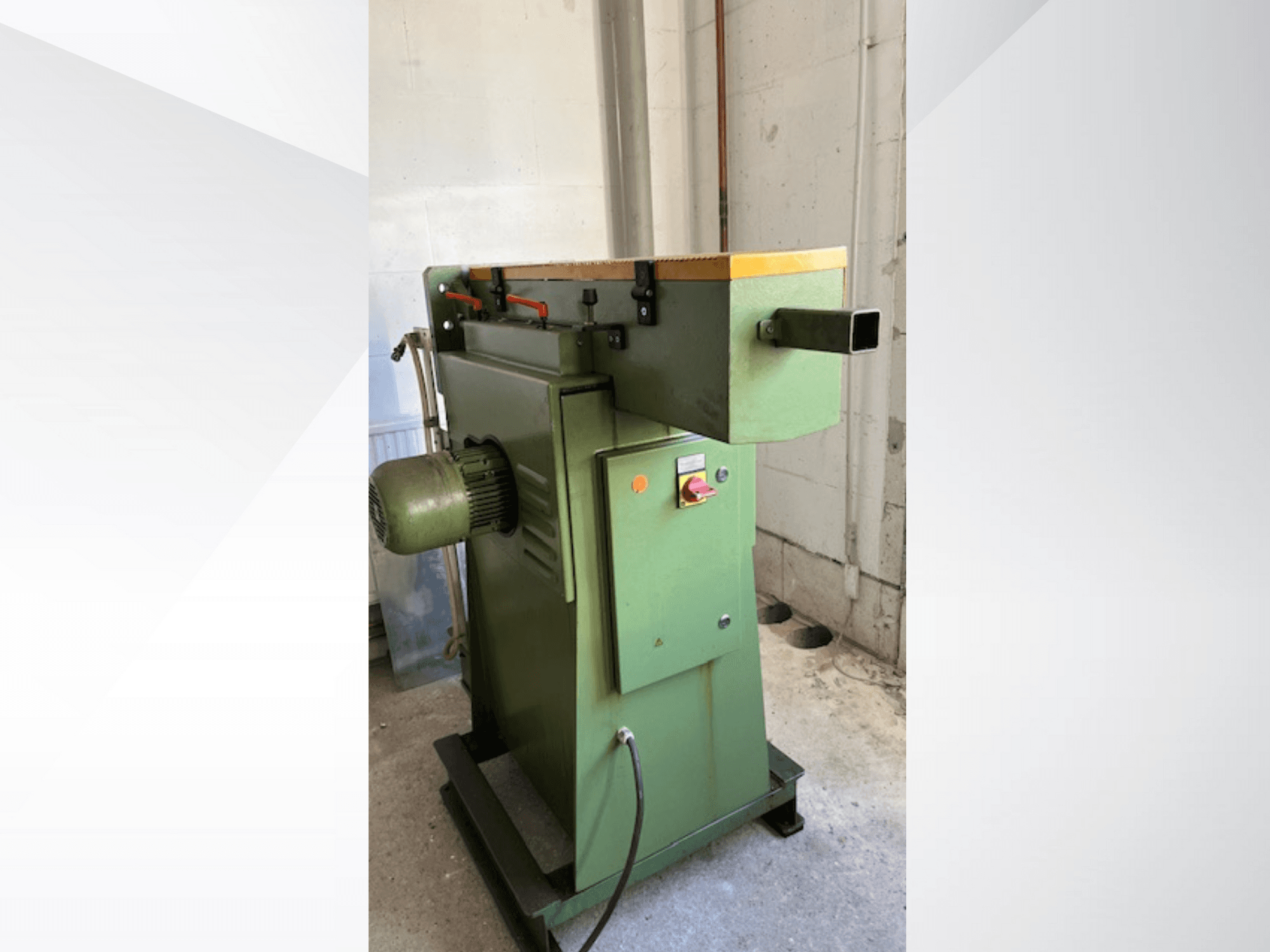

This HAHNDORF REWK 86/14 was manufactured in 2007. It is a keyway punch machine capable of slotting with a maximum stroke of 300 mm and a minimum of 60 mm. It supports a maximum groove width of 34 mm and features cutting speeds of 3 m/min for both forward and return strokes. If you are looking to get high-quality slotting capabilities consider the HAHNDORF REWK 86/14 machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: HAHNDORF
- jahr: 2007
- MODELL: REWK 86/14
- anwendungstyp: Sonstige Werkzeugmaschinen
- Standort: Deutschland
- maschinentyp: Werkzeugmaschine
Zusätzliche Informationen
Slotting Maximum Stroke: 300 mm
Minimum Stroke: 60 - 80 mm
Maximum Groove Width: 34 mm
Broaching Maximum Groove Width: 14 mm
Maximum Broaching Tool Length: 640 mm
Cutting Speed Forward Stroke: 3 m/min
Cutting Speed Return Stroke: 3 m/min
Ram Insert No. 1 (13 Ø x 145 mm): Stroke length up to 100 mm
Ram Insert No. 2 (21 Ø x 180 mm): Stroke length up to 150 mm
Ram Insert No. 3 (31 Ø x 210 mm): Stroke length up to 200 mm
Slotting Bar (34 Ø x 720 mm): Stroke length up to 300 mm
No clamping shank measured in provided inserts
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
