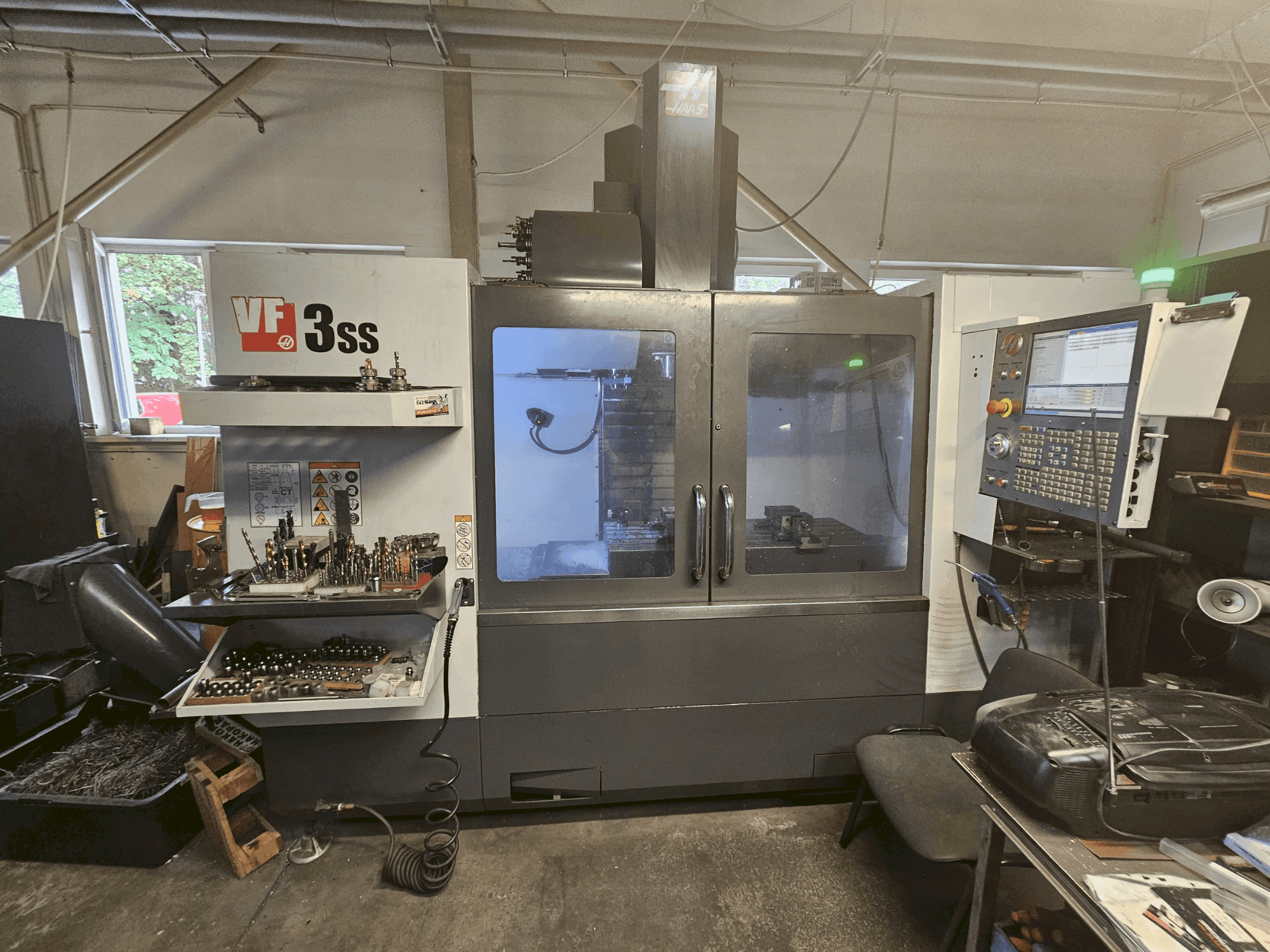

HAAS - HAAS VF-3SSPL-MIL-HAA-2017-00002

Machine Benefits

Technical Machine Benefits

• Table size: 1219 mm (length) x 457 mm (width)

• Number of tool pockets: 24

• Max tool diameter (side positions empty): 127 mm

• Max spindle torque: 122 nm

• Power supply: 3x400v, 50 hz

Extra Information

This is 3+1 axis machine and HRT 210 rotary axis is included in the offer

Cooling through-spindle 21 bar

working hours: power ON: 14270h, cutting: 4757h

Options included

• WIPS-R – Wireless probing system

• P-COOL – Programmable coolant nozzle positioning

• AUGER – Screw-type chip conveyor

• ACF – Additional 25 µm filtration system

• TSC – Through-spindle coolant system, high-pressure pump (21 bar, 22 l/min)

• 4AXD – Machine preparation (interfaces, cabling) for connecting a rotary table (without the table itself)

• HRT210 – Haas HRT 210 rotary table with a 210 mm diameter plate

• HRT210 HRT-FIX-KIT – Mounting kit for installing a rotary or tilting rotary table
