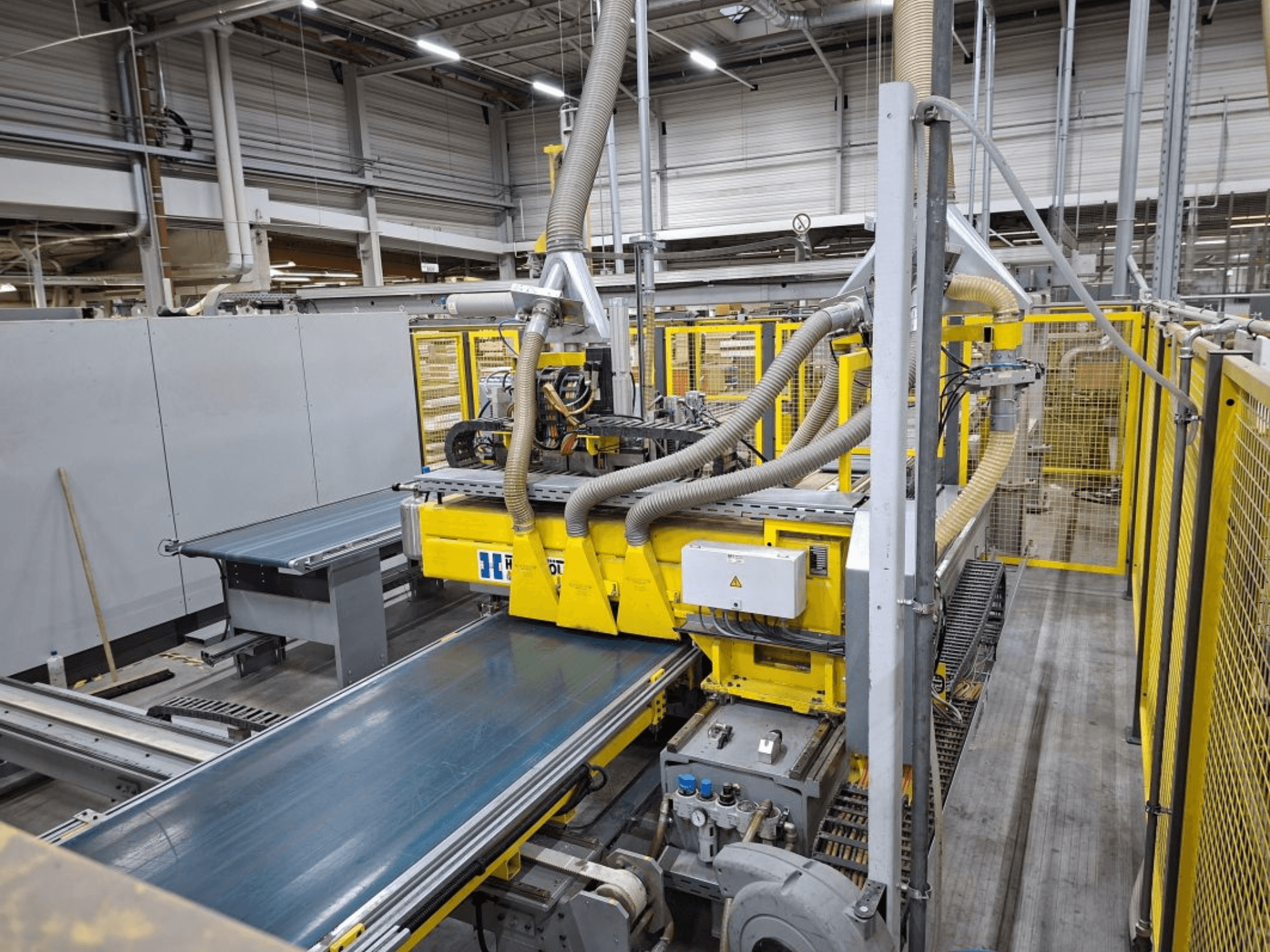

Hüttenhölscher - Drilling rigDE-BOR-HUT-2010-00001

Used drilling system consisting of a 6-station loading gantry

2-axis gantry robot

Y/Z axes with servo motors

Travel distances: Y-axis 8500 mm, Z-axis 1500 mm

Suction crossbeam with four-circuit vacuum supply

Vacuum generation by means of ejector

Length: 300 - 2250 mm

Width: 350 - 710 mm

Thickness: 16 - 25 mm

Stack height: Max. 1000 mm (60 parts) including protective plate

Drilling gear: Two 16-spindle drilling gears

Callable spindles: 8000 rpm

Groove saw (support 1) for cutting special rear wall grooves

Sawing unit with tool holder, speed control via frequency converter

2x milling spindles right/left at front edge (support 1)

Base frame as welded construction with machined screw-on surfaces

Support can be moved in the X direction by means of a servomotor

Drilling gear a=32 mm, adjustable with frequency converter, drill chuck Ø 10h7 with grub screw

4 stacking stations

1 hand rest station / automatic - manual feeding

1 removal station / automatic - manual removal

Floor roller conveyor / stack feed

4 roller conveyor lines: 930 mm wide x 3600 mm long

AH 300 mm

Feeding / removal: manual cross transfer carriage

Transport section: 950 mm wide x 4100 mm long

Integrated side stop

Manual feeding

Toothed belt section: 900 mm wide x 2500 mm long

Pneumatic lift for toothed belt conveyors

Pneumatic double clamping cylinders, controlled by ball screw and servo motor

Drilling gear a=32 mm, adjustable with frequency converter

Pneumatically pilot-controlled working position

Transfer shuttle: Toothed belt section 900 mm wide x 2500 mm long

Return transport section: 950 mm wide x 4000 mm long

Pneumatic stopper

Horizontal stroke approx. 2500 mm by means of three-phase motor

Rotation by three-phase motor by +/- 90°

Discharge stations / automatic removal

Positioning of cabinet parts by encoder

Protective system for feeding

45 m protective fence with 3 access doors

2 sliding doors for feeding the floor roller conveyors
