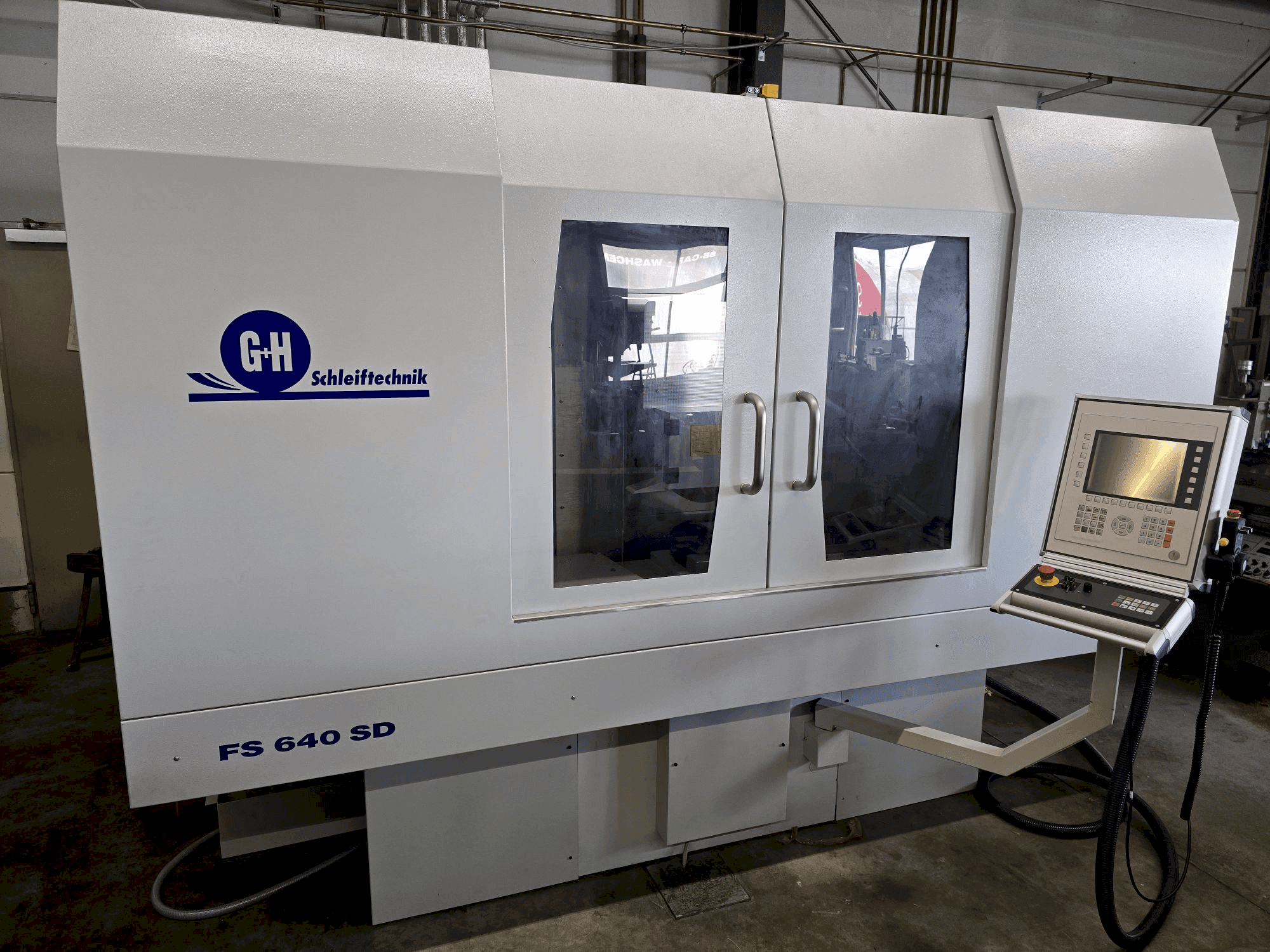

GEIBEL & HOTZ - FS 640 SD DE-GRI-GEI-2024-00001

Additional equipment

• Integrated folding dresser with 3 variants, including diamond dressing tools
• Software for various grinding wheel contours and lateral dressing of the wheel
• Universal Paper Band Filter System: Tank capacity: approx. 140 l / Tank capacity: approx. 140 l / Dimensions: 1220 x 730 mm / Dimensions: 1220 x 730 mm / Pump: 20 l/min at 2 bar / Includes sludge tank and one roll of filter paper (width: 510 mm)
• Compact Air Cleaning Unit for coolant mist extraction
• LED Machine Light: 48 LEDs, 16 W, 24 V, luminous flux 1140 lm, daylight white (5600 K)
• Mobile Balancing Device with optical operator guidance
• Grinding Wheels: 1x (300 x 50 x 76.2 mm): Mixed corundum, grain 46/ 2x (300 x 30 x 76.2 mm)

Machine Benefits

Qualitative Machine Benefits

• Especially suited for demanding grinding tasks where precision and surface quality are essential
• Warranty: valid until approximately october 2025
• Enhanced guideway accuracy: scraped guideways
• Pneumatic folding unit: folding range 90°, mounted on machine table, includes prism arm and single-point diamond (0. 75 ct, mk0), requires compressed air (6 bar)

Technical Machine Benefits

• Grinding area: 600 x 450 mm
• Application: precision grinding of surfaces and form parts
• Functions: automatic infeed, programmable grinding cycles, variable grinding speed
• Machine structure: robust and low-vibration cast body for maximum precision
• Special features: high grinding accuracy and surface quality, ergonomic operation via modern control system, easy integration of additional options such as automatic balancing and oil separation
• Special features: high grinding accuracy and surface quality, ergonomic operation via modern control system, easy integration of additional options such as automatic balancing and oil separation
• Grinding wheel holders: 3 holders with bore 76. 2 mm, clamping width 20–30 mm, max wheel diameter 300 mm
