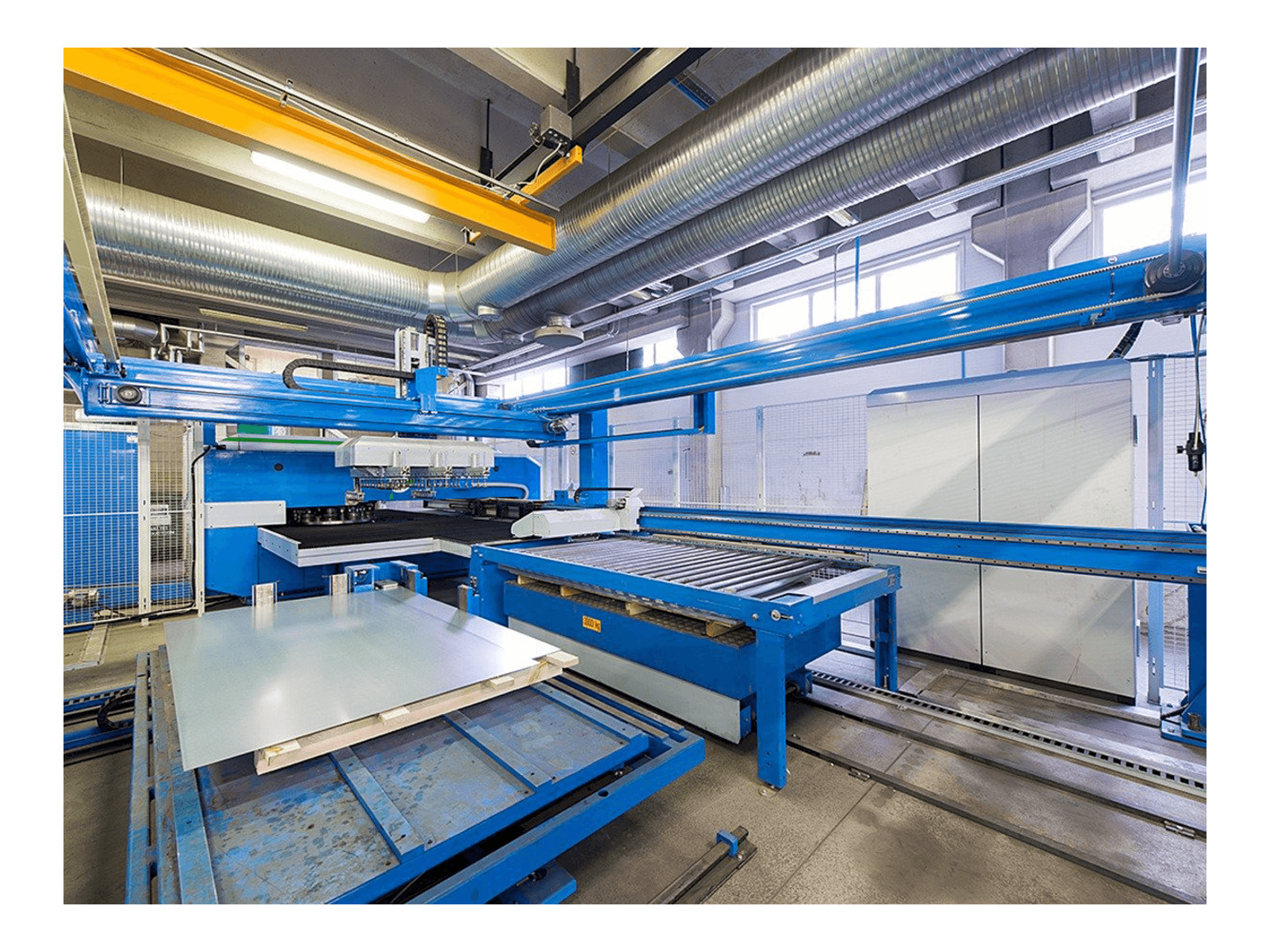

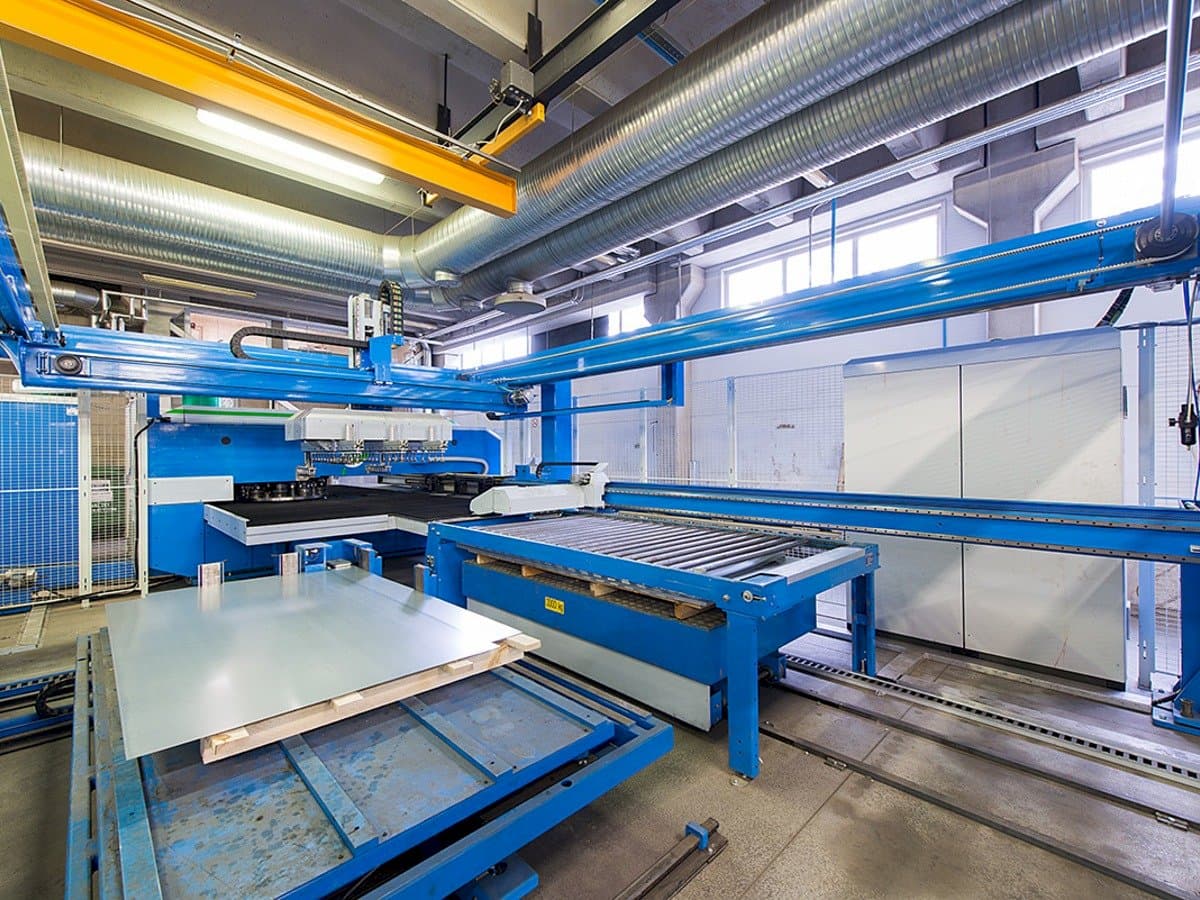

Finn-Power - E 5 LuiEE-PUN-FIN-2005-00001

Machine Benefits

Qualitative Machine Benefits

• Good working condition
• Punching speed, max. Cutting with scissors (1... 3 mm) - 480 min-1 25 mm between the holes — 310 min–1 250 mm between the holes — 140 min–1
• Punching accuracy: hole center deviation (x/y axis), max. - 0. 1 mm deviation of the distance between the centers of the holes (x/y axes), max. - ±0. 05 mm angular deviation (cnc index tool), max. — ±0,1°

Technical Machine Benefits

• Punching — electric servo motor
• The length of the stroke of the piston when punching — with automatic automation
• The depth of the stroke during molding — programmable in increments of 0. 001 mm
• Forming stroke length-programmable in 0. 001 mm increments
• Tool revolver: the number of stations in the revolver — 20 pcs.
• Tool — thick turret punching diameter-max. 89 mm the speed of the gun is 30 rad/min. The tool change time is 1-3 seconds.
• The index tool: number of index stations, max. Standard — 2 pcs. (max. 10 pcs. ) punching diameter, max. - 89 mm tool rotation speed, max. — 58 rad/min.
• Forming cylinder: top forming force-200 kn the height of the die stroke during forming is programmable with increments of 0. 001 mm (max. 12 mm)
• Sheet clamps: pneumatic clamps — 3 pcs. Sheet size, max. (x/y) - 2530/1270 mm
• Axis speed (x-axis), max. - 80 m / min, axis speed (y-axis), max. - 60 m / min

Machine History

Material thickness

0. 5 - 8 mm

Material type

Steel
