FANUC - ROBOCUT C600IBIT-EDM-FAN-2016-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used FANUC ROBOCUT C600IB For Sale | gindumac.com

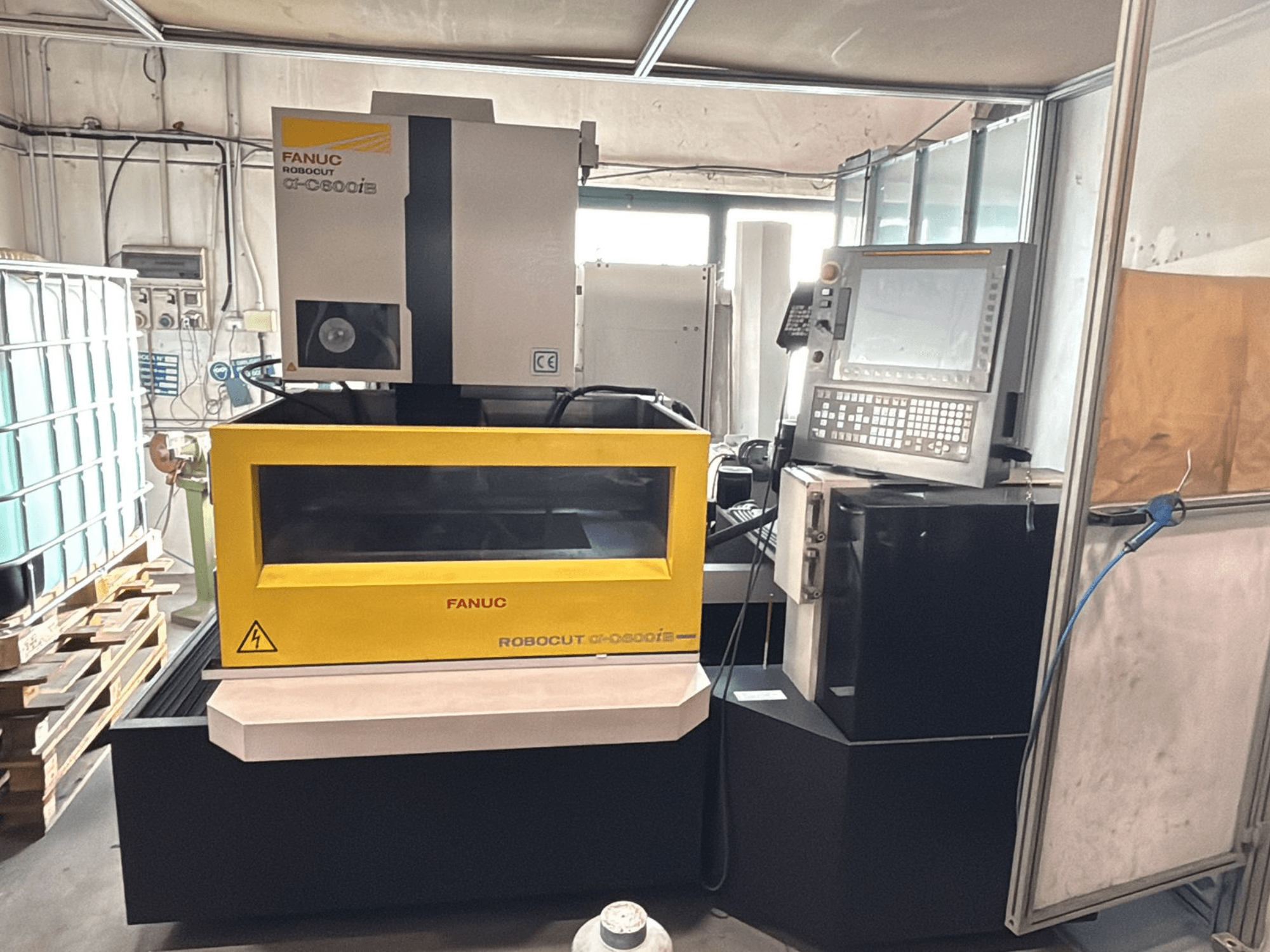

This 5-axis FANUC ROBOCUT C600IB was manufactured in 2016, featuring a maximum workpiece size of 1050 × 820 × 400 mm and a weight capacity of 1000 kg. It includes XY table travel of 600 × 400 mm and Z-axis travel up to 400 mm. The machine supports a wire diameter range of 0.10 to 0.30 mm and is controlled by the FANUC 31i-WB system. Consider the opportunity to buy this FANUC ROBOCUT C600IB wire edm machine. Contact us for more information.
Übersicht
- Hersteller: FANUC
- jahr: 2016
- MODELL: ROBOCUT C600IB
- anwendungstyp: Erodieren
- Standort: Italien
- maschinentyp: Drahterodiermaschine
Zusätzliche Informationen
Maximum workpiece dimensions: 1050 × 820 × 300 mm
Maximum workpiece weight: 1000 kg
XY table travel: 600 × 400 mm
Z-axis travel: 310 mm
UV-axis travel: 200 × 200 mm
Table Dimensions (Z-axis 400 mm option)
Z travel: 400 mm
Max workpiece (standard door): 1050 × 820 × 400 mm
Max workpiece (automatic door): 1050 × 775 × 300 mm
Maximum taper angle: ±30° / 150 mm
Maximum taper angle with 45° guide: ±45° / 70 mm
Minimum programming increment: 0.0001 mm
Wire diameter: Ø 0.10 – Ø 0.30 mm
Maximum wire weight: 16 kg
Optional 30 kg wire feed unit
Machine footprint: 2440 × 2680 mm
Weight: approx. 3000 kg
Acoustic noise: LpA: 64 dB / LpCpeak: 81 dB
Power supply: AC 200V ±10% (3-phase, 50/60 Hz)
AC 220V ±10% (3-phase, 60 Hz)
Power consumption: 13 kVA
Air supply: Pressure: 0.5–0.7 MPa
Flow: 100–110 L/min
Connector: Rc1/4
Environment: Temperature: 15–30°C (20±1°C recommended for high precision)
Humidity: ≤75% RH
Clean, oil-mist-free & dust-free environment required
Grounding: Type C grounding (≤10 Ω), independent from other machines
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
