- ➤ Used Euromac MTX Flex 6 Hybrid For Sale | gindumac.com

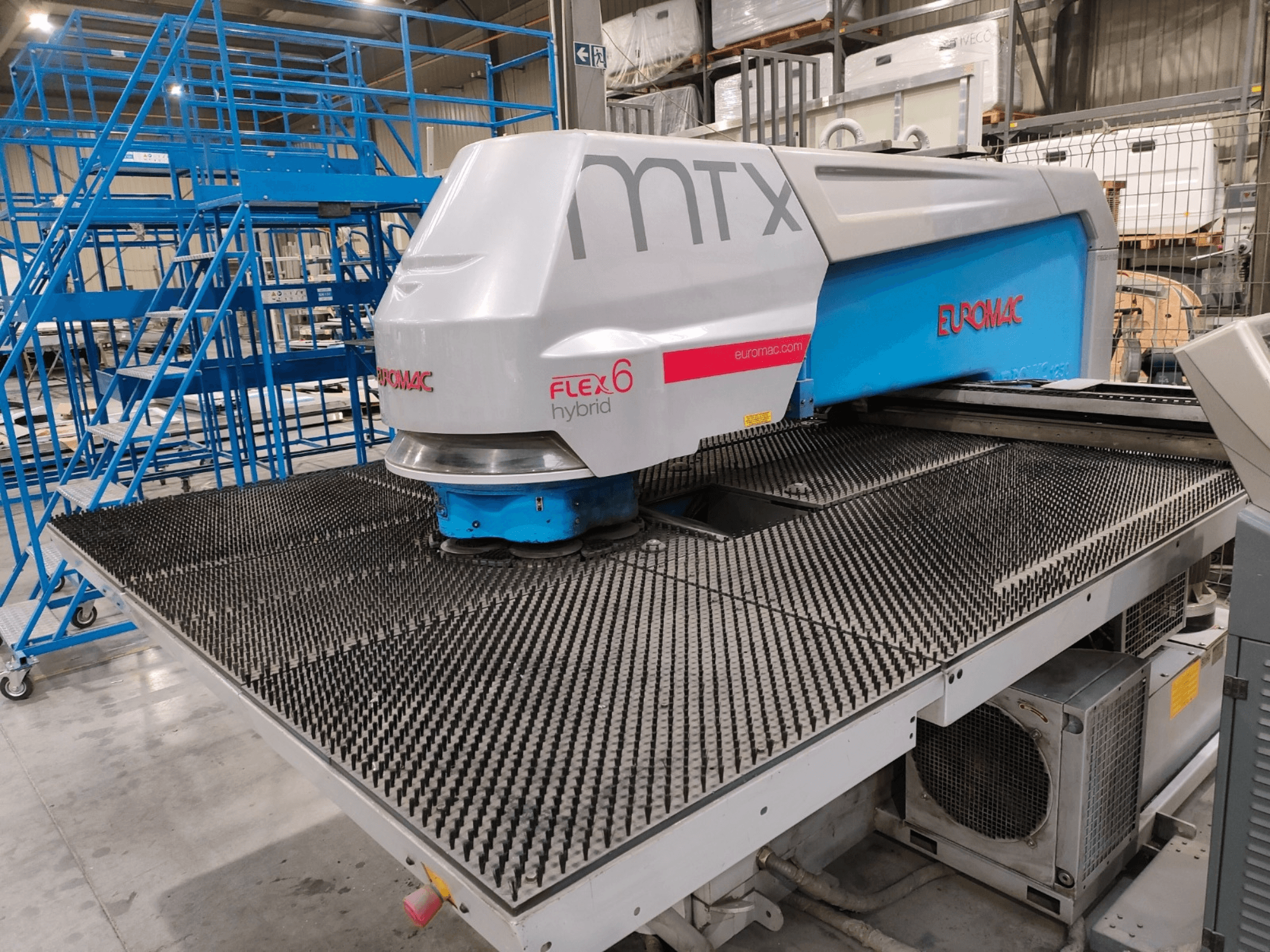

This Euromac MTX Flex 6 Hybrid was manufactured in 2013. It features a maximum punching force of 300 kN and can handle sheet weights up to 200 kg. Equipped with a hydraulic system controlled by a servomotor, it ensures precision and efficiency. The machine supports automatic repositioning up to 10000 mm and has a maximum punching diameter of 85 mm. Ideal for high-quality punching capabilities. Contact us for more information about this machine.
Übersicht
- Hersteller: Euromac
- jahr: 2013
- MODELL: MTX Flex 6 Hybrid
- anwendungstyp: Stanzen
- Standort: Polen
- maschinentyp: CNC-Stanzmaschine
Technische Daten - Euromac MTX Flex 6 Hybrid
Maße
- Maschinengewicht: 6500 kg
Technische Spezifikation
- Stanzkraft: 300 Kn
Zusätzliche Informationen
Y-axis stroke with multitool/single-tool: 1250 / 1300 mm
X-axis stroke: 1250 / 1300 mm
Automatic repositioning: up to 10000 mm
Punch stroke adjustment range: 0.1–31 mm
Hydraulic system with servomotor control: standard
Punching accuracy: ±0.05 mm
Shape repeatability accuracy: ±0.1 mm
Autoindex rotation speed: 174 rpm
Maximum strokes per minute:
Punching at 20 mm pitch: 375 1/min
Nibbling at 1 mm pitch: 1000 1/min
Marking: 2000 1/min
Maximum sheet weight at reduced speed: 200 kg
Maximum punching diameter (Autoindex stations): 85 mm
Hydraulic tank capacity: 135 liters
Installed power: 8.5 kW
Average power consumption: 4.5 kW/h
Workpiece discarding trap: 350 × 350 mm
Overall dimensions: 2240 × 3630 mm
Safety light curtains are included
The machine is offered without tools
Status: The machine is currently disconnected, but can be connected and inspected. It is fully functional.
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
