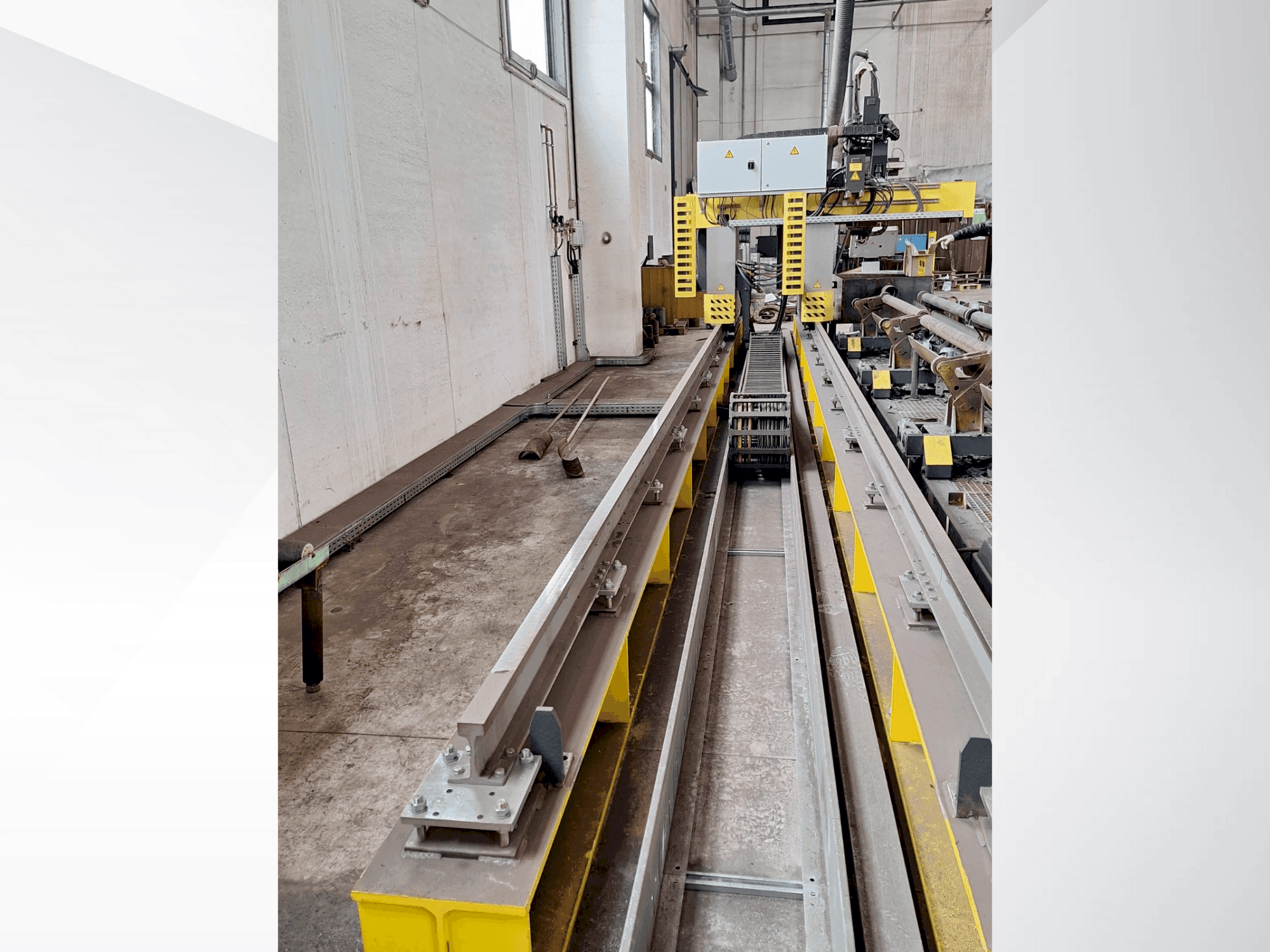

ESAB - SUPRAREX 3100IT-CUT-ESA-2020-00001

Additional equipment

• Cutting with Bevel and V and Y Bevels
• X-axis with a guide length of 11,000 mm and dual motorization
• 1 synchronized axis spindle for tube cutting1 synchronized axis spindle for tube cutting
• 3 tube support carriages manually positioned via trapezoidal screw
• 1 carriage for the ESAB iSeries300 plasma generator with a maximum power of 300A
• 1 VBA WRIST bevel cutting unit
• Plasma torch collision protection system
• Torch height control with arc voltage and touch sensor for bevel cuts
• 1 safety system made with photocells
• 1 ESAB PIPE CUTTING programming software

Machine Benefits

Qualitative Machine Benefits

• Iseries300i plasma generator features:rated current output: 300a
• Current adjustment range: 5/300a
• Supplied voltage: 180v
• Power supply: 380v 50/60hz
• Duty cycle at 40°c: 100%
• Esab vision t5 cnc with an 18. 5" color touch screen monitor (glove-friendly), including the opwizard application

Technical Machine Benefits

• Maximum tube length: 8000 mm
• Tube diameter: 100 mm - 750 mm
• Tube thickness: 3 mm - 20 mm
• Cutting with bevel and v and y bevels
• Flat cutting table equipped with slats, dimensions 1,500 x 1,000 mm
• Manuals and ce certification
• Tangential control during cutting
• Ability to create v or y grooves
• Plasma gas options: air/o2/ar-h2/n
• Shielding gas options: air/n2/o2/h2o

Extra Information

Machine still under power
