Engel - e-motion 2440/380 TPL-INJ-ENG-2014-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Kunststoffverarbeitungs-Maschinen
- ENGEL e-motion 2440/380 T

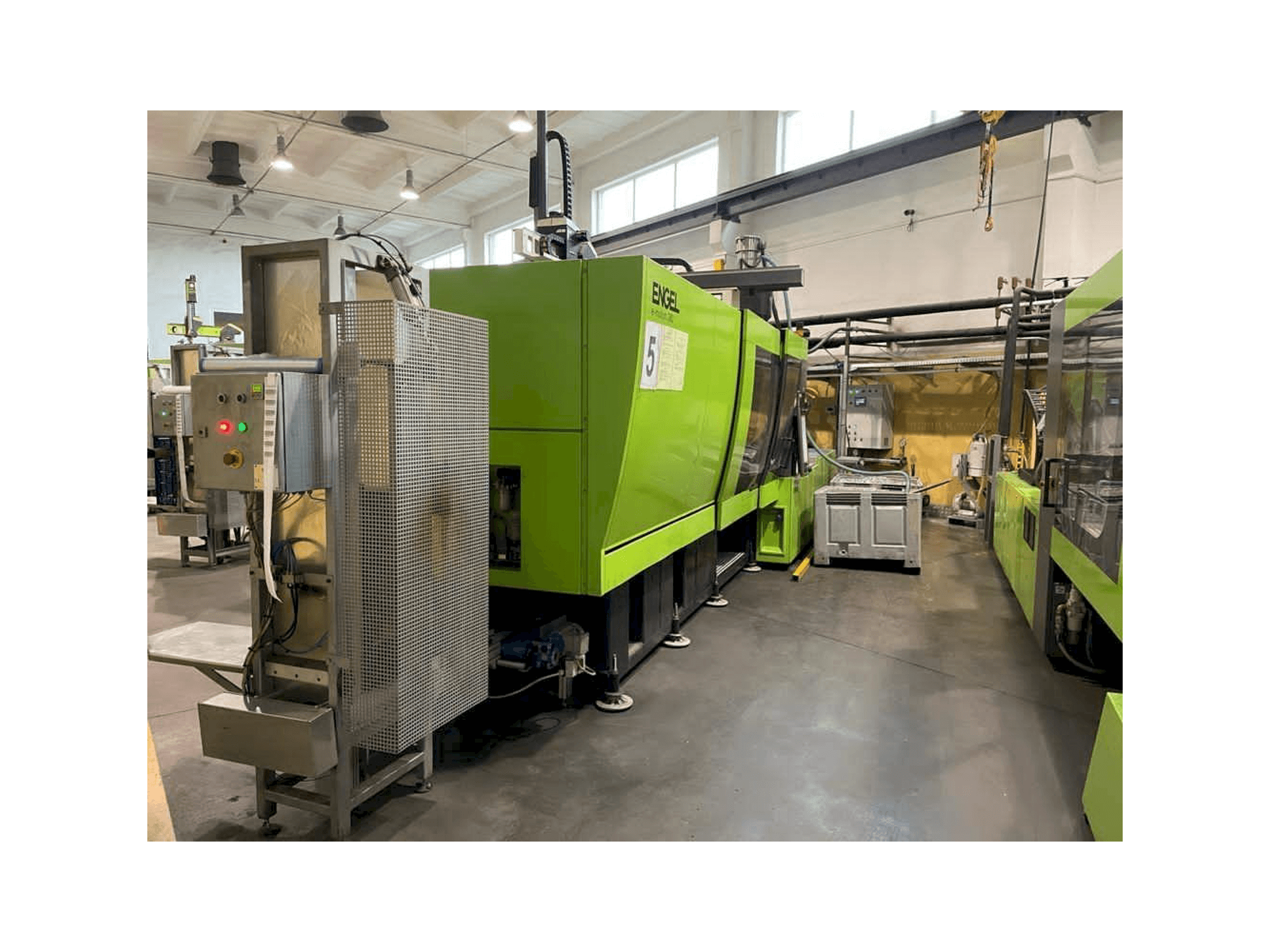

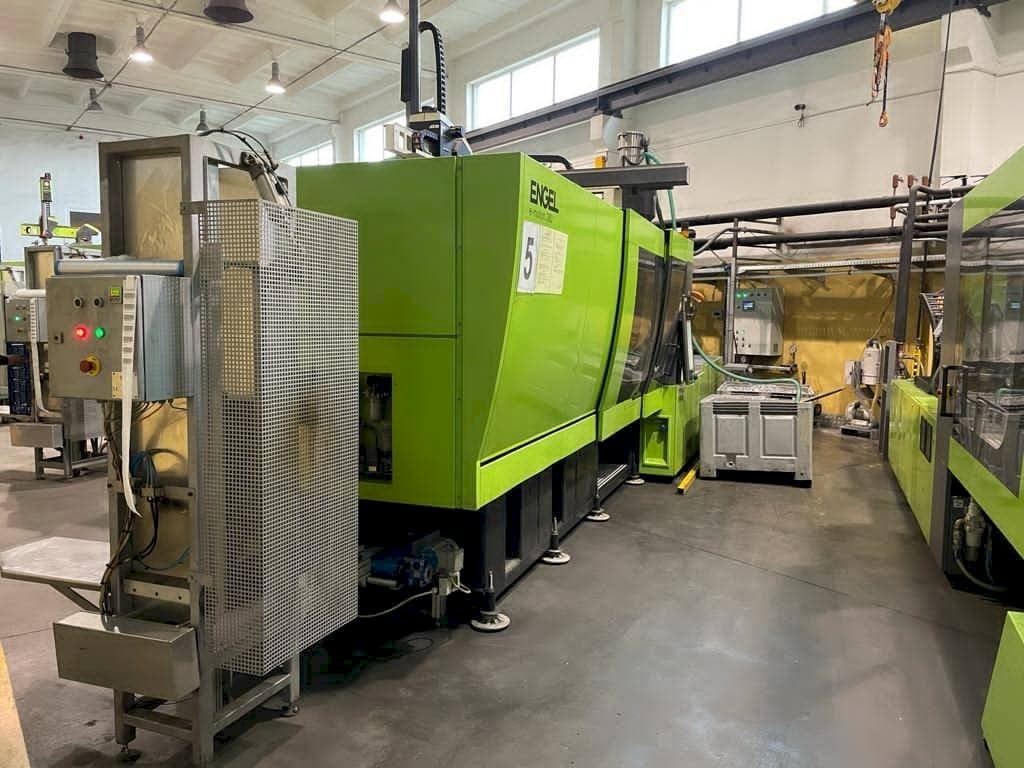

This ENGEL e-motion 2440/380 T Injection Moulding Machine was built in Austria in the year 2014. It has a record of 46781 working hours. This machine works through a Microcomputer CC300 of 21,5" full-HD color touch-screen. It incorporates a clamping force of 3800 kN and an opening stroke 700 mm. This machine comes equipped with a new Engel Viper 20 robot. It is a highly efficient injection unit, which ensures ultra-fast injection and it is all-electric and energy efficient. This machine is still at production and includes its full service documentation and manuals.
Übersicht
- Hersteller: Engel
- jahr: 2014
- MODELL: e-motion 2440/380 T
- Produktionsstunden: 46781
- anwendungstyp: Spritzgießen
- Standort: Polen
- maschinentyp: Elektrische Spritzgießmaschine
Technische Daten - Engel e-motion 2440/380 T
Maße
- Maschinentiefe: 3208 mm
- Maschinenhöhe: 5039 mm
- Maschinengewicht: 14900 kg
Technische Spezifikation
- Klemmkraft: 3800 kN
Zusätzliche Informationen
Additional equipment
- Engel Viper 20 robot – new, not used
Machine Benefits
Qualitative Machine Benefits
- The machine is still at the production and can be checked for request.
- Full service documentation and manuals.
- Engel viper 20 robot included in the offer, it was not use at the production.
Technical Machine Benefits
- Dosing path: 310 mm
- Column spacing: 780 x 780 mm
- Nozzle stroke: 500 mm
- All-electric and energy efficient.
- High performance and precision. Fast, dynamic and highly precise movements through a five-point toggle lever clamping system with low friction platen guidance on precision linear bearings. Highly efficient injection unit ensures ultra-fast injection
- Maximum energy efficiency due to the consistent use of servo-electric drive technology with maximum effectiveness
- Platens in standard size - type of euromap
- Platens with locating diameter in standard execution euromap - centering 160 mm
- Direct drive ejector bg4 max force: 120 kn
- S8 barrier screw, geometry g16 r with r-mixing head - diameter 70 mm - screw length l/d 24
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
