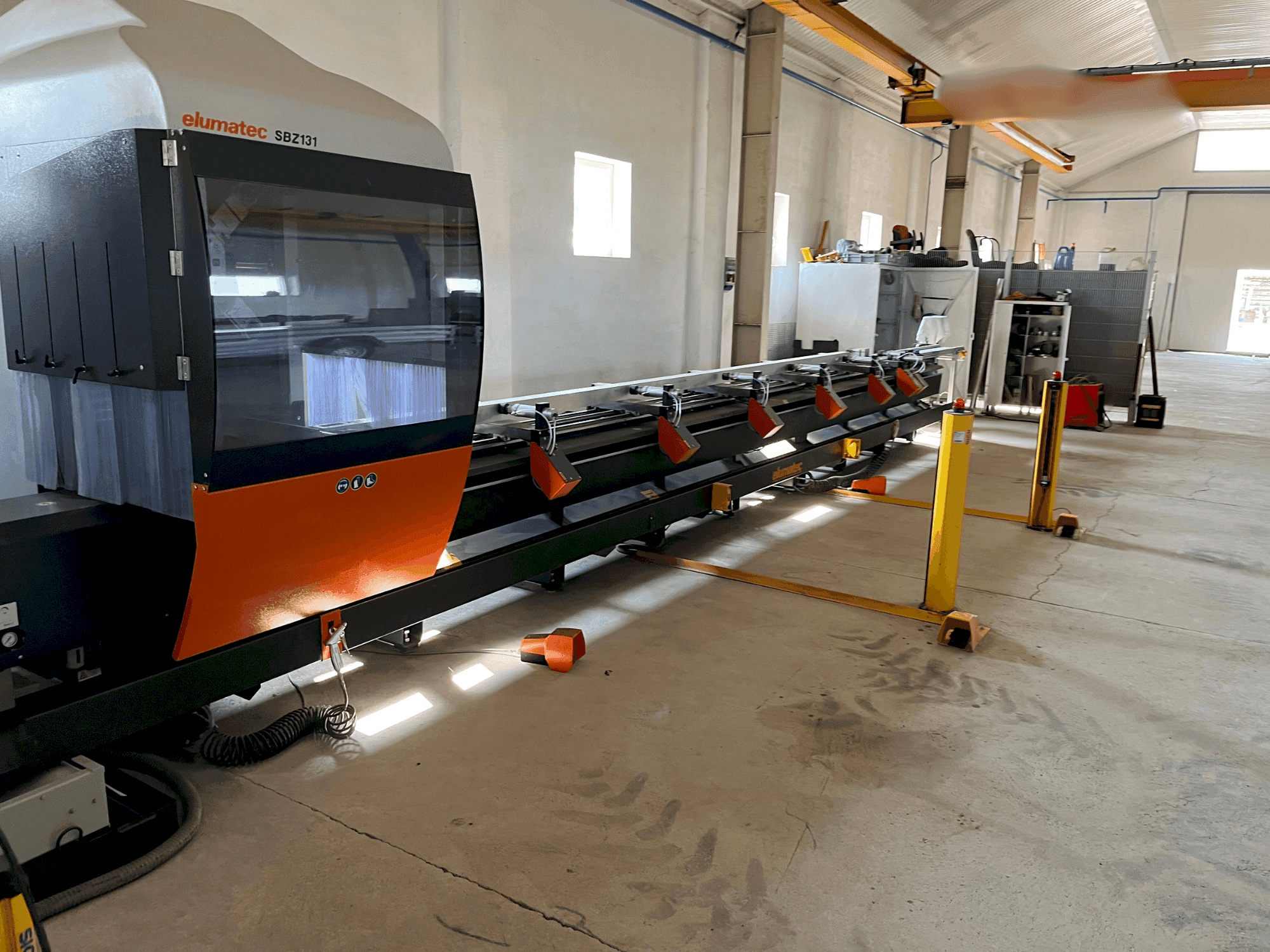

Elumatec - SBZ 131HU-SAW-ELU-2019-00001

Additional equipment

• 2 carbide saw blades for aluminum and plastic Diameter: 420 mm, number of teeth: 96
• Saw blade cooling equipment
• Small stop for the stationary head
• Profile lifting bars for the stationary and moving head
• Work piece support that can be moved on the machine bed
• Two cutting and oversize cutting software solution
• Software connection to production preparation program
• Pneumatic clamping unit, horizontal
• Roller track mounted on a moving head 1.5 meters, 300 mm wide

Machine Benefits

Qualitative Machine Benefits

• All adjustment options are cut to the outside size, eliminating the need for lengthy size calculations, which is a big advantage for special angles
• Due to the larger saw blade diameter, it is also suitable for cutting wider profiles
• Saw blades moving from the bottom up due to the optimal clamping and cutting force
• Automatically closing protective covers
• Electrical connection: 230/400 v, 3 phases, 50 hz
• Saw speed: 2,800 1/min

Technical Machine Benefits

• Dg 104 double miter saw 6. 0 m, with e580/1 electronics saw blade
• Cutting length: 6000
• Automatic length adjustment with positioning control
• Saw blade inclination 90 and 45° automatic pneumatic
• Positioning accuracy of +/-0. 1 mm/m
• Pneumatic fixation in the desired position
• Computer control windows operating system, 400 mhz - cpu, 128 mb ram, 1 gb flashdisk, 4 usb connection options, 3 rs 232 port connections, network connection rj45, 10/100 mbit, 8. 4" monitor foil keyboard and handwheel for moving around the operating system
• Possibility to connect to an external keyboard and mouse
• Air connection: 7 bar
• Air consumption per work cycle:saw without cooling: 40 l saw with cooling: 64 l

Extra Information

Machine still under power
