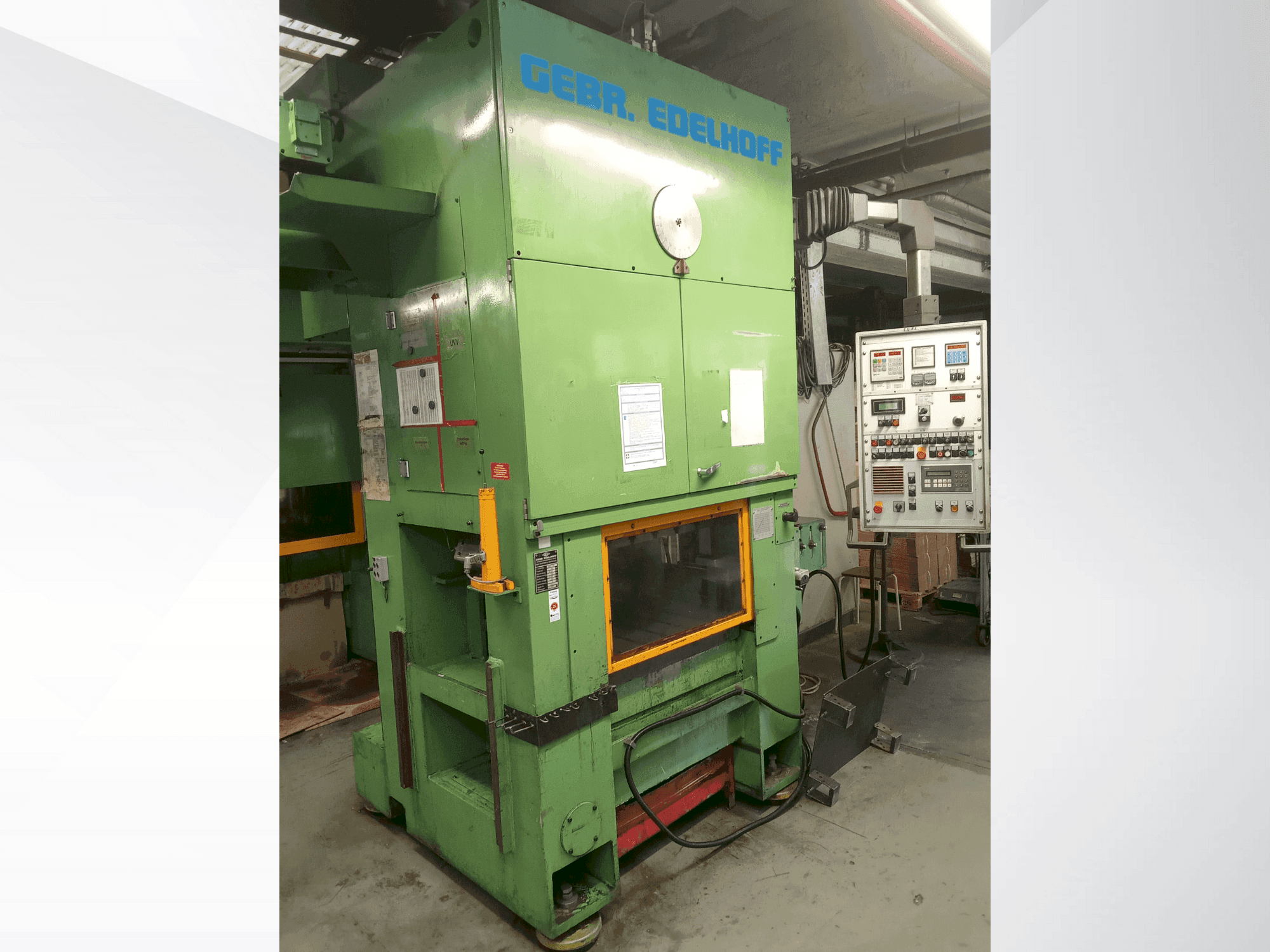

This EDELHOFF DARR 1/80 press was manufactured in 1995. It offers a pressing force of 800 kN with adjustable strokes ranging from 20-80mm and stroke rates from 30-200 per minute. The machine features a substantial table surface of 810x860mm and a maximum distance between table and ram of 450mm. It weighs 9.5 tonnes, suited for robust operations in sheet metal machinery. The EDELHOFF DARR 1/80 machine we have for sale. For more information about this press, please reach out to us.
Übersicht
- Hersteller: EDELHOFF
- jahr: 1995
- MODELL: DARR 1/80
- anwendungstyp: Räumen
- Standort: Deutschland
- maschinentyp: Vertikal-Räummaschine
Technische Daten - EDELHOFF DARR 1/80
Maße
- Maschinengewicht: 9500 kg
- Tischlänge: 810 mm
- Tischbreite: 860 mm
Zusätzliche Informationen
Machine Benefits
Technical Machine Benefits
- Stroke adjustment: 100mm
- Maximum distance between table and ram: 450mm
- Lateral body clearance: 500mm
- Table opening: 550x220mm
- Plunger surface: 810x700mm (width x depth)
- Frame width: 830mm
- Pivot hole in ram: 50mm diameter
- Lateral opening in the press body: 500mm
Extra Information
Machine still under power / There is no PIV controller installed, but a frequency converter
