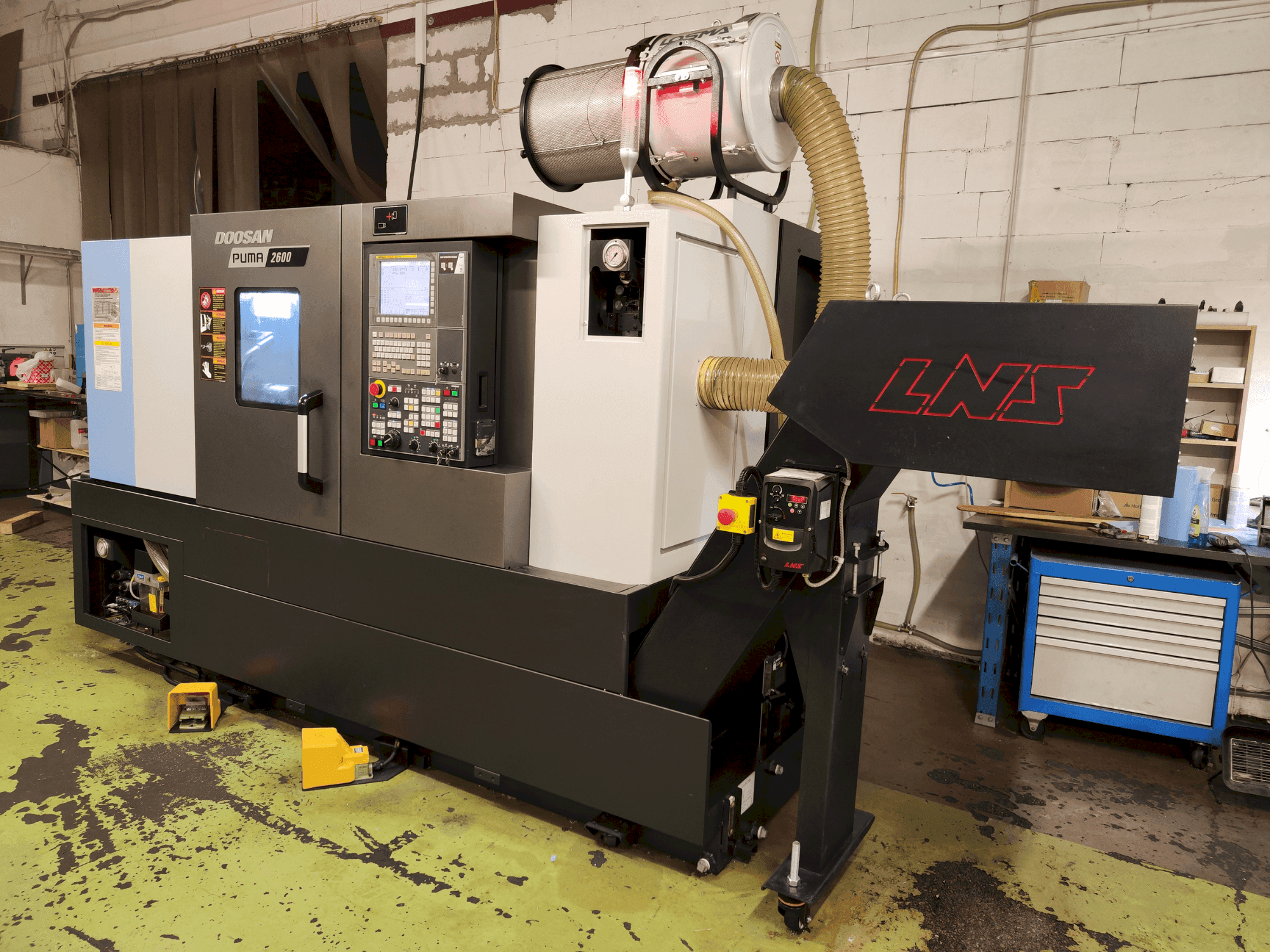

DOOSAN - Puma 2600/500LV-TUR-DOO-2018-00001

Swing over front door: 680 mm (26.8 in)

Swing over saddle: 630 mm (24.8 in)

Recommended turning diameter: 305 mm (12.0 in)

Maximum turning diameter: 481 mm (18.9 in) / 376 mm (14.8 in)

Maximum turning length: 755 mm (29.7 in) / 725 mm (28.5 in)

Bar working diameter: 102 mm (4.0 in)

Spindle nose: ASA A2-11

Spindle bearing diameter (Front): 160 mm (6.3 in)

Spindle through hole diameter: 115 mm (4.5 in)

Minimum spindle indexing angle (C-axis): 0.001°

OD tool size: 25 mm (1.0 in) {20 mm (0.8 in)*}

Boring bar diameter: 50 mm (2.0 in) {40 mm (1.6 in)*}

Turret indexing time (1st swivel): 0.15 s

Rotary tool spindle speed: 5000 rpm

Tailstock quill bore taper (live): MT#5

Compressed air supply: 100 mm (3.9 in)

Sub-spindle speed (Belt [Built-in]): 4500 rpm

Sub-spindle nose: ASA A2#5

Sub-spindle bearing diameter (Front): 90 mm (3.5 in)

Sub-spindle through hole diameter: 62 mm (2.4 in)

Sub-spindle minimum indexing angle (C-axis): 0.001°

Electric power supply (Rated capacity): 48.86 kVA
