DOOSAN - Lynx 2100MAPL-TUR-DOO-2017-00003
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- Doosan Lynx 2100MA Lathe

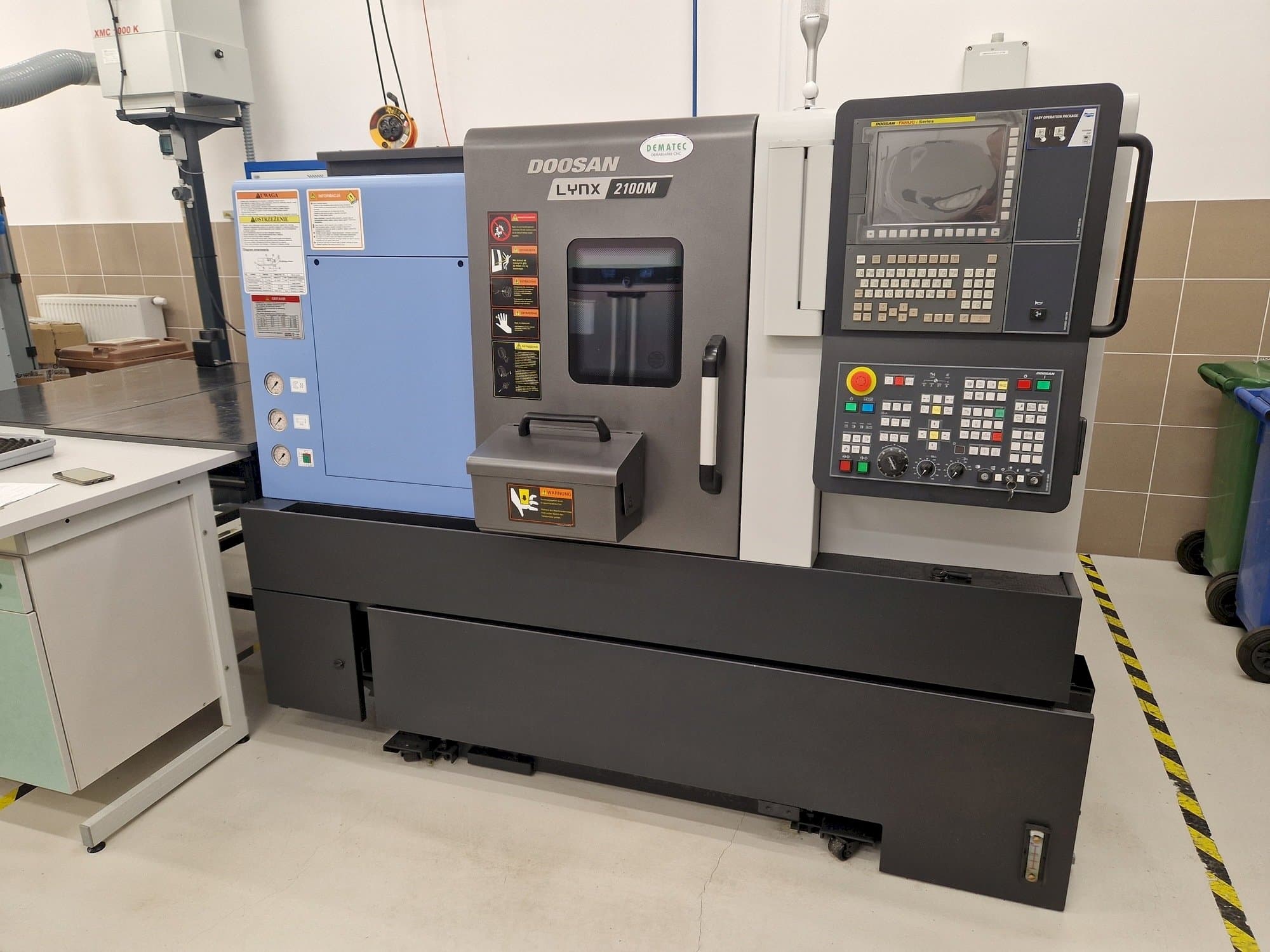

This Doosan Lynx 2100MA Lathe was built in the year 2017 and has 1188 power hours, of which 122 are production hours and 66 are spindle hours. It is equipped with a Fanuc Series control unit. The machine has a spindle speed of 6000 rpm and includes 12 pcs tool holders.
Übersicht
- Hersteller: DOOSAN
- jahr: 2017
- MODELL: Lynx 2100MA
- Produktionsstunden: 1188
- anwendungstyp: Drehen
- Standort: Polen
- maschinentyp: Horizontal-Drehmaschine
- Marke Steuergerät: FANUC
Technische Daten - DOOSAN Lynx 2100MA
Steuerung
- Steuerungsmarke: FANUC
- Steuerungsmodell: 0–iTF with 10.4’’ LCD
Maße
- Maschinentiefe: 1595 mm
- Maschinenhöhe: 1693 mm
- Maschinengewicht: 2750 kg
Bewegung
- X-Achsverfahrweg: 205 mm
- Z-Achsverfahrweg: 340 mm
Technische Spezifikation
- Spindeldrehzahl: 6000 RPM
Zusätzliche Informationen
Additional equipment
- 12 pcs tool holders
- Turret configuration: 4 pcs live tools, 8 pcs fixed tools
- EZ Guide: graphic interface for programing, Part catcher
- Rediness to work with a bar feeder and chip conveyor
- Pomp: 7 bar
- Programmable tailstock
- Box for chips
- Tools monitoring system
- Some accesories and tooling
- Docs: PL/EN
Machine Benefits
Qualitative Machine Benefits
- Diameter of passage over bed 600 mm
- Maximum turning diameter 300 mm
- Maximum length of turning 290 mm
- Permissible weight in chuck: 70 kg
- Rod diameter in spindle 51 mm
- Spindle holder: 170 mm, spindle type: a2#5 asa, spindle diameter (front/rear) (90/80) mm
- Spindle bore: 61 mm, spindle taper clearance: dia. 52 mm
- Spindle clearance: 52 mm, cylinder clearance: 52 mm, spindle drive motor power (continuous/30 min) 15/11 kw (s325%/15 min cont. )
- Maximum spindle torque: 127 nm
- Tool size: 20 x 20 mm, siła zacisku 48 kn, position tool change 1 position: 0. 15 s
Technical Machine Benefits
- Swing over bed: 600 mm
- Swing over saddle: 400 mm
- Recommended turning diameter: 170 mm
- Max. Turning diameter: 300 mm
- Max. Turning length: 290 mm
- Chuck size inch: 6’’
- Bar working diameter: 51 mm
- Servo motor: x axis 1. 8 kw, z axis 1,8 kw
- Max. Id tool size mm (inch) 40 (1. 6) 32 (1. 3)
- Turret indexing time s 0. 11 {0. 15}* 0. 11 max. Rotary tool speed
Extra Information
The machine is in perfect condition, newer used on a production, like a new. Full documentation available.
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
