DOOSAN - LYNX 2100LSYAGR-TUR-DOO-2020-00002
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- Used DOOSAN Lynx 2100LSYA - 2020 - Lathe for sale | gindumac.com

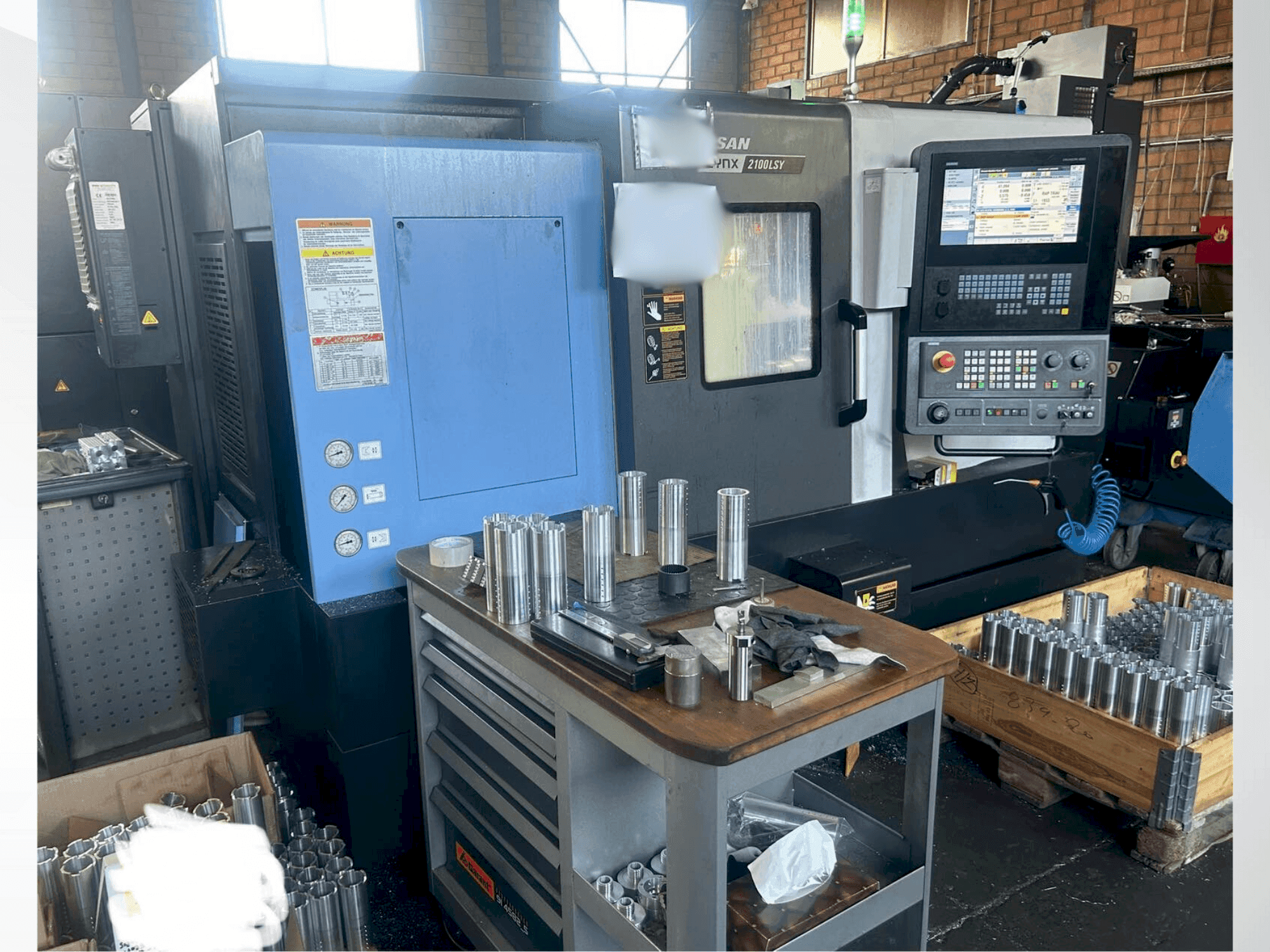

This 5-axis DOOSAN Lynx 2100LSYA lathe was manufactured in 2020. Featuring a SIEMENS SINUMERIK 828D control, it offers spindle speeds up to 6000 rpm and includes a sub-spindle for versatile operations. With a max turning diameter of 300 mm and length of 510 mm, it also has driven tools and rapid traverse rates up to 36 m/min. Consider this Doosan Lynx 2100LSYA lathe, ideal for advanced turning tasks. For more information, please reach out to us.
Übersicht
- Hersteller: DOOSAN
- jahr: 2020
- MODELL: LYNX 2100LSYA
- anwendungstyp: Drehen
- Standort: Griechenland
- maschinentyp: Dreh-Fräszentrum
- Marke Steuergerät: SIEMENS
Technische Daten - DOOSAN LYNX 2100LSYA
Steuerung
- Steuerungsmarke: SIEMENS
- Steuerungsmodell: SINUMERIK 828D
Bewegung
- X-Achsverfahrweg: 205 mm
- Y-Achsverfahrweg: 105 mm
- Z-Achsverfahrweg: 560 mm
Technische Spezifikation
- Spindeldrehzahl: 6000 RPM
Zusätzliche Informationen
Additional equipment
- OD and face tool holder of main spindle// Double OD and face tool holder of main and sub spindle
- ID tool holder of main spindle// Double ID tool holder of sub spindle
- Triple ID tool holder
- U-Drill cap of Main and sub spindle
- Straight (short) milling tool unit
- Anglular an Anglular (offset) milling tool unit
- Boring tool sleeves of main and sub spindle// U-drill sleeves
- Milling adapters
- SERVO 24ST turret (mechanism/station)
- BMT-45P 20/32 mm Holder mounting type tool size (turning/boring)
Machine Benefits
Qualitative Machine Benefits
- Dvanced control system ensures high precision and operational efficiency.
Technical Machine Benefits
- Maximum turning diameter: 300 mm
- Maximum turning length: 510 mm
- Sub-spindle
- Driven tools
- Counter spindle
- High-speed operations with multiple spindle configurations.
- Chucks of the main spindle has hard jaws and that of sub spindle has a set of soft jaws.
- Machine is also equiped with an extra module from siemens for in process tool measuring cycles for tool breakage detection.
Extra Information
Machine still under power
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
