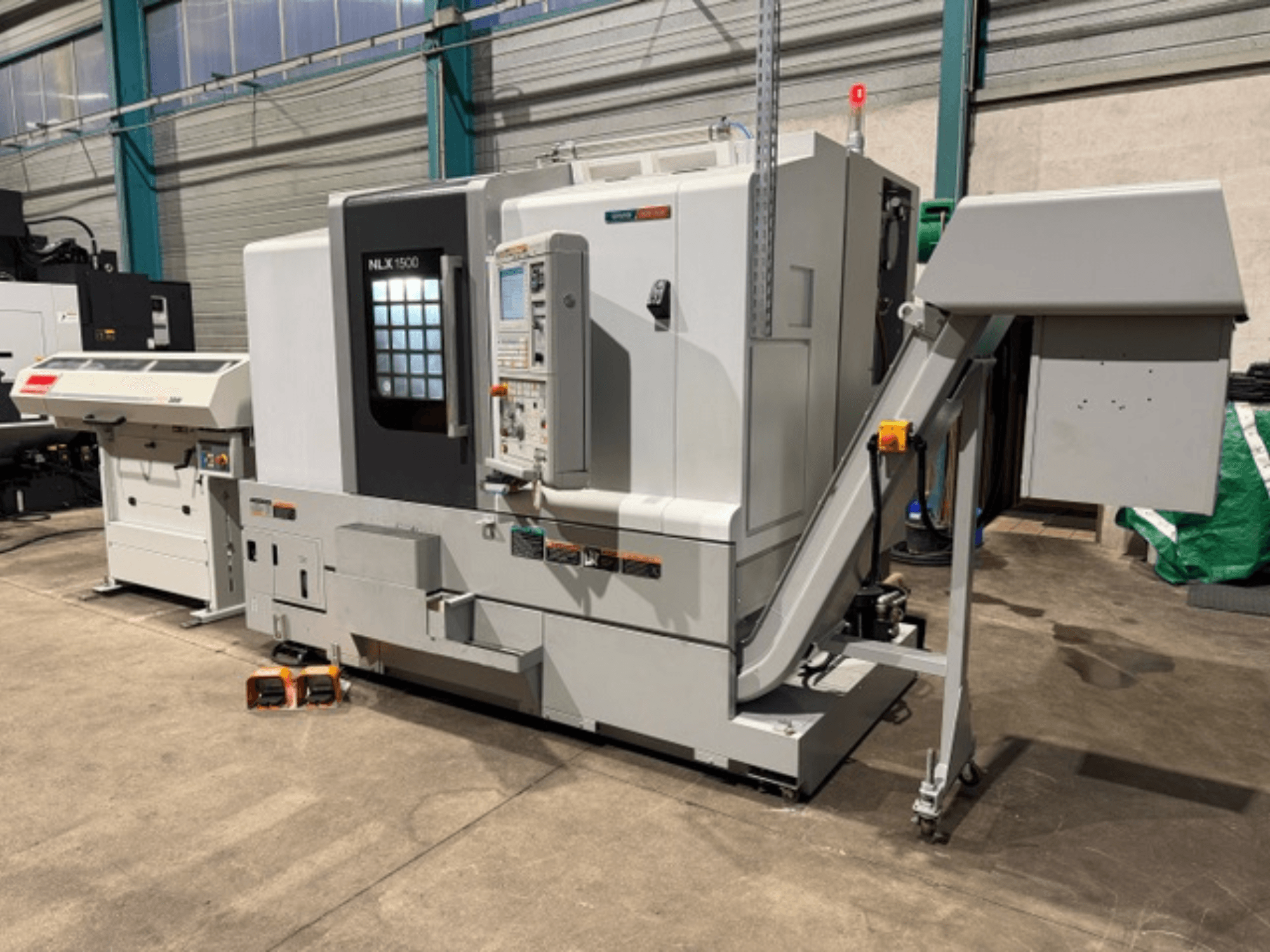

DMG Mori Seiki - NLX1500MC/500 FR-TUR-DMG-2014-00001

• Operating hours: 11,996

• Control: MAPPS M730BL

• Max. turning diameter without interference: 366 mm

• C-axis: 360,000°

• Turning length: 515 mm

• Spindle nose: A2-5"

• Spindle bore: 61 mm

• Bar capacity: Ø 52 mm

• Turret: 12 stations (all driven), indexing time 0.25 sec

• Driven tools: 6,000 rpm, 5.5 kW

• Tailstock: programmable (B-axis), stroke 564 mm

• Coolant pump

• Oil cooler

• Electronic handwheel

• 3-color status lamp

• Air-conditioned electrical cabinet

• Condition/availability: machine in perfect condition; excellent appearance; very good condition; videos available; immediately available

Additional equipment

• Chip conveyor

• Bar feeder interface

• Bar feeder: SAMSYS MULTI-3000 (short bar, 1000 mm)

• Hydraulic chuck: KITAGAWA BB208, Ø 165 mm

• Collet chuck: HAINBUCH COMBI TOPlus size 65

• HAINBUCH collets: Ø 6.5 – 10 – 16 – 18 – 20 – 25 – 26 – 30 – 40 mm

• Square collets: 20×20 – 35×35 – 40×40 mm

• Hex collet: 14 mm

• Tool measuring probe arm

• 7 driven toolholders (3 axial, 4 radial)

• 15 static toolholders

• Parts catcher

• Automatic door opening/closing

• Isolation transformer

• Documentation & CD-ROM

• Transport and handling clamping brackets
