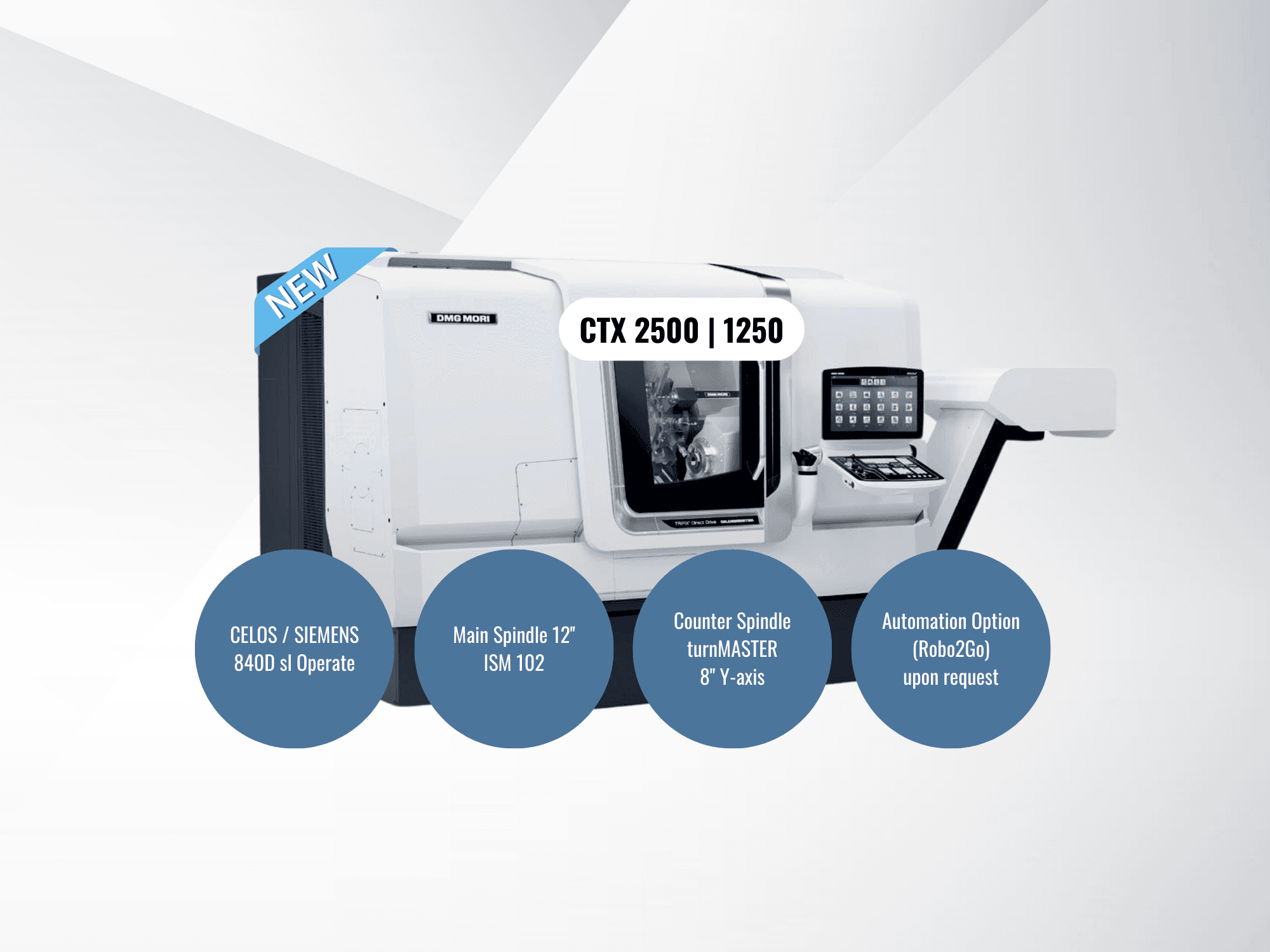

DMG MORI - CTX 2500/1250DE-TUR-DMG-2023-00001

Additional equipment

• Chip conveyor hinged type
• BFU 8/80 bar frequency controlled 980l cooler
• Mechanical oil mist extractor 1100m³/h
• Tool measuring device for main spindle manuel, diameter 400 // Measuring System for Y-axis & for Z-axis
• Signal lamp 4-fold coloured
• proTIME
• Enlarged container for sideway oil 6l
• Fixing elements
• Lubricating unit with electric level monitoring
• Tool holder package Quickchange VDI40, star, WTO

Machine Benefits

Technical Machine Benefits

• Main spindle 12 inch ism 102 // counter spindle turnmaster 8 inch y-axis
• Dynamic two-pressure clamp, at the control main spindle & counter spindle
• 3-jaw chuck kncs-n 400-128 make smvv // set base jaws 3 pieces 0 250/260 // set base jaws 3 pieces 9 400 // 3-jaw chuck kncs-n 225-68 make smvv
• Tailstock function for counter spindle
• Steady rest slide automatically positionable // quick change system for steady rest // steady rest carrier for steady rest 25-180mm // steady rest smvv k2 clamping range 25-180 mm
• Double cartridge filter upper turret // filter element for double cartridge liner
• Coolant supply through the main spindle & counter spindle // coolant/compressed air switchable on spindle(s) & on tool carrier // coolant spray gun
• Minimess test point couplings for hydraulic - hydraulic filter with monitoring and pre warning - hydraulic oil ievel and temperature monitoring

Extra Information

Window rinsing or the security windows - Automatic door electrical // Electrical interface for Robo2Go // Package for tropical climate // Package for instable supply // Measure mm // Additional 8 free M-commands // Easy Tool Monitor 2.0 // DXF Reader for Siemens // Excentric turning and milling operation // Tooth system milling via gear hobbing // Alternating speed // Polygon Turning // Multi-thread cycle 2.0 // Broaching // Y-Axis Parting // autoCHUCK
