Vielen Dank für Ihren Besuch
Diese Maschine wurde kürzlich verkauft. Schauen Sie sich gerne unsere vergleichbaren Maschinen an oder kontaktieren Sie uns direkt.

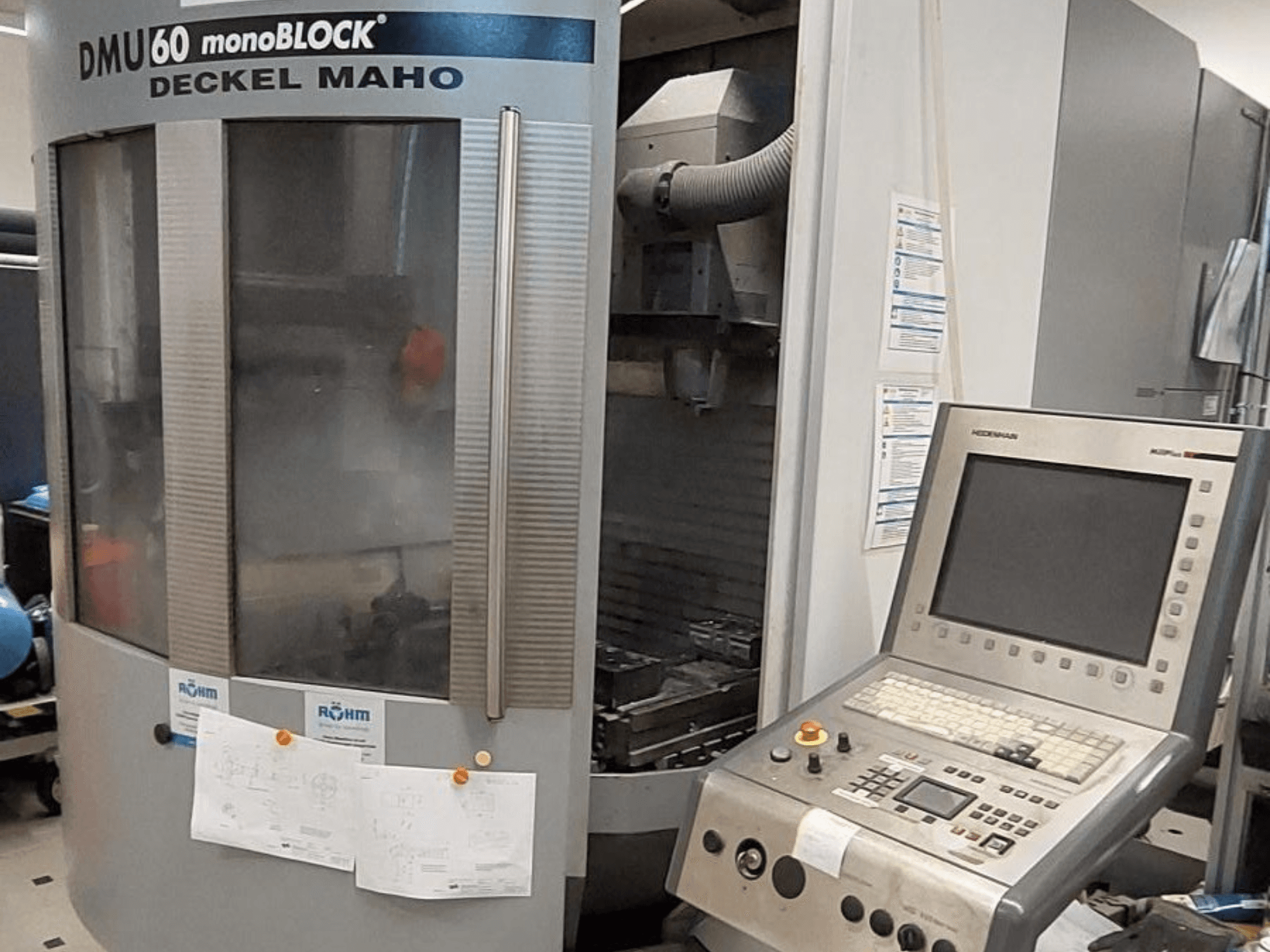

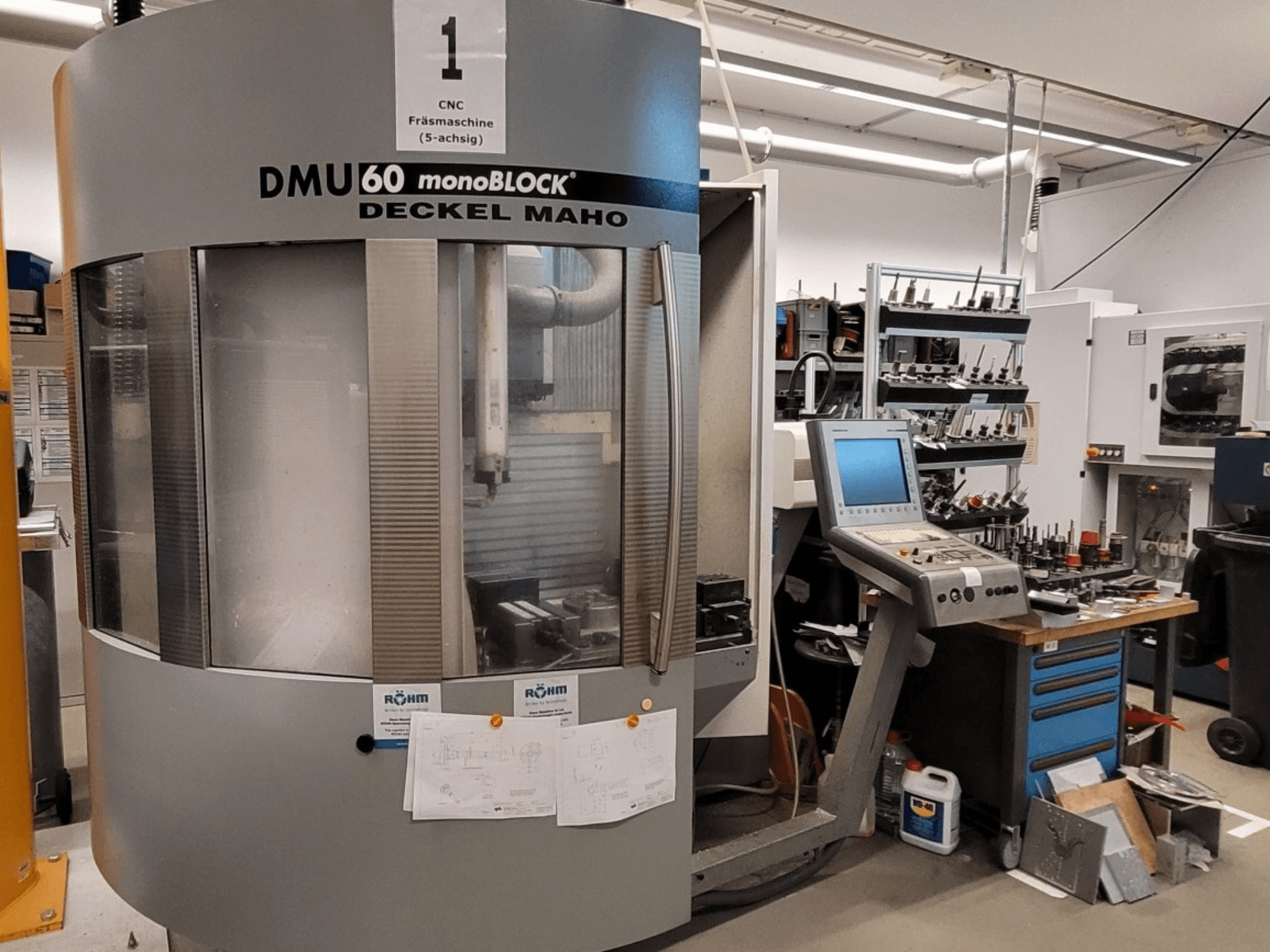

DMG DECKEL MAHO - DMU 60 monoBlockDE-MIL-DMG-2005-00007
Haben Sie weitere Fragen? Kontaktieren Sie uns!

Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used DMG DMU 60 Machining Center For Sale | gindumac.com
This 5-axis DMG DMU 60 was manufactured in 2005. It features a B-axis and rotary table attachment, 3D probe, and MillPlus IT CNC control system. With 5873 operating hours and 1397 spindle hours, it also includes a minimum quantity lubrication system. If you are looking to get high-quality milling capabilities, consider the DMG DMU 60 machine we have for sale. Contact us for more information about this machine.
Übersicht
- Hersteller: DMG DECKEL MAHO
- jahr: 2005
- MODELL: DMU 60 monoBlock
- Produktionsstunden: 5873
- anwendungstyp: Fräsen
- Standort: Deutschland
- maschinentyp: Vertikal-Bearbeitungszentrum
- Marke Steuergerät: HEIDENHAIN
Technische Daten - DMG DECKEL MAHO DMU 60 monoBlock
Steuerung
- Steuerungsmarke: HEIDENHAIN
Maße
- Maschinenhöhe: 2210 mm
- Maschinenlänge: 3500 mm
- Maschinengewicht: 7500 kg
- Tischbelastung: 4600 kg
Bewegung
- Anzahl der Achsen: 5
Zusätzliche Informationen
Axis configuration: 5-axis, 3/2 with B-axis
CNC control: MillPlus IT (Heidenhain successor Philips 532 DIN)
Operating hours: 5,873
Spindle hours: 1,397
Additional equipment
Rotary table attachment
3D probe
Minimum quantity lubrication system
Media distributor
Nozzle body (optional)
AC servomotors with digital technology for X, Y, and Z axesFlow rate X, Y, and Z axes infinitely programmable mm/min 20 - 10,000
Rapid traverse X and Y axes m/min 26
Z axis m/min 20
Setup speed X, Y, and Z axes mm/min 20-2,000
Distance measuring system
Resolution X, Y, and Z axes 0.001 mm
Input precision X, Y, and Z axes 0.001 mm
Position tolerance X, Y, and Z axes 0.010 mm
Working range
Travel
X axis 630 mm
Y axis 560 mm
Z axis 560 mm
Machine with fixed table and tool changer approx. 6,500 kg
Machine with maximum weight capacity for workpiece, tools, and operating fluids, coolant system: 7500 kg.
Maximum load capacity at the machine base: 4600 kg
Machine supports: Number x Type: 3 x GP37+TK 8
Transport weight
Machine with transport platform: approx. 6700 kg
Machine with crate: approx. 7000 kg
Transport dimensions approx. (L x W x H): 3.50 m x 2.70 m x 2.21 m
Pick-up by 12 December 2025 at the latest
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
