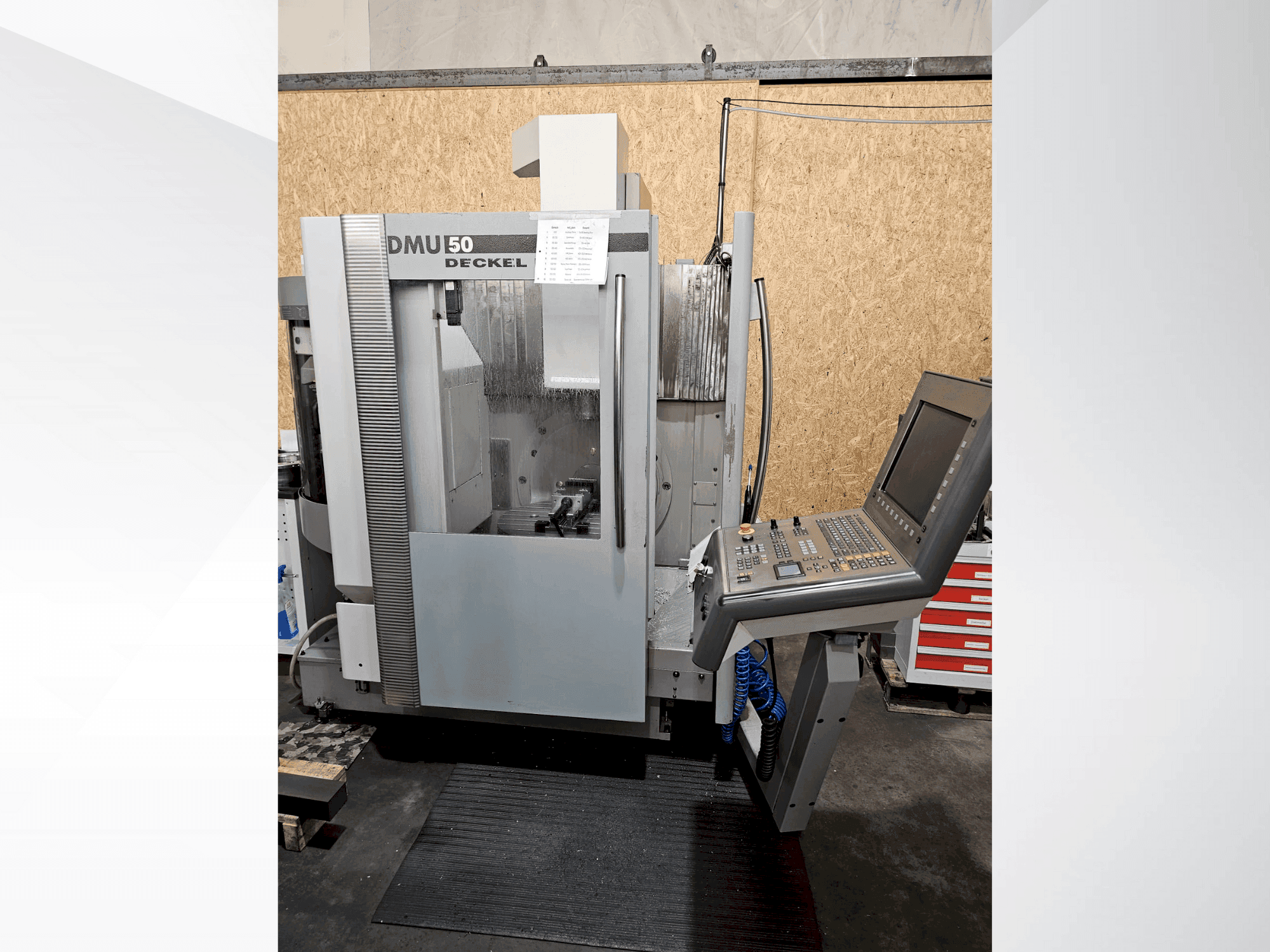

This 5-axis DMG DECKEL MAHO DMU 50 vertical machining centre was manufactured in 2005. It features a Heidenhain iTNC 530 control, a main spindle speed range of 20 - 10,000 RPM, and a rotary table with a clamping surface of 630 x 500 mm. The machine has undergone significant overhauls, including a complete X-Axis bearing replacement and new coolant pump installation. If you are looking to get high-quality milling capabilities, consider the DMG DECKEL MAHO DMU 50 machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: DMG DECKEL MAHO
- jahr: 2005
- MODELL: DMU 50
- anwendungstyp: Fräsen
- Standort: Deutschland
- maschinentyp: Vertikal-Bearbeitungszentrum
- Marke Steuergerät: HEIDENHAIN
Technische Daten - DMG DECKEL MAHO DMU 50
Steuerung
- Steuerungsmarke: HEIDENHAIN
- Steuerungsmodell: iTNC 530
Maße
- Maschinengewicht: 3600 kg
Bewegung
- Anzahl der Achsen: 5
- X-Achsverfahrweg: 500 mm
- Y-Achsverfahrweg: 450 mm
- Z-Achsverfahrweg: 400 mm
Technische Spezifikation
- Spindelleistung: 9 kW
- Spindeldrehzahl: 10000 RPM
- Werkzeugaufnahme: SK 40
Zusätzliche Informationen
Additional equipment
- Tool Positions: 16 / Max. Tool Weight: 6 kg / Max. Tool Length: 300 mm
- Max. Tool Diameter: Without adjacent tools: 130 mm / With adjacent tools: 80 mm
- Total Power Requirement: 17 kVA
- No chip conveyor included / No automatic measuring probe included / No tools included
Machine Benefits
Qualitative Machine Benefits
- Low spindle hours and power-on hours.
- Never used in series production; operated with care and proper procedures.
- Warm-up programs and maintenance routines followed for optimal performance.
Technical Machine Benefits
- Torque: 57 / 82 nm / rapid traverse (x/y/z): 12 m/min /feed rate: 10000 mm/min
- Table clamping surface: 630 x 500 mm
- Swivel range: -5 / +110°
- Max. Table load: 200 kg
- T-slots: 14 h7 / t-slot spacing: 63 mm
- C-axis rotation: +/- 360°
- Complete x-axis bearing overhaul including ball screw and bearing assembly. / various hydraulic components overhauled. / tool changer readjusted and sensor system replaced.
- New door switch installed. / new discs installed (with some chip debris affecting them). / new coolant pump installed. / new screen installed. / new handwheel hr410 installed.
- Machine is 5-axis machine with 3+2 configuration
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
